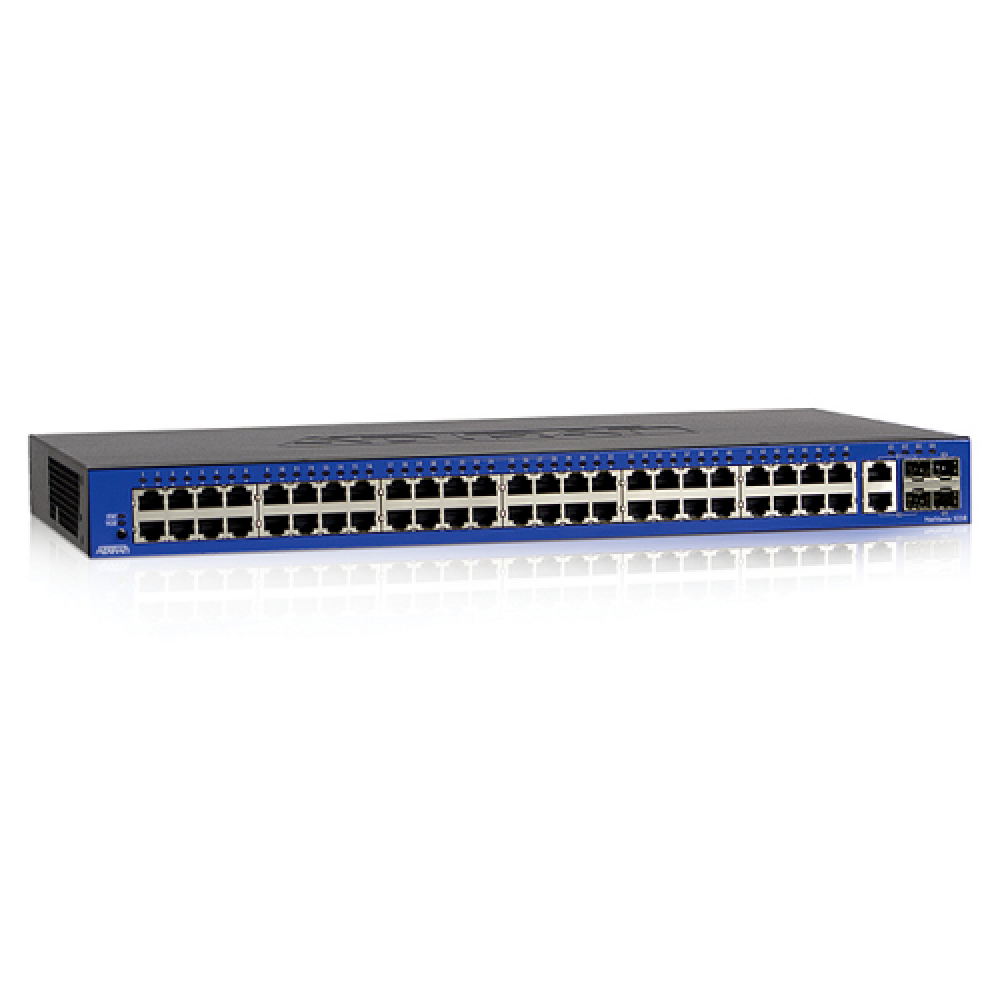

Adtran NetVanta 1238 48Port Managed Gigabit Switch 2nd Gen

Be the first to review this product

  • Adtran NetVanta 1238 1702598G1 Adtran NetVanta 1238 1702598G1
  • 1702598G1 back 1702598G1 back

Availability: In stock

Your Price: $719.99
Your Price: $719.99
Options
The NetVanta 1238 (1702598G1) is a fully managed 48-port Layer 3 Lite Ethernet switch designed for cost-effective Ethernet switching. This scalable, full-featured product is suitable for networks requiring Layer 2 switching for interconnecting LAN devices or network segmentation. Ideal for new installations, network upgrades, or protecting the organization with advanced security capabilities, these switches are perfect for business-class applications requiring Fast Ethernet. Read More
Product Details
Manufacturer:
Adtran
Model:
1702598G1
SKU:
02-116888
Warranty:
Limited Lifetime Warranty
MSRP Price:
$995.00
% Off:
27%

ADTRAN NetVanta 1238 Gen 2

The NetVanta 1238 1702598G1 is a fully managed Layer 3 Lite Ethernet switch designed for cost-effective Ethernet switching. This scalable, full-featured product is suitable for networks requiring Layer 2 switching for interconnecting LAN devices or network segmentation. Ideal for new installations, network upgrades, or protecting the organization with advanced security capabilities, these switches are perfect for business-class applications requiring Fast Ethernet.

ADTRAN NetVanta 1238 Gen 2 Overview:

The ADTRAN NetVanta 1238 rackmount switches support 48 10/100Base-T Ethernet ports with auto-rate, auto-duplexing and MDI/MDI-X sensing. In addition, each switch supports two 1.0 Gbps shared Small Form-factor Pluggable (SFP) or copper ports, and two 2.5 Gbps enhanced SFP ports. Together the four uplink ports can provide up to 14 Gbps of bandwidth between interconnected NetVanta 1238 switches.

The NetVanta 1230 Series switches support advanced multi-layer (Layer 2 and Layer 3 Lite) switching with up to 32 static routes allowing it to easily scale from SMBs to enterprise-size networks.

ADTRAN NetVanta 1238 Gen 2 Features:

  • 48-port auto-sensing 10/100Base-T managed Layer 2 Ethernet switch
  • Two standard 1GBps (shared copper and SFP) ports and Two enhanced 2.5 Gbps SFP ports
  • Non-blocking, up to 23.6 Gbps switching capacity
  • Line rate Layer 2 and Layer 3 Lite capabilities
  • Up to 32 static routes
  • 802.1Q tagged and port-based Virtual LANS (VLANs)
  • Support for up to 255 active vVLANs
  • 802.1p and DiffServ prioritization with 4 queues per egress port
  • Link aggregation, LLDP and LLDP-MED
  • Weighted Round Robin (WRR) and WRR + expedite
  • 802.1D Spanning Tree and 802.1w Rapid Spanning Tree support
  • DHCP network forensics
  • Business-class security with RADIUS, TACACS+, 802.1x and port security
  • Port mirroring
  • TFTP/FTP firmware upgrades
  • Broadcast, Unicast, and Multicast storm control
  • Wi-Fi Access Controller for centralized management of NetVanta Wireless Access Points
  • Cable diagnostics identifies cable length and detects shorts or open twisted pair
  • Familiar CLI and Web GUI
  • Limited Lifetime Warranty

Manufacturer
Adtran
Model
NetVanta 1238
# of Ethernet Ports
48
# of SFP Fiber Uplink Ports
2
Ethernet Port Speeds
10/100
Provisioning Options
Console CLI, FTP Auto Software Updates, SNMP, TFTP Auto Software Updates, Web GUI
Mounting Option
Rackmount
POE 802.3af Support
No
Power
Power Supply Included
VLAN / QOS Support
Yes
Peripheral Ports
10 GE SFP Modular Bays
Redundant Power Supply Option
No
Adtran NetVanta 1238 1702598G1

Joe Shanahan

Direct: 866-583-0920
Blog

Why Pay $719.99 for the Adtran NetVanta 1238 48Port Managed Gigabit Switch 2nd Gen?

  • Low cost, fully managed, 48-port Layer 3 Lite Ethernet switch

  • Standards-based for ease of interoperability

  • Recognizable Command Line Interface (CLI) to reduce learning curve
