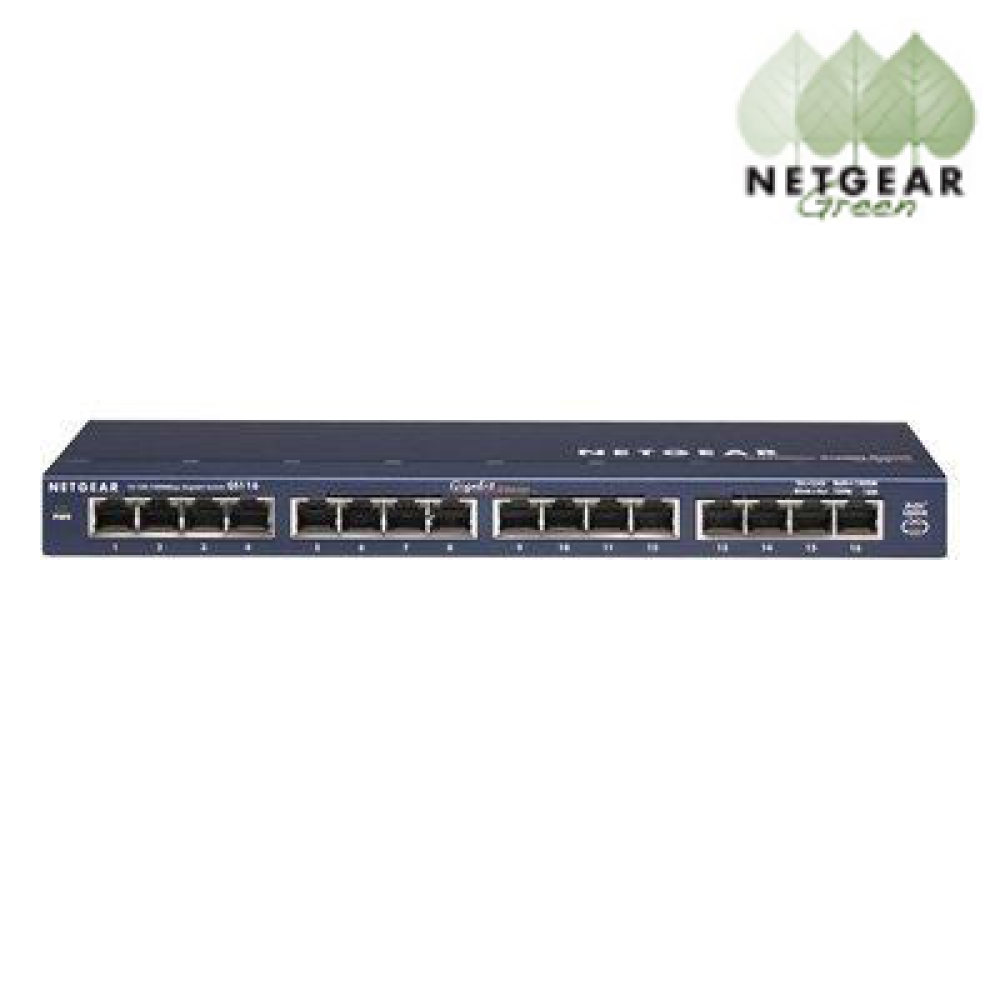

Netgear GS116 ProSafe 16 Port Unmanaged Desktop Switch

Be the first to review this product

  • GS116 Green GS116 Green

Availability: In stock

Your Price: $149.99
Your Price: $149.99
Options
The Netgear GS116NA is an unmanaged 16-port Gigabit 10/100/1000 Desktop switch that provides a powerful, high speed network on a small scale. The GS116 lets you build a system that gives full dedicated 1000 Mbps connections, suitable for instantaneously moving large files across the network. This standards-based switch allows you to integrate your existing or future VoIP infrastructure with 10, 100, and 1000 Mbps devices. Read More
Product Details
Manufacturer:
Netgear
Model:
GS116NA
UPC:
606449034998
SKU:
02-101455
MSRP Price:
$163.72
% Off:
8%

Netgear GS116NA ProSafe 16-Port 10/100/1000 Switch

The Netgear GS116NA is an unmanaged 16-port Gigabit 10/100/1000 Desktop switch that provides a powerful, high speed network on a small scale. The GS116 lets you build a system that gives full dedicated 1000 Mbps connections, suitable for instantaneously moving large files across the network. This standards-based switch allows you to integrate your existing or future VoIP infrastructure with 10, 100, and 1000 Mbps devices.

Netgear GS116NA ProSafe 16 Port Gigabit Desktop Switch Overview

The GS116 is perfect for workgroups or for upgrading workstations to Gigabit speeds. It has a compact, and fan-less, unobstrusive design. This switch features 10/100/1000 auto switching Mbps Ethernet connections, and the copper Gigabit Ethernet offers up to 2000 Mbps on each port. This switch is also versatile enough to honor Layer 2 802.1p and Layer 3 DSCP traffic priority tags. The size of the GS116 is convinient for both desktop and wall mounting, and it has a fanless design for silent operation.

Netgear GS116 Features and Specifications:

Network Ports

  • 16 auto-sensing 10/100/1000 Mbps UTP ports

Forwarding Mode

  • Store-and-forward

Performance

  • Bandwidth: 32 Gbps (non-blocking)
  • Forward rate (10 Mbps port): 14,800 packets/sec
  • Forward rate (100 Mbps port): 148,000 packets/sec
  • Forward rate (1000 Mbps port): 1,488,000 packets/sec
  • Latency (100 to 100 Mbps): 40 µ (max)
  • Latency (1000 to 1000 Mbps): 10 µ (max)
  • Queue buffer memory: 512 Kbytes per port
  • MAC address database: 8,000
  • Acoustic noise: 0 dB
  • Heat dissipation: 38.8 Btu/hr
  • Mean time between failures (MTBF): 393,000 hours (~45 years)

Power Consumption

  • 12V DC, 1.5A, 18W; plug is localized to country of sale

Status LEDs

  • Power, link, speed and activity

Electromagnetic Compliance

  • CE Class A
  • FCC Part 15 Class A
  • EN 55022 (CISPR 22)
  • EN 55024
  • VCCI Class A
  • C-Tick Class A

Standards Compliance

  • IEEE 802.3i 10BASE-T Ethernet
  • IEEE 802.3u 100BASE-TX Fast Ethernet
  • IEEE 802.3ab 1000BASE-T Gigabit Ethernet
  • Honors 802.1p priority tags
  • Honors DSCP priority tags
  • Jumbo frame support: up to 16 KB

System Requirements

  • Category 5e cables or better
  • Network card for each PC or server (e.g. NETGEAR GA311)
  • Network software (e.g., Microsoft® Windows®, Linux®, Mac® OS)

ProSupport™ Service Packs Available

OnCall 24x7

  • PMB0331-100 (US)
  • PMB0331 (non-US)

XPressHW

  • PRR0331

Package Contents

    • ProSafe 16-port Gigabit Desktop Switch (GS116v2)
    • Wall-mount kit
    • AC adapter
    • Installation guide
    • Warranty/support information card

Didn't find the Networking Equipment you were looking for?

Check out these other Netgear switches:

Manufacturer
Netgear
Model
ProSafe GS116NA
# of Ethernet Ports
16
Ethernet Port Speeds
10/100/1000 Gigabit
Mounting Option
Wallmount
POE 802.3af Support
No
Power
Power Supply Included
GS116 Green

Michael Rehac

Direct: 716-213-6898

Why Pay $149.99 for the Netgear GS116 ProSafe 16 Port Unmanaged Desktop Switch?

  • 16 high-speed, auto-sensing 10/100/1000 Mbps Ethernet connections

  • Integrates 10, 100, & 1000 Mbps devices within a network

  • Silently delivers up to 2000 Mbps on each port
