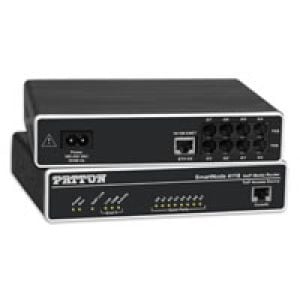

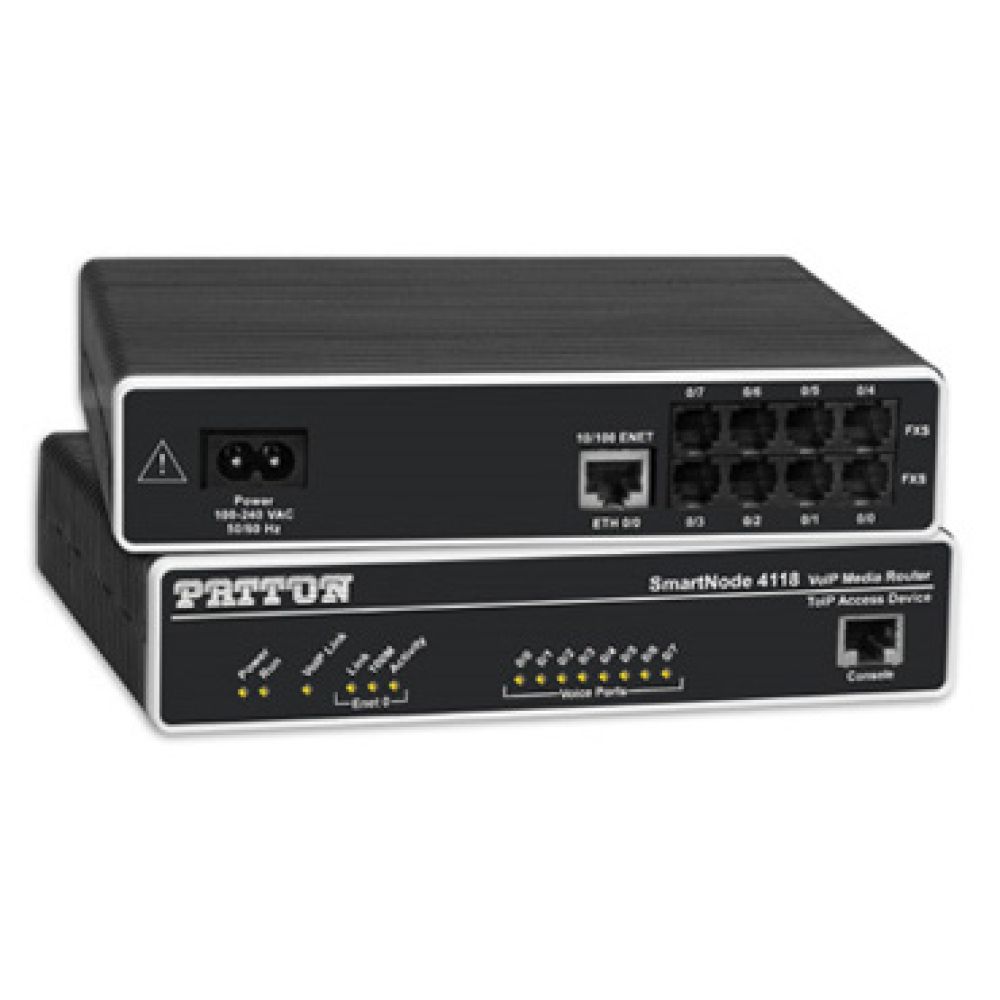

Patton SN4118 8-FXS VoIP Gateway SN4118/JS/EUI (Discontinued)

Patton Smartnode 4118 8-FXS Gateway

The Patton SN4118/JS/EUI VoIP Gateway features 8-FXS ports that support up to eight analog devices. Connect analog phones or fax machines for voice and fax over any IP network. Now the corporate, small, or remote office can access Internet telephony services, eliminate toll charges and route calls to and from the PSTN, Internet, or LAN.

Patton SN4118 8 FXS Gateway Product Overview

The SmartNode 4110 Patton Gateway supports up to eight transparent phone calls while leveraging VoIP for lower-cost carrier and corporate access. Connecting to any analog phone, fax, or PBX, the SN4110 is an effective and flexible solution for toll-bypass, remote/branch office voice connectivity, and enhanced carrier services.

The SN4110 series is the perfect choice for phone-to-IP connectivity supporting up to 8 FXS ports or a combination of 4 FXS and 2 or 4 FXO ports. This model, the SN4118/JS/EUI, has only 8 FXS ports. With its FXS analog ports the SN4110 connects to any legacy telephone or PBX and provides dial-tone, ringing, and caller-ID. When equipped with FXO ports, the local PSTN can be accessed enabling local calling and enhanced toll-bypass applications while using a single connected telephone. Flexible call integration allows per-port telephone numbers, programmable call progress tones, and distinctive ringing. With Telephony-over-IP ToIP call switching, calls can automatically select the least-cost-route while providing flexible numbering plans and end-to-end feature transparency. PPPoE, DHCP, and VLAN offers universal IP connectivity and optional IPSEC VPN with AES/3DES guarantees secure voice over the public network.

Patton's SmartNode 4110 delivers the legacy phone interfaces, service transparency, and flexible PSTN integration for true converged packet voice.

• 10/100 Full-Duplex Auto-Sensing Auto-MDX Ethernet port
• 14 LEDs for System, Ethernet, and Call status
• Universal 100-240VAC contact us for 48VDC Power
• Configuration and Management through Webinterface, CLI, Telnet, Console and SNMP
• Up to 8 Voice and FAX Calls over IP Support-Use any CODEC or T.38 FAX on any port, any time
• 8 FXS ports connect to your standard telephone with programmable tones, ringing, CLIP etc.
• Programmable call routing switches between any FXS, FXO and IP connection.
• Toll Quality CODECs and T.38 FAX-Use standard G.711 or G.726 Codecs for toll-quality or G.723.1 or G.728ab for low-bandwidth applications. T.38 FAX and FAX Bypass features allow high-quality FoIP.
• H.323v4, SIP Signaling-Deploy into any enterprise or carrier softswitch network with the leading call and session signalling protocols. Maximize Interoperability to create advanced multimedia and messaging services.
