Patton SN4312 12 FXO Gateway SN4312/JO/UI

Be the first to review this product

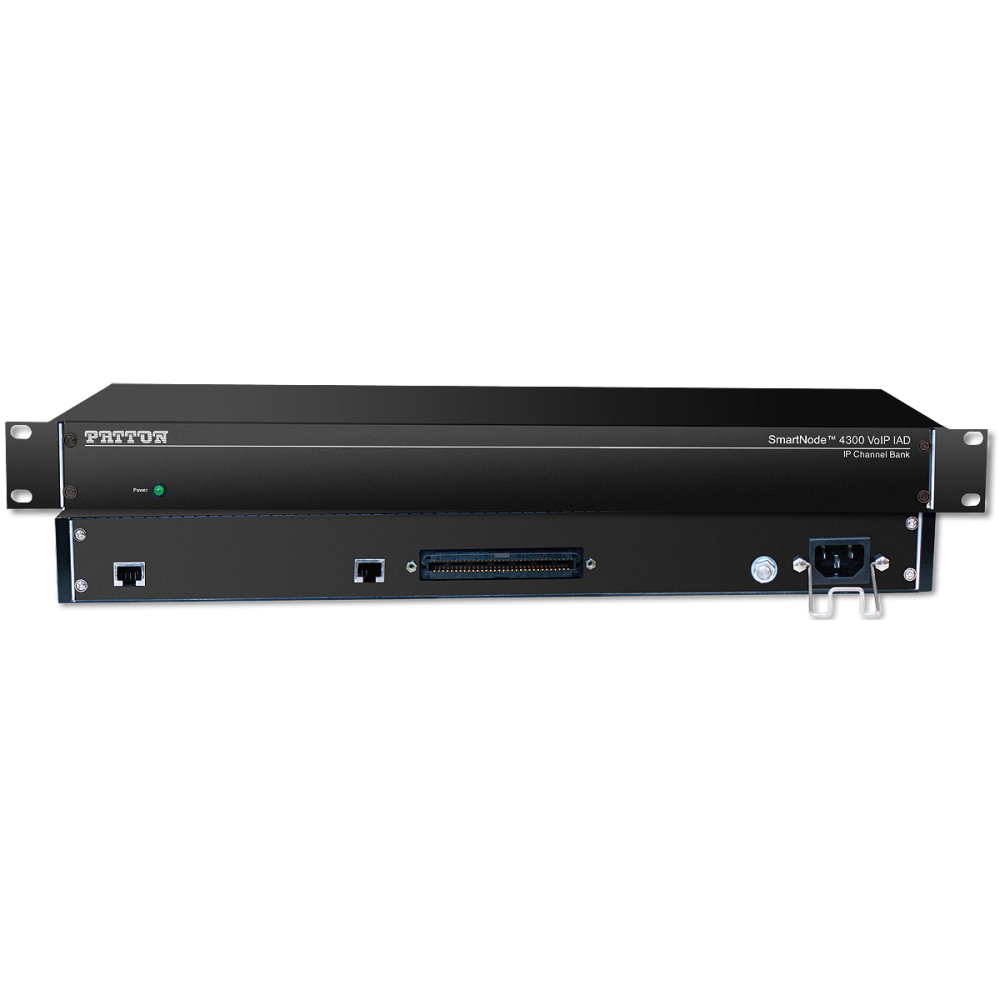

  • Patton 4312 Gateway Patton 4312 Gateway

Availability: In stock

Your Price: $1,189.00
Add To Cart For A Better Price!
Your Price: $1,189.00
Add To Cart For A Better Price!
Options
The Patton SN4312 is a 12-port FXO gateway that allows you to connect your VoIP phone system to up to 12 PSTN lines for local phone access or failover. Read More
Product Details
Manufacturer:
Patton
Model:
SN4312/JO/UI
UPC:
847840008458
SKU:
02-114293
Warranty:
1 Year
MSRP Price:
$969.00

Patton SN4312 12 FXO Gateway

The Patton SN4312 is a 12-port FXO gateway that allows you to connect your VoIP phone system to up to 12 PSTN lines for local phone access or failover. The SN4312 has an RJ21 Telco connection so you need to use this gateway with an amphenol cable.

Patton SN4312 Overview

The SmartNode 4300 Series IpChannel Bank is the perfect business solution for applications requiring up to 32 concurrent analog voice/fax calls. Patton gateways transform any PBX system, analog call-center application, or ISP MDU service into a state-of-the-art packet-voice system without requiring costly equipment replacement or upgrades.

There are several models in the Patton 4300 series—ranging from up to 32 FXS or FXO ports. The SN4300 gateway supports key industry-standard VoIP signaling protocols such as SIP, H.323, and T.38 Fax Relay—plus fax-bypass and modem-bypass. This ensures interoperability with the leading soft switches and VoIP services.

Patton SN4312 Features:

  • - 12 FXO ports presented on an RJ21 connection
  • - DownStreamQoS™ , IEEE 802.1p, TOS, DiffServ labeling, IEEE 802.1Q, VLAN tag insertion/deletion (4096 VLAN IDs, multiple VLAN support)
  • - Web/HTTP, CLI with local console and remote Telnet access, TFTP configuration & firmware loading, SNMP MIB II and product MIB, Secure auto-provisioning for both firmware and unit/subscriber configuration, Built-in diagnostic tools (trace, debug, call generator)
  • - 2-wire Loopstart on 50pin (12 to 24 channels) Telco connector
  • - Programmable impedance, ring detection, tone detection, disconnect supervision
  • - Caller ID detection
  • - SIPv2 H.323v4 (simultaneously with B2BUA capability)
  • - SIP call transfer, redirect
  • - DTMF in-band & out-of-band
  • - 19in rackmountable chassis

Manufacturer
Patton
Model
SN4312/JO/UI
# of FXO Ports
12
Connection Types
RJ-21 50 Pin Amphenol, **Amphenol Cable Required**
# of Ethernet Ports
1
Protocols Supported
SIP, H.323
Voice Codec Support
G.711 u/a law, G.723, G.726, G.729 a/b
Fax Support
T.38, G.711 pass thru
Provisioning Options
Auto Provisioning, Console CLI, FTP, HTTP, SNMP, Web GUI
Mounting Option
Rackmount
Power
Power Supply Included
Modular Slots
No
PSTN Signalling Support
FXO loop start
Patton 4312 Gateway

Brian Hyrek

Direct: 866-583-0815
Blog

Why Pay $1,189.00 for the Patton SN4312 12 FXO Gateway SN4312/JO/UI?

  • 12 FXO (PSTN) connections presented on an RJ21 port

  • SIP and H.323 compliant

For advice, reviews and industry insight... be sure to follow us online.


Questions on Patton SN4312 12 FXO Gateway SN4312/JO/UI

From Mike Kushnir at 9/21/2014 8:00 PM

Q: I'm planning to deploy this VoIP gateway with 3CX phone system but it looks like it is not in the list of supported hardware. We're using Patton SN4114 now for testing and it works perfectly, but we need to connect 10 FXO's so SN4312 feels like a good option.

To the best of your knowledge, do you think it will work with 3CX?

A: It looks like it probably will NOT work. In order to make sure you are ordering the right product, call Patton and tell them what need. They will tell you exactly which product is right so there won't be any confusion. Their Pre-Sales number is (301) 975-1000 and their Tech Support number is (301) 975-1007.

Do you find this question helpful?  Yes   No
