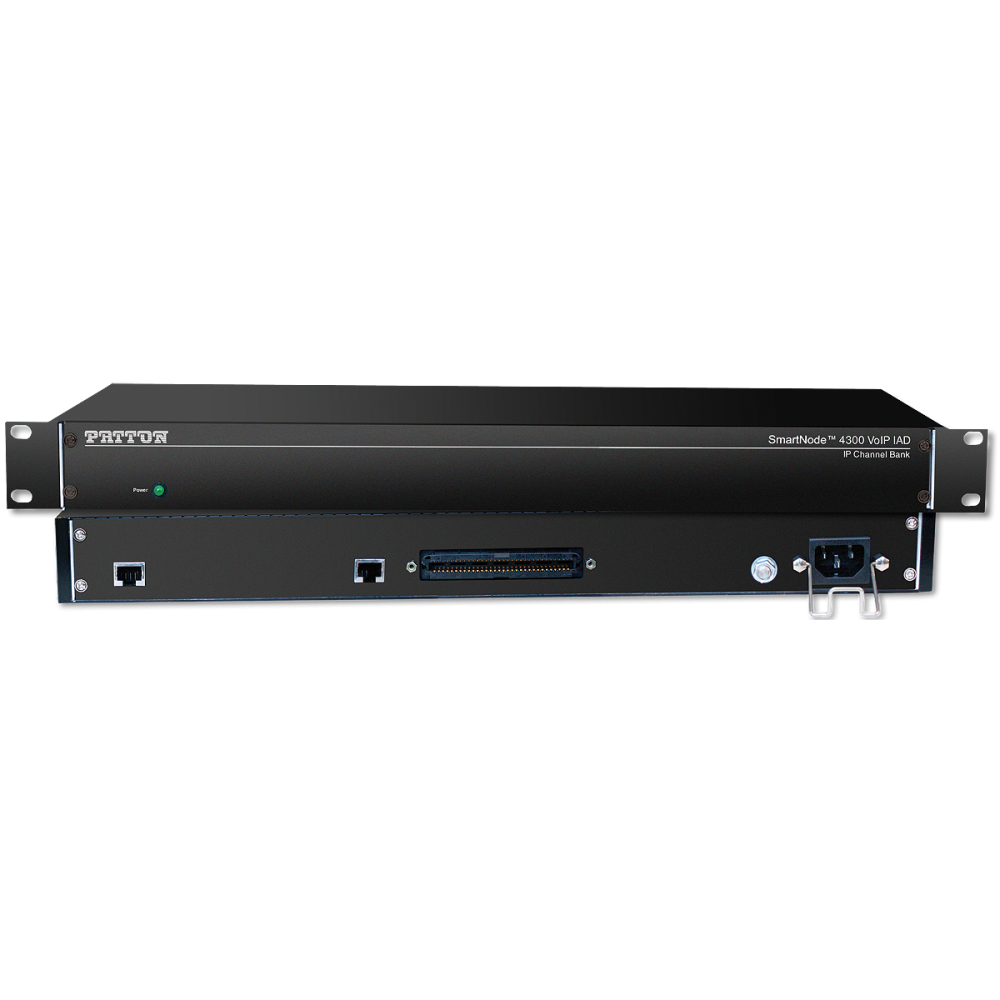

Patton SN4324 24 FXO Gateway SN4324/JO/UI

Be the first to review this product

  • Patton SN4316 Gateway Patton SN4316 Gateway

Availability: In stock

Your Price: $2,167.00
Add To Cart For A Better Price!
Your Price: $2,167.00
Add To Cart For A Better Price!
Options
The Patton SN4324 is a 24-port FXO gateway that allows you to connect your VoIP phone system to up to 24 PSTN lines for local phone access or failover. Read More
Product Details
Manufacturer:
Patton
Model:
SN4324/JO/UI
SKU:
02-114295
Warranty:
1 Year
MSRP Price:
$1,767.00

Patton SN4324 24 FXO Gateway

The Patton SN4324 is a 24-port FXO gateway that allows you to connect your VoIP phone system to up to 24 PSTN lines for local phone access or failover. The SN4324 has an RJ21 Telco connection so you need to use this gateway with an amphenol cable.

Patton SN4324 Overview

The SmartNode 4300 Series IpChannel Bank is the perfect business solution for applications requiring up to 32 concurrent analog voice/fax calls. Patton gateways transform any PBX system, analog call-center application, or ISP MDU service into a state-of-the-art packet-voice system without requiring costly equipment replacement or upgrades.

There are several models in the Patton 4300 series—ranging from up to 32 FXS or FXO ports. The SN4300 gateway supports key industry-standard VoIP signaling protocols such as SIP, H.323, and T.38 Fax Relay—plus fax-bypass and modem-bypass. This ensures interoperability with the leading soft switches and VoIP services.

Patton SN4324 Features:

  • - 24 FXO ports presented on an RJ21 connection
  • - DownStreamQoS™ , IEEE 802.1p, TOS, DiffServ labeling, IEEE 802.1Q, VLAN tag insertion/deletion (4096 VLAN IDs, multiple VLAN support)
  • - Web/HTTP, CLI with local console and remote Telnet access, TFTP configuration & firmware loading, SNMP MIB II and product MIB, Secure auto-provisioning for both firmware and unit/subscriber configuration, Built-in diagnostic tools (trace, debug, call generator)
  • - 2-wire Loopstart on 50pin (12 to 24 channels) Telco connector
  • - Programmable impedance, ring detection, tone detection, disconnect supervision
  • - Caller ID detection
  • - SIPv2 H.323v4 (simultaneously with B2BUA capability)
  • - SIP call transfer, redirect
  • - DTMF in-band & out-of-band
  • - 19in rackmountable chassis

Manufacturer
Patton
Model
SN4324/JO/UI
# of FXO Ports
16
Connection Types
RJ-21 50 Pin Amphenol, **Amphenol Cable Required**
# of Ethernet Ports
1
Protocols Supported
SIP, H.323
Voice Codec Support
G.711 u/a law, G.723, G.726, G.729 a/b
Fax Support
T.38, G.711 pass thru
Provisioning Options
Auto Provisioning, Console CLI, FTP, HTTP, SNMP, Web GUI
Mounting Option
Rackmount
Power
Power Supply Included
Modular Slots
No
PSTN Signalling Support
FXO loop start

Jeff Quinn

Direct: 716-250-7473
Blog

Why Pay $2,167.00 for the Patton SN4324 24 FXO Gateway SN4324/JO/UI?

  • 24 PSTN ports presented on an RJ21 interface

  • SIP and H.323 compliant
