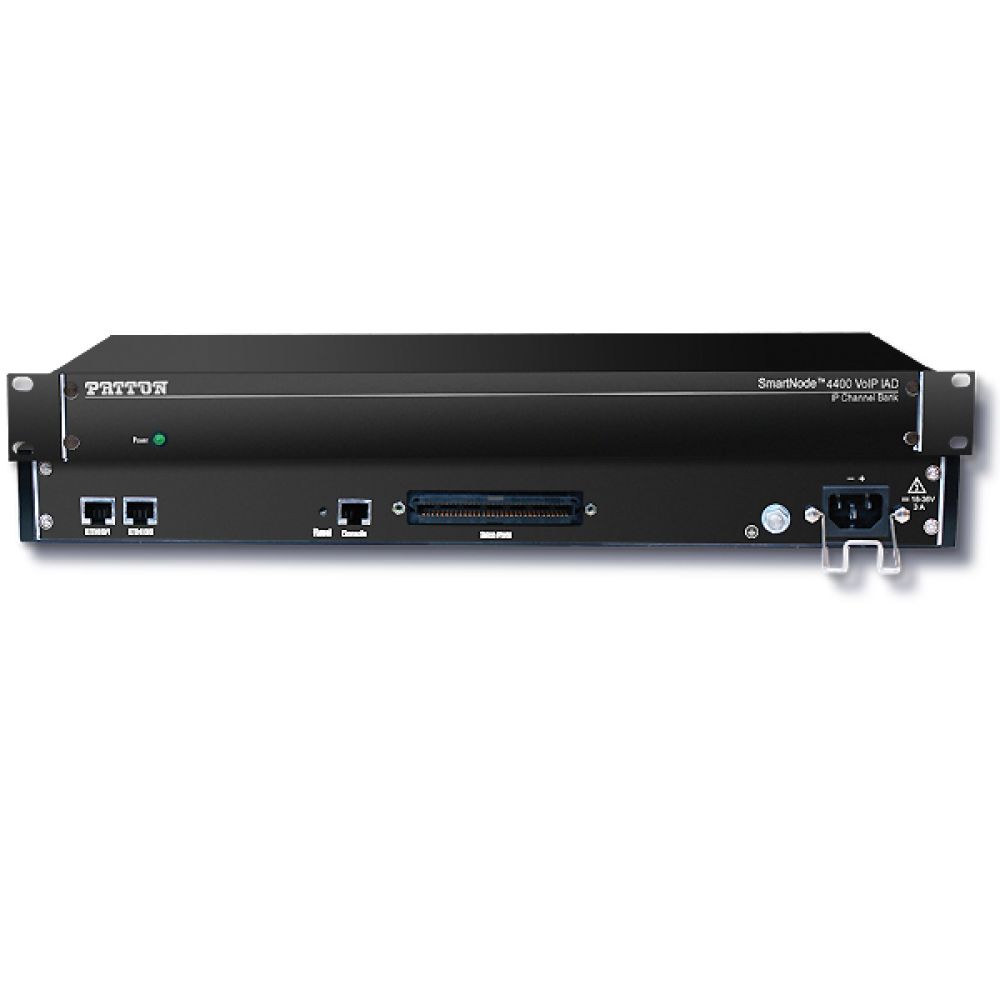

Patton SN4416/JS/UI Gateway

More Views

Availability: In stock

Your Price: $1,274.00
Add To Cart For A Better Price!
$244.01 OFF suggested retail
Options
Product Details
Manufacturer:
Patton
Model:
SN4416/JS/UI
SKU:
02-108825
Warranty:
1 Year
MSRP Price:
$1,274.00
Description
Technical Specs
Ask The Expert
Reviews

PATTON SmartNode 4416 16 FXS Gateway

The Patton SN4400 SN4416/JS/UI VoIP Gateway supports key industry-standard VoIP signaling protocols such as SIP, H.323, and T.38 Fax Relay—plus fax-bypass and modem-bypass. This ensures interoperability with the leading soft switches and VoIP services.

PATTON SN4416/JS/UI 16FXS Gateway Overview:

Built-in Quality of Service (QoS) features include voice prioritization and traffic management via configurable service-policy profiles. Patton’s advanced DownStreamQoS ensures clear, uninterrupted voice—even over best-effort networks such as the Internet. Packet classification using 802.1p, TOS, and DiffServ makes integration with existing managed QoS networks easy. Create custom security profiles for a comprehensive security environment. IPsec in the SN4400 Series delivers data integrity, authentication, anti-replay and data confidentiality. Firewall capabilities include Access Control Lists (ACLs), IP-address and port filtering, protection against Denial of Service (DoS) attacks, and use of second Ethernet port as DMZ.

Offering easy setup, reliable operation, and third-party interoperability on a proven platform, the SN4400 Series Patton gateway sits at the core of cost-effective business solutions. The investment protection you need for the future is here today.

PATTON SN4416/JS/UI 16FXS Gateway Features & Functions:

  • Two 10/100 Ethernet ports
  • Complete IP access router
  • DHCP Client & server
  • Packet fragmentation
  • Static firewall, NAT, NAPT RFC 1631 access control lists
  • DMZ port
  • Voice priority, DownStreamQoS, Traffic management, shaping and policing
  • IEEE 802.1p, TOS, DiffServ labeling
  • IEEE 802.1Q, VLAN tag insertion/deletion (4096 VLAN IDs, multiple VLAN support
  • Web/HTTP, CLI with local console and remote Telnet access
  • TFTP configuration & firmware loading • SNMP MIB II and product MIB
  • Secure autoprovisioning for both firmware and unit/subscriber configuration
  • Built-in diagnostic tools (trace, debug, call generator)
  • 2-wire Loopstart on 50pin (12 to 24 channels) or 64pin (32 channels) Telco connector
  • Short haul loop 1.1km @3REN • EuroPOTS (ETSI EG201188)
  • Programmable AC impedance, feeding, ring and on-hook voltage
  • Caller-ID FSK and ITU V.23/Bell 202 generation
  • SIPv2 H.323v4 (simultaneously with B2BUA capability)
  • SIP call transfer, redirect
  • DTMF in-band & out-of-band
  • All tones programmable (dial, ringing, busy)
  • CODEC G.711 a-law/mu-law, G.723, G.729ab
  • G.726, G.727. T.38 fax relay
  • G.711 transparent fax and bypass
  • 9-in. rack-mount chassis
Manufacturer
Patton
# of FXS Ports
16
# of FXO Ports
0
Connection Types
RJ-21 50 Pin Amphenol, **Amphenol Cable Required**
# of Ethernet Ports
2
Protocols Supported
SIP, H.323
Voice Codec Support
G.711 u/a law, G.723, G.726, G.729 a/b
Fax Support
T.38, G.711 pass thru
Provisioning Options
Auto Provisioning, Console CLI, HTTP, TFTP, Web GUI
Mounting Option
Rackmount
Power
Power Supply Included
Modular Slots
No
MWI Support
Yes
Peripheral Port
EIA-232
PSTN Fallback / Failover
No
PSTN Signalling Support
FXS loop start

Arthur Miller

Direct: 866-583-8920
Blog

Why Pay $1,274.00 for the Patton SN4416/JS/UI Gateway?

  • 16 simultaneous voice or fax calls on all ports. Advanced local call switching.

  • 16 FXS Ports, Full SIP and T.38 support

  • DownStreamQoS and Voice-over-VPN with adaptive traffic management and shaping
