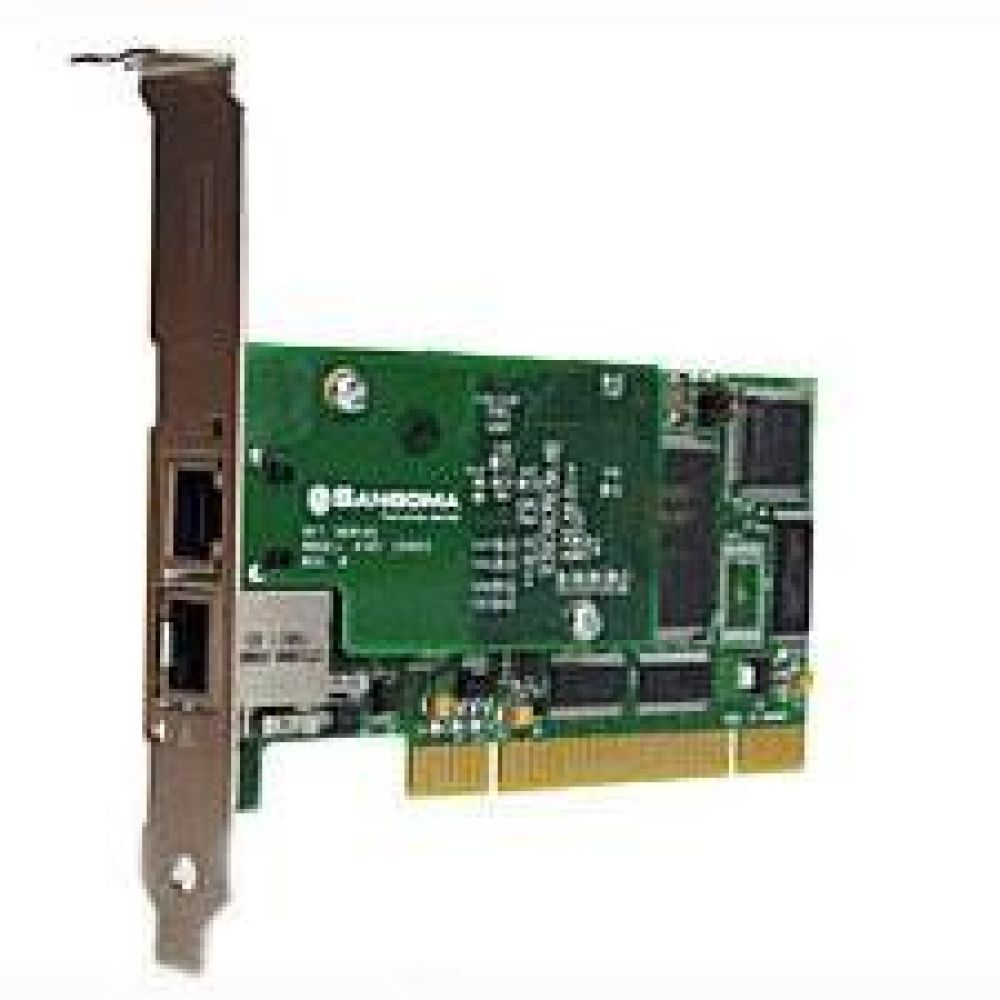

Sangoma A102D Dual T1/E1 with Echo Cancellation

Be the first to review this product

Availability: In stock

Your Price: $1,327.00
Your Price: $1,327.00
The Sangoma A102D is a dual port T1/E1/J1 PCI card with onboard hardware echo cancellation that can support up to 60 voice calls or 4.096 Mbps of full-duplex data throughput over two T1, E1, or J1 lines Read More
Product Details
MSRP Price:
% Off:

Sangoma A102D

The Sangoma A102D PCI card features two ports of optimized voice and data over T1, E1, and JI available with Telco-grade hardware echo cancellation.

Sangoma A102D Digital Telephony Card Overview

Part of Sangoma's award-winning Advanced Flexible Telecommunications product line, the Sangoma A102D uses the same high-performance PCI or PCI Express interface that providing superior performance in critical systems all over the world. The Sangoma A102D supports up to 60 voice calls or 4.096 Mbps of full-duplex data throughput over two T1, E1, or J1 lines. Take advantage of hardware and software improvements, as soon as they become available, as like all cards in Sangoma's AFT family, the Sangoma A102D is field upgradable with crash-proof firmware. The Sangoma A102D cards with Octasic®'s DSP hardware and certified algorithms to achieve carrier-grade echo cancellation and Voice Quality Enhancement functions on your open source or even proprietary telephone system.

Sangoma A102D Features and Functions

  • Two T1/E1 ports with a single PCI or PCI-Express interface optimized for high performance voice and data applications.
  • Mix T1 channel banks and E1 networks with full channel synchronization. TDM clocking mode lets network timing to be passed from a network-connected DS0 to any or all of the other ports, so both T1 and E1 are supported simultaneously.
  • Support for Asterisk®, Yate™, CallWeaver™ and FreeSWITCH™ PBX/IVR Projects, as well as other open source and proprietary PBX, Switch, IVR, or VoIP gateway applications.
  • All of Sangoma's AFT products use the same base PCI interface card. Fully compatible with all commercially available motherboards - proper PCI-standard interrupt sharing without manual tuning.
  • Dimensions: 2U Form factor: 120mm x 55 mm for use in restricted chassis.
  • Includes high-quality, tested RJ45 cables and short 2U mounting clips for installation in 2U rack-mount servers.
  • Intelligent hardware: Downloadable FPGA programming with multiple operating modes. Add new features related to voice and/or data when they become available.
  • Autosense compatibility with 5V and 3.3V PCI busses.
  • Line decoding: HDB3, AMI, B8ZS.
  • Framing: CRC-4, Non CRC4, ESF, SF, D4T1/E1. Also compatible with Japan's J1.
  • A102E and A102DE PCI Express: 1 Lane PCI Express bus.
  • Power: 800 mA peak, operational 300 mA max at +3.3 V or 5V.
  • 32-bit bus master DMA data exchanges across PCI interface at 132 Mbytes/sec for minimum host processor intervention.
  • Ring buffer DMA handling for minimum host intervention and guaranteed data integrity on high volume systems.
  • Supports Robbed Bit Channel Associated Signaling (CAS) and ISDN PRI.
  • T1/E1 and fractional T1/E1, multiple channel HDLC per line for mixed data/TDM voice applications.
  • Optimized per channel DMA streams and hardware-level HDLC handling unload the host CPU.

Didn't find the PCI Card you were looking for?

Check out these other Sangoma Cards:

# of Digital Ports
Digital Signaling Type
T1, E1, J1
Bus Type
Echo Cancellation
Form Factor
Half Length, Full Height
Voltage Requirements
3.3v, 5.0v
Data/Voice Support
Voice Signaling Methods
Fractional Support
yes-half data and half voice

Jeff Quinn

Direct: 716-250-7473

Why Pay $1,327.00 for the Sangoma A102D Dual T1/E1 with Echo Cancellation?

  • Dual T1/E1/J1 ports

  • Octasic DSP hardware echo cancellation

  • Full support for Asterisk, Trixbox, FreeSWITCH ad other platforms
