The Sangoma A104E is a quad port T1/E1/J1 PCI Express card that supports up to 16.4 Mbps of full duplex data throughput or up to 240 voice calls using up to eight T1, E1, or J1 lines Read More
Product Details
Manufacturer:
Sangoma
Model:
A104E
UPC:
NA
SKU:
02-102032
MSRP Price:
$1,700.00
% Off:
17%

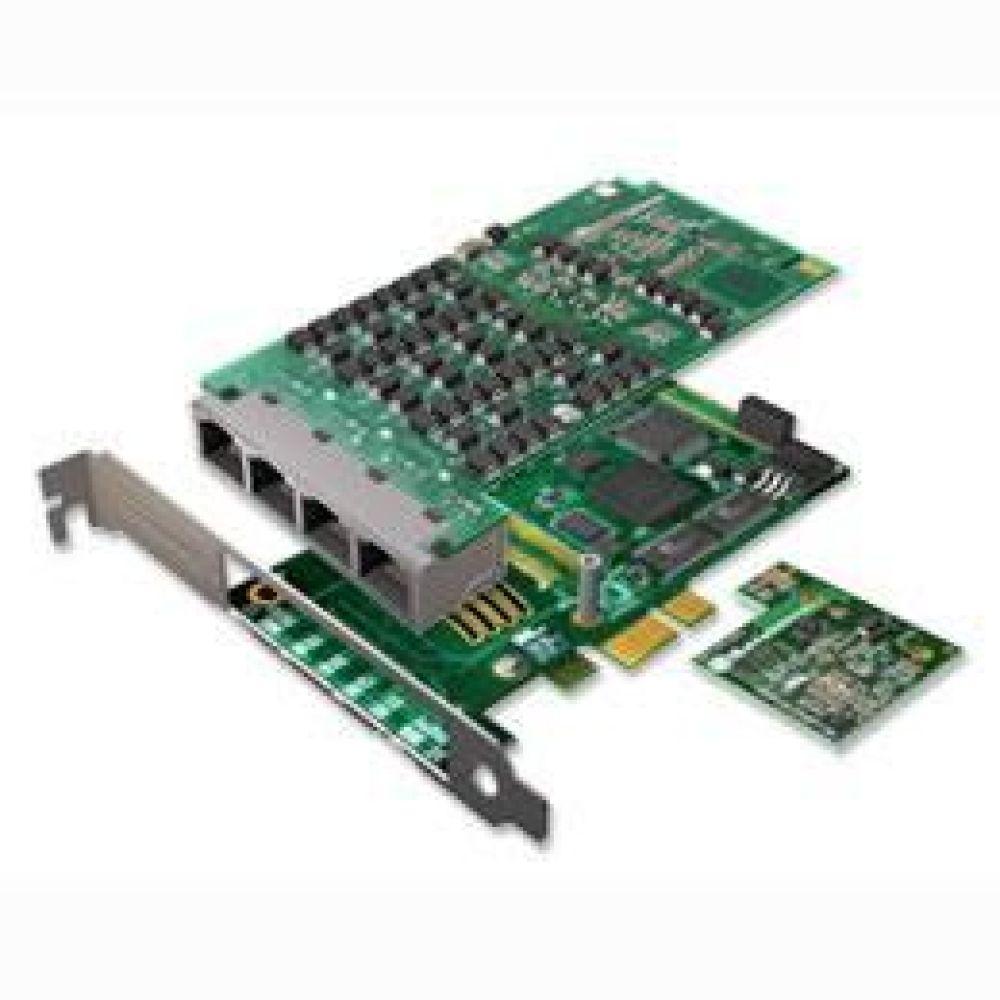

Sangoma A104E

Obtainable in both PCI (A104) and PCI Express (Sangoma A104E) form factors, The A104 provides up to 16.4Mbps of full duplex data throughput or 120 voice calls over four T1 and or E1 lines to support high performance PCI-based routing and telephony systems. Advanced clocking features allow E1 and T1 lines to be mixed with full synchronization. As part of Sangoma's AFT range of products, the A104 makes use of the same high performance PCI interface that has been deployed in large quantities all over the world.

Sangoma A104E Digital Telephony Card Overview

The available A104d and A104d-X cards include Octasic's DSP hardware and certified algorithms providing carrier-grade echo cancellation and Voice Quality Enhancement (VQE) functions. Like all the Sangoma AFT family, the A104 is field upgradeable to take advantage of hardware and software improvements as they become available.

Sangoma A104E Features and Functions

  • Available as Single T1/E1 port A101 or Dual T1/E1 port A102 with daughterboard
  • Intelligent hardware: Downloadable Field Programmable Gate Array programming with multiple operating modes:
  • T1/E1 and fractional T1/E1, single channel HDLC per line
  • Optionally available as A101-C 0r A102-C with Channelized T1/E1 on either or both ports with any configuration of up to 64 DS0s carrying either voice or HDLC data
  • Power: 520mA at 5v
  • MTBF: > 1 Million hours Calculated.
  • PCI 32 bit 5v and 64 bit 3.3v compatible.
  • Temperature range: 0 - 45C.
  • All set-up and configuration is in software or by machine BIOS.
  • DSU/CSU setup entirely in software.
  • Line decoding: HDB3, AMI, B8ZS.
  • Framing: CRC4, non-CRC4, ESF, D4T1/E1.
  • Clocking mode: Normal , Master.
  • Software controlled DSU/CSU test modes.
  • Remote monitoring of card and CSU/DSU operation
  • Dimensions: 2U Form factor: 120mm x 55 mm.

Didn't find the PCI Card you were looking for?

Check out these other Sangoma Cards:

Manufacturer
Sangoma
Model
A104E
# of Digital Ports
4
Digital Signaling Type
T1, E1, J1
Bus Type
PCI-Express
Echo Cancellation
No
Form Factor
Half Length, Full Height
Voltage Requirements
3.3v, 5.0v
Data/Voice Support
Yes
Voice Signaling Methods
CAS, ISDN PRI, PRI, MFC/R2, ATM, PPP, SS7, BSC, HDLC
Fractional Support
yes-half data and half voice
Sangoma A104E

Don Stefanie

Direct: 716-213-6906
Blog

Why Pay $1,411.00 for the Sangoma A104E?

  • Four T1/E1 ports with a single PCI Expess interface

  • Support for the Asterisk, OPAL Yate, FreeSwitch PBX/IVR projects

  • TDM clocking mode

For advice, reviews and industry insight... be sure to follow us online.


Questions on Sangoma A104E

From mehdi amini at 1/6/2015 7:00 PM

Q: Hi,
Does Sangoma A104E support MLPPP?
Does MLPPP implement in hardware or software?
Regards,
Mehdi Amini

A: Yes MLPPP is software and it is implemented on the PBX
