Patton SmartNode 4112s 2-FXS Gateway SN4112S/JS/EUI (Discontinued)

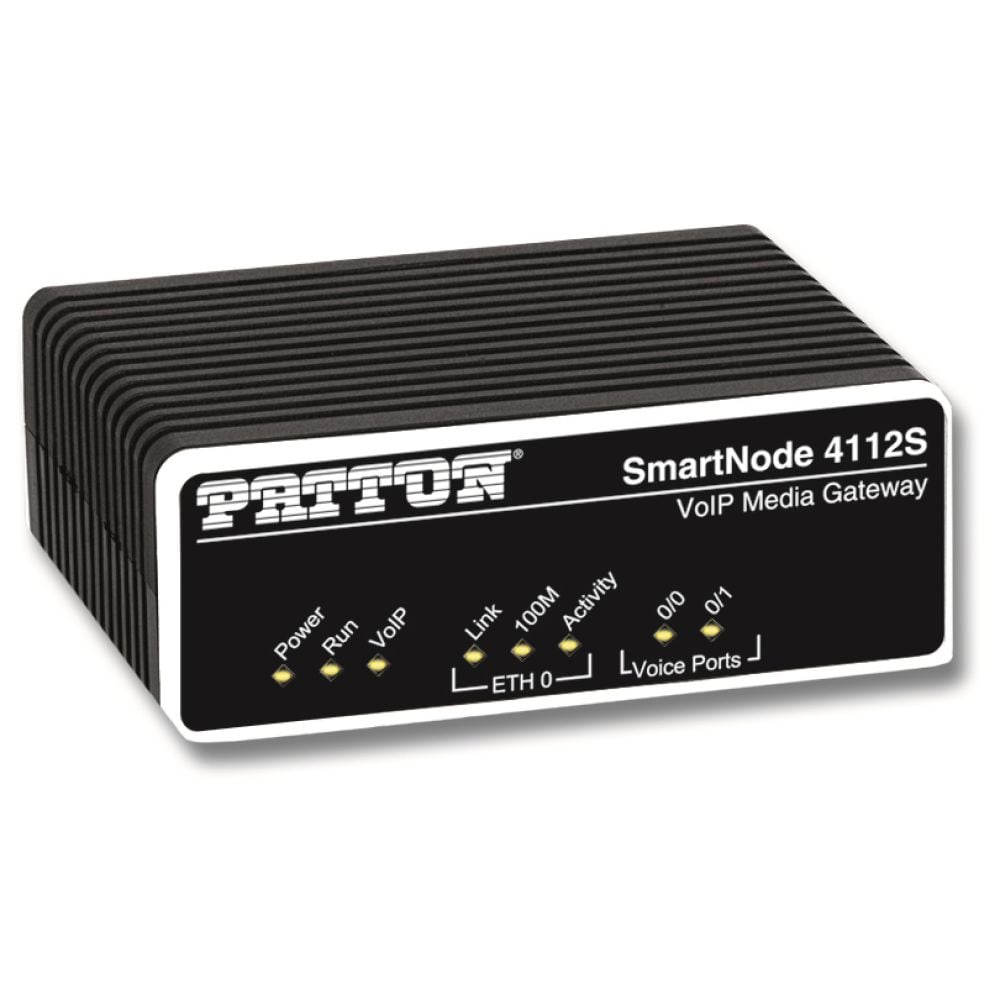

SmartNode 4112s 2-FXS Gateway

The SmartNode 4112s 2-FXS Gateway is Patton's redesign of their popular two-port SmartNode 4112 FXS Gateway- but it just got smaller, and more affordable! The 4112s provides all the same hardware, features and functions you've come to trust in the 4112, but in a smaller enclosure. The 4112s has 2 FXS ports and is the perfect connectivity solution for any analog phone, fax, or PBX.

SmartNode 4112s 2-FXS Gateway Overview

The SmartNode 4112s 2-FXS model has a reset button, but does not have a console port, so installers will use the SmartNode discovery tool for setup instead. The 4112s provides easy management and provisioning that is web-based with automated mass provisioning for efficent large-scale deployments. This gateway also offers proven integration for voice and T.38 fax with 3CX®, Asterisk™, PingTel™ and other leading IP PBX systems and soft switch vendors.The 4112s simultaneously connects to a number of SIP services and IP PBX's.

SmartNode 4112s 2-FXS Gateway Features and Specifications

Voice Signaling
• H.323v4, SIPv2 (B2BUA
capable, multi-instance,
simultaneous support of
multiple registrars and direct
IP dialing)
• SIP call transfer, redirect
• DTMF in-band & out-of-band
• All tones programmable (dial,
ringing, busy)

Voice Processing
• CODEC G.711 a-law/mulaw,
G.723, G.729ab,
• G.726, G.727. T.38 fax relay
(9.6 k, 14.4 k)
• G.711 transpar

FXO Connectivity
• 2-wire Loopstart on RJ-
11/12
• Programmable impedance,
ring detection, tone detection,
disconnect supervision
• Caller ID detection

IP services
• One 10/100 Ethernet port
• DHCP Client
• Access control lists
• Traffic policing
• IEEE 802.1p, TOS, DiffServ
labeling
• IEEE 802.1Q, VLAN tag
insertion/deletion (simultaneous
support of multiple
VLANs)
• IPsec, IKE, AES/DES/3DES
encryption (optional)
