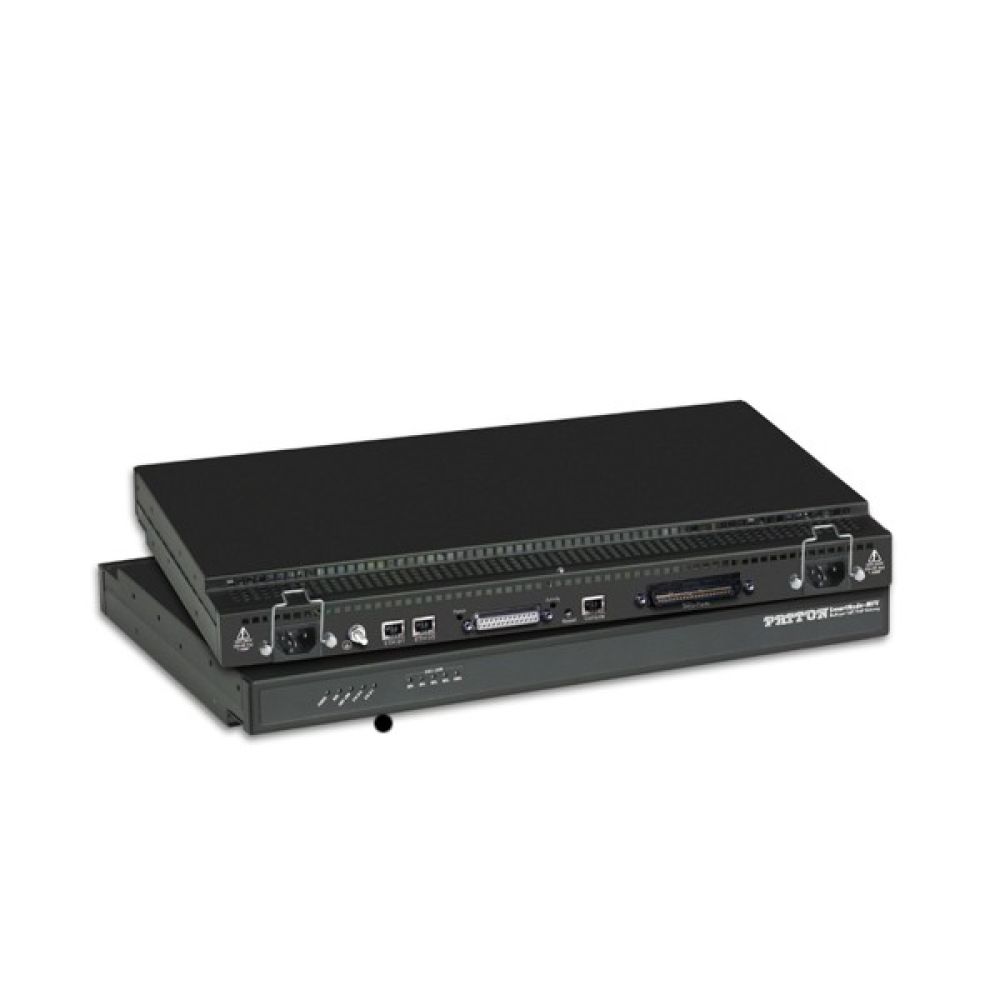

Patton SN4912/JS/R48 Gateway Router

Be the first to review this product

Availability: In stock

Your Price: $1,820.00
Add To Cart For A Better Price!
Your Price: $1,820.00
Add To Cart For A Better Price!
Options
The Patton SmartNode 4912 VoIP Gateway is the ideal solution for service providers or enterprises requiring high-density analog connections for converged internet telephony. Read More
Product Details
Manufacturer:
Patton
Model:
SN4912/JS/R48
SKU:
02-103898
Warranty:
1 Year
MSRP Price:
$1,484.00

Patton Smartnode 4912 12 FXS VoIP Router

Patton SN4912/JS/R48.

Patton's SmartNode 4900 Series Ip Channel Bankis the perfect business solution for applications requiring 12 to 32 concurrent analog voice/fax calls. The IpChannel Bank transforms any PBX system, analog call-center application, or ISP MDU service into a state-of-the-art packet-voice system without requiring costly equipment replacement or upgrades.

The SN4900 Series Patton gateway supports key industry-standard VoIP signaling protocols such as SIP, H.323, and T.38 Fax Relay--plus fax-bypass and modem-bypass. This ensures interoperability with the leading soft switches and VoIP services.

Patton SN4912/JS/R48 Overview

Built-in Quality of Service (QoS) features include voice prioritization and traffic management via configurable service-policy profiles. Patton's advanced DownStreamQoS ensures clear, uninterrupted voice--even over best-effort networks such as the Internet. Packet classification using 802.1p, TOS, and DiffServ makes integration with existing managed QoS networks easy.

Create custom security profiles for a comprehensive security environment. IPSec in the SN4900 Series delivers data integrity, authentication, anti-replay and data confidentiality. Firewall capabilities include Access Control Lists (ACLs), IP-address and port filtering, protection against Denial of Service (DoS) attacks, and use of second Ethernet port as DMZ.

Patton SN4912/JS/R48 Features
  • 12 FXS ports
  • Redundant 48v DC Power
  • Multi-port VoIP media gateway and routing
  • DTMF relay, Caller-ID, Hold, Transfer etc.
  • Advanced adaptive traffic management for maximum voice quality
  • Voice prioritization and DownStreamQoS for bi-directional traffic control
  • IPv4, RIPv2, ICMP, IGMP, NAT/PAT, Firewall, DHCP, DynDNS, IPSec VPN (optional)
  • Optional WAN for one-box connection to the network
  • Built-in Web based management, SNMP, Command Line Interface and Auto-Provisioning

Manufacturer
Patton
Model
SN4912/JS/R48
# of FXS Ports
12
Connection Types
RJ-45 50 Pin Amphenol
Amphenol Cable Included
No
# of Ethernet Ports
2
Protocols Supported
SIP
Voice Codec Support
G.711 a/u law, G.723, G.729 a/b
Fax Support
T.38, G.711 pass thru, G.726
Provisioning Options
Auto Provisioning, Console CLI, From Physical Unit, HTTP, SNMP, Telnet SSH, TFTP, Web GUI
Mounting Option
Rackmount
Power
Power Supply Included
Patton SN4912/JS/R48 Gateway Router

Joe Shanahan

Direct: 866-583-0920
Blog

Why Pay $1,820.00 for the Patton SN4912/JS/R48 Gateway Router?

  • Complete Access Routing—Two 10/100 Ethernet ports with auto MDI-X. Access router with NAT, Firewall, PPPoE, DHCP, DynDNS, multiple VLANs & VPN with IPSec

  • Secure Toll-Quality VoIP—DownStreamQoS and Voice-over-VPN with adaptive traffic management and shaping for maximum voice quality and secure voice communication.

  • Secure Toll-Quality VoIP—DownStreamQoS and Voice-over-VPN with adaptive traffic management and shaping for maximum voice quality and secure voice communication.
