The Patton SmartNode 4924 VoIP Gateway is a 24 FXS port gateway with redundant UI power. Read More
Product Details
Manufacturer:
Patton
Model:
SN4924/JS/RUI
SKU:
02-101578
Warranty:
1 Year
MSRP Price:
$1,880.00

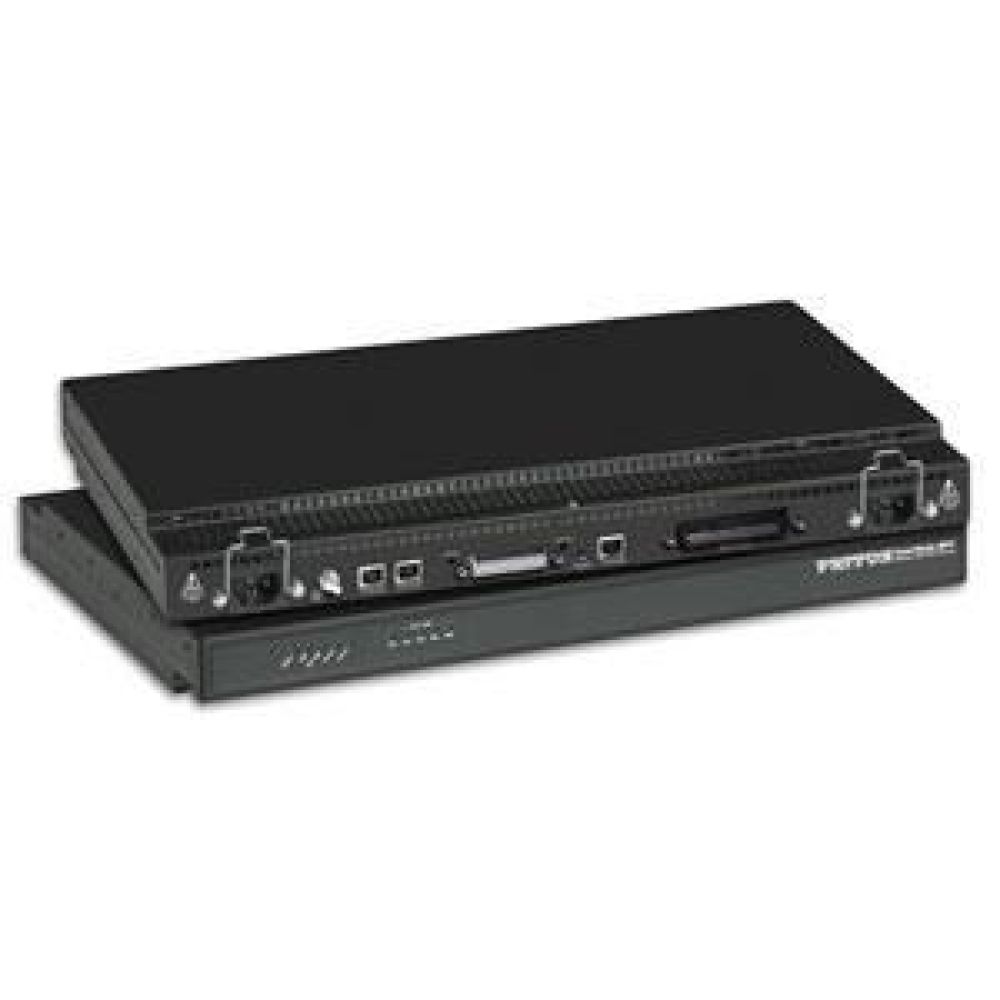

Patton Smartnode 4924 24 FXS VoIP Gateway Router

Patton's SmartNode 4900 Series Ip Channel Bank is the perfect business solution for applications requiring 12 to 32 concurrent analog voice/fax calls. The IpChannel Bank transforms any PBX system, analog call-center application, or ISP MDU service into a state-of-the-art packet-voice system without requiring costly equipment replacement or upgrades.

The Patton SN4900 Series supports key industry-standard VoIP signaling protocols such as SIP, H.323, and T.38 Fax Relay--plus fax-bypass and modem-bypass. This ensures interoperability with the leading soft switches and VoIP services.

Patton SN4924/JS/RUI Overview

Built-in Quality of Service (QoS) features include voice prioritization and traffic management via configurable service-policy profiles. Patton's advanced DownStreamQoS ensures clear, uninterrupted voice--even over best-effort networks such as the Internet. Packet classification using 802.1p, TOS, and DiffServ makes integration with existing managed QoS networks easy.

Create custom security profiles for a comprehensive security environment. IPSec in the SN4900 Series delivers data integrity, authentication, anti-replay and data confidentiality. Firewall capabilities include Access Control Lists (ACLs), IP-address and port filtering, protection against Denial of Service (DoS) attacks, and use of second Ethernet port as DMZ.

Patton SN4924 Features

  • Multi-port VoIP media gateway and routing
  • DTMF relay, Caller-ID, Hold, Transfer etc.
  • Advanced adaptive traffic management for maximum voice quality
  • Voice prioritization and DownStreamQoS for bi-directional traffic control
  • IPv4, RIPv2, ICMP, IGMP, NAT/PAT, Firewall, DHCP, DynDNS, IPSec VPN (optional)
  • Optional WAN for one-box connection to the network
  • Built-in Web based management, SNMP, Command Line Interface and Auto-Provisioning

Manufacturer
Patton
Model
SN4924/JS/RUI
# of FXS Ports
24
Connection Types
RJ-21 50 Pin Amphenol, **Amphenol Cable Required**
# of Ethernet Ports
2
Protocols Supported
SIP, H.323
Voice Codec Support
G.711 u/a law, G.723, G.726, G.729 a/b
Fax Support
T.38, G.711 pass thru
Provisioning Options
Auto Provisioning, Console CLI, HTTP, Telnet SSH, TFTP, Web GUI
Mounting Option
Rackmount
Power
Power Supply Included
Modular Slots
No
MWI Support
Yes
Peripheral Port
EIA-232, Optional WAN Pin Interface
PSTN Fallback / Failover
Yes
PSTN Signalling Support
FXS loop start
Patton SN4924/JS/RUI

Don Stefanie

Direct: 716-213-6906
Blog

Why Pay $2,306.00 for the Patton SN4924/JS/RUI?

  • Complete Access Routing—Two 10/100 Ethernet ports with auto MDI-X. Access router with NAT, Firewall, PPPoE, DHCP, DynDNS, multiple VLANs & VPN with IPSec

  • Secure Toll-Quality VoIP—DownStreamQoS and Voice-over-VPN with adaptive traffic management and shaping for maximum voice quality and secure voice communication.

  • Full SIP and T.38 support—Supports the complete range of industry standard VoIP: SIP, H.323, T.38 fax, fax and modem bypass, DTMF relay. Codecs G.729, G.723 etc.
