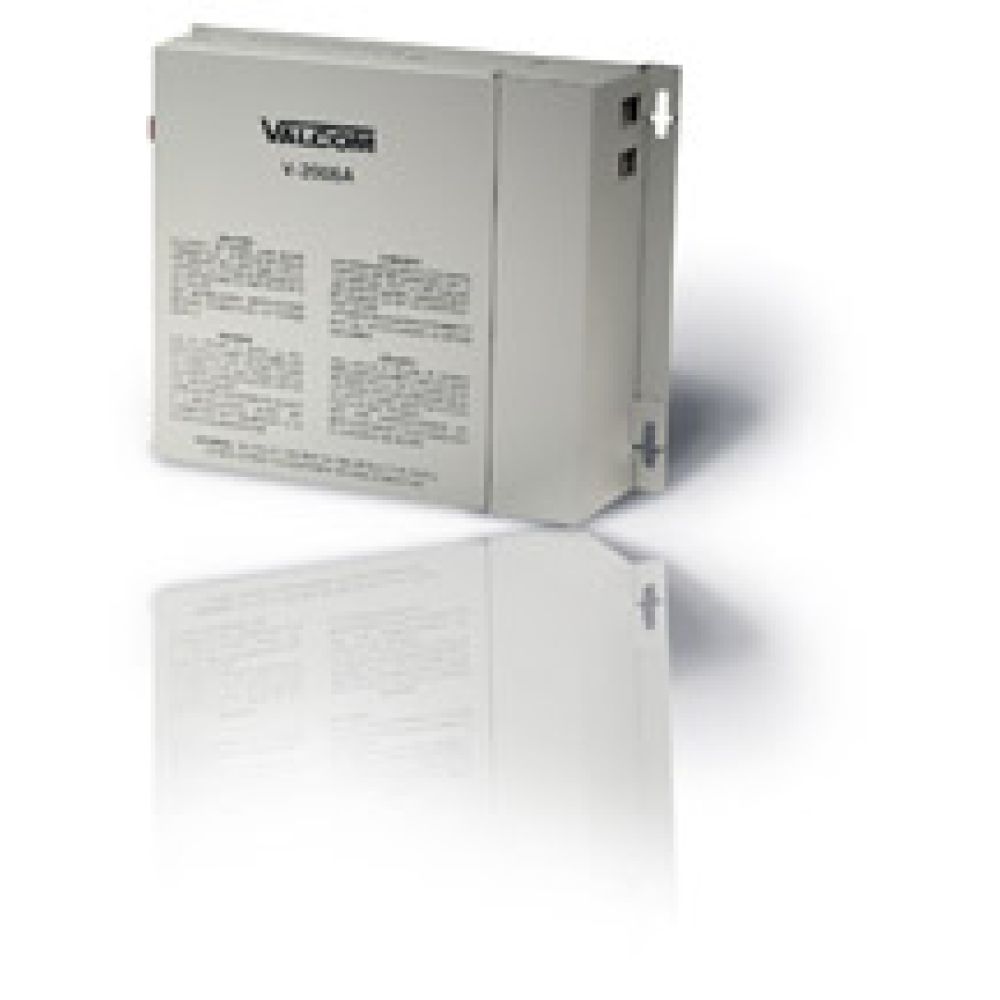

Valcom V-2006A Page Control Unit

Valcom V-2006a 6 Zone One-Way Page Control with Power

The Valcom V-2006a is a telephone-compatible three-zone, one-way page control unit with integrated power supply, all call, integrated single/warble tone generators, and background music input.

The Valcom V-2006a provides:

• Provides Tandem All Call
• Background Music Input,
  Automatically Mutes In Zone
  Being Paged
• Page Override For Special
  Or Priority Announcements
• Features Are Programmable Per Zone
• 2 Built-In Tones (steady tone & warble tone)
• Accepts Pulse Dial And Tone Dial
• Battery Back-Up Input (VPB-260)
• To interface with analog extension or Centrex line add the V-9970

Valcom V-2006A Product Overview

• One-Way All Call (One Page to All Zones)
• Pulse & Tone Dial
• Background Music Mutes - only in Zone Being Paged
• Emergency Page Override for Priority Announcements
• Unlimited Expansion
• Features Programmable Per Zone
• 2 Built-In Tones: Steady Tone, Warble Tone
• Alert Tones
• Battery Back-Up Input (VPB-260)
• UL, CSA, CE
• Loop start, ground start, or page port access
• Three zones of one way page
• All call
• Background music input
• Integrated single/warble tone generators
• Features programmable per zone
• Integrated power supply
• Provides external power for one-way amplified speakers
• Battery backup compatible
• Page override input
• Field upgradable to talkback

Valcom V-2006A Specifications

POWER REQUIREMENT: 1 Amp at 120 VAC

INPUTS/OUTPUTS:

• Input Impedance: 600 ohms
• Music Source Impedance: 8 to 600 ohms
• Music Input Level: -10 dBm nominal
• Low Level Output Impedance: 8 ohms
• Low Level Output Level: -10 dBm nominal 0 dBm maximum
• DC Output: -24 Vdc at 1 Amp

CONTROLS: Tone Volumes, Background Music Volume, All Call Page Volume

CONNECTIONS: Unit equipped with male 50 pin amphenol connector for input/output connections. An RJ11 jack is also provided for tip and ring input connections. A three prong polarized Molex connector is provided for battery backup connection.

• Temperature: +32 to +104 ºF (0 to +40 ºC)
• Humidity: 0-85% Non-Condensing

HOUSING AND FINISH: Constructed of grey painted aluminum alloy

DIMENSIONS AND WEIGHT: 7.13" (18.09 cm) H x 10.0" (25.4 cm) W x 3.0" (7.62 cm) D. Shipping Weight: 5.25 lbs (2.38 kg)

ACCESSORIES: Model V-9953 Plug-in Talkback Module Model VPB-260 Battery Back-up Supply
