Valcom VIP-801-IC

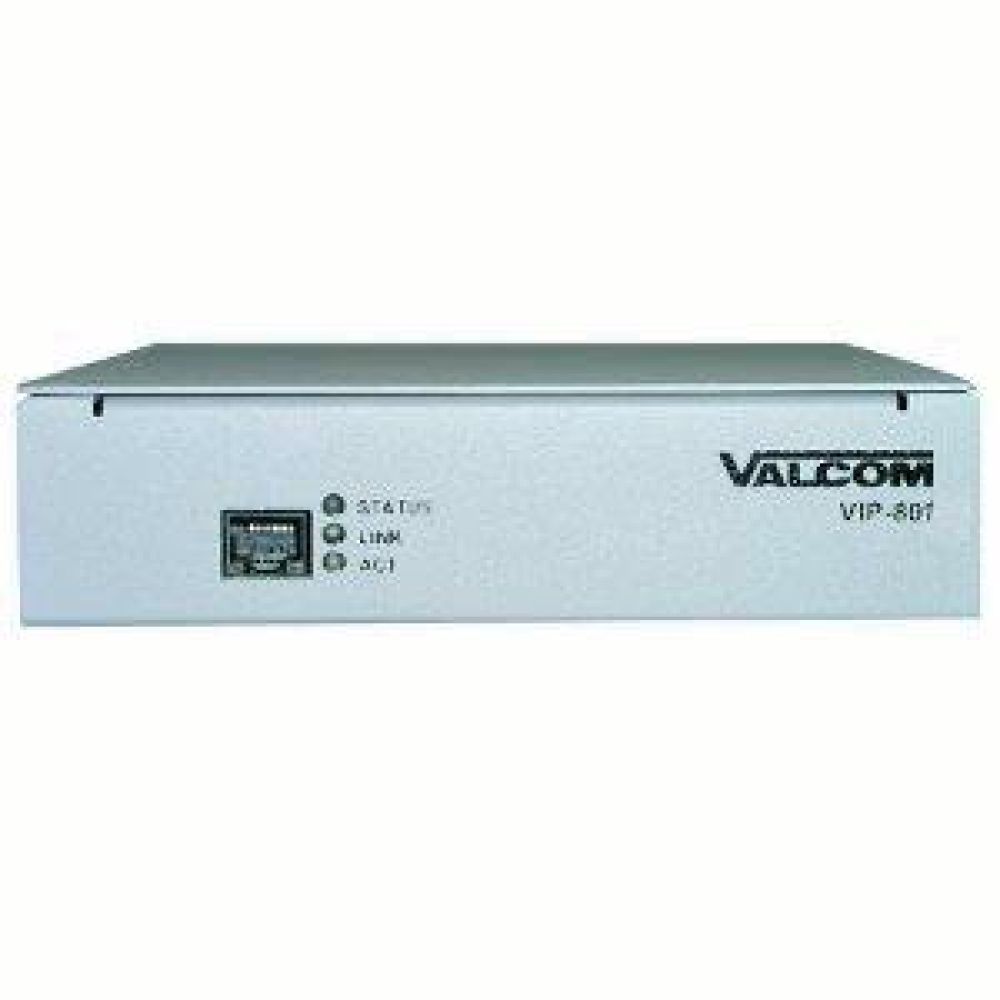

Valcom VIP-801-IC InformaCast IP Page Zone Extender

The Valcom VIP-801-IC Networked Page Zone Extender for InformaCast Paging Systems enables voice access to a single zone of one-way paging over an IP-based LAN/WAN. This allows page zone extension anywhere on the network.

Valcom VIP-801-IC Product Overview

The VIP-801 Networked Page Zone Extender enables voice access to one zone of one-way paging over an IP-based LAN/WAN. This allows page zone extension anywhere on the network. Multiple VIP-801 Networked Page Zone Extenders can be used on the same network to create very large and distributed public address systems. The VIP-801 can be programmed as a SIP (Session Initiation Protocol) device for connectivity to virtually any Voice over IP (VoIP) telephone system.

Example applications include multiple floors in a single building, Multiple buildings in a campus environment, City wide paging of all Fire & Rescue buildings, Interstate paging between bank branches.

Valcom VIP-801-IC Features:

• HTTP interface for status & configuration
• 1 Audio Output
• 1 Relay Contact Closure Output
• RJ-45 jack for network connection
• Front panel activity LED
• Provides audio for up to 150 Valcom one-way amplified speaker assemblies
• Output control contact closure provided during paging output
• Compatible with 25 or 70 Volt amplifiers
• 2.5mm jack for external DC power (optional)
• Power over Ethernet 802.3af compatible
