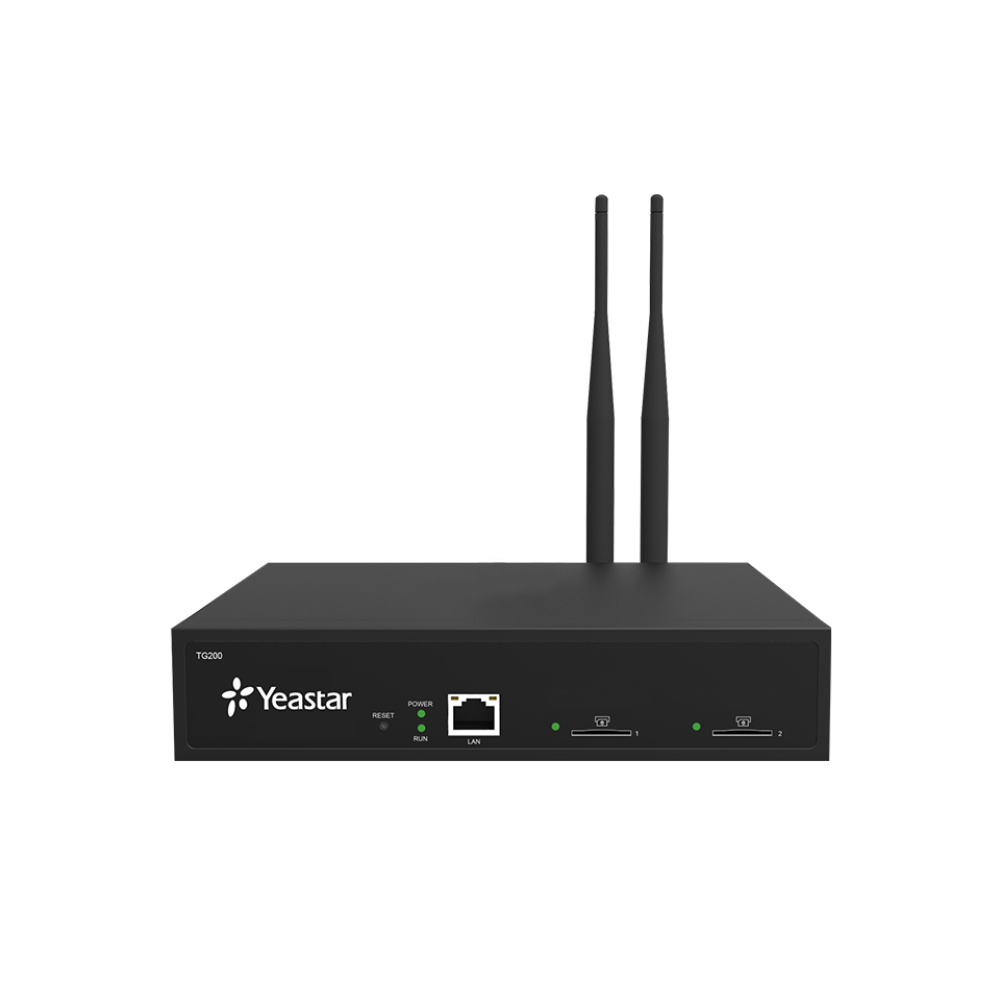

Yeastar Neogate TG200 2 GSM Gateway

Be the first to review this product

  • Yeastar NeoGate TG200 NG2GSM 2 SIM Gateway Yeastar NeoGate TG200 NG2GSM 2 SIM Gateway

Availability: In stock

Your Price: $329.00
Your Price: $329.00
Options
A GSM gateway for connecting GSM networks to VoIP networks for two-way communication. The TG200 is ideal for connecting IP Phones, soft switches, and IP-PBX's to GMS network, and is the best fallback solution for land land outages. Read More
Product Details
Manufacturer:
Yeastar
Model:
TG200-2-GSM
UPC:
6926150032828
SKU:
02-112595
MSRP Price:
$329.00

Yeastar Neogate TG200 2 GSM Gateway

The Yeastar Neogate TG200 is a GSM gateway for connecting GSM networks to VoIP networks for two-way communication. The TG200 is ideal for connecting IP Phones, soft switches, and IP-PBX's to GSM network, and is the best fallback solution for landline outages.

The TG200 Gateway from Yeastar can be a cost-saving addition for a backup option should landlines go out, and is great for phone calls between mobiles or to PTSN. Best of all, it's easy to install with a web based GUI and simple to integrate.

Yeastar Neogate Series includes features such as SIP proxy Registrar for IP phones, incoming and outgoing call routing, SMS sending and receiving with a web interface, callback function, Least Cost Routing (LCR), top voice quality (EFR super sound), simple web based configuration, and it's easy to integrate and easy to install.

Yeastar Neogate TG200 2 GSM Gateway Features and Functions:

  • Number of GSM channels (Max): 2 (Quad-Band GSM/GPRS850/900/1800/1900MHz; Support external antenna)
  • Protocol: SIP (RFC3261)
  • Transport: UDP
  • DTMF: RFC2833, SIP INFO, In-band
  • Codec: G.711 A/u-law, G.726, G.729 A, GSM, Speex.
  • LAN: 1 (10/100MBps)
  • Network: DHCP Server, VLAN, Firewall.
  • Power Supply: AC 100~240V/50~60Hz (DC 12V, 1A)
  • Size: 175x125x31mm

Yeastar Neogate TG200 is Compatible with:

  • Asterisk
  • Microsoft Lync
  • Trixbox
  • Elastix
  • FreeSWITCH
  • 3CX

For more information on the Yeastar Neogate GSM Gateway, see the Data Sheet under the Technical Specs tab or call one of our VoIP Experts at 1.800.398.8647.

Manufacturer
Yeastar
Model
TG200-2-GSM

Questions on Yeastar Neogate TG200 2 GSM Gateway

From karanja philip at 2/19/2015 7:00 PM

Q: how do i view and save messages in my sim cards to a computer.

A: http://www.yeastar.com/download/PartII_NeoGate_TG_Series_UserManual_en.pdf

Do you find this question helpful?  Yes   No

From Kevin G at 2/21/2016 7:00 PM

Q: Does the TG200 create a data connection to the cellular network as well?

A: Hi Kevin,

Yes being VOIP and Analog GSM Gateways it will be able to connect to fix cellular terminals.

Thank you,

Do you find this question helpful?  Yes   No

From Jeff at 4/10/2016 8:00 PM

Q: What carriers in the US is Neogate compatible with? I basically want to use with carriers that offer bring your own device, such as Straightalk, Verizon, tracfone, etc?

A: Hi Jeff,

You would have to contact the carries themselves for this inquiry.

Thank you,

Do you find this question helpful?  Yes   No
