Patton SN4300 VoIP Gateway

Patton SN4300

More Views

  • Patton SN4300
Product Details
Manufacturer:
Patton
Model:
SN43xx
SKU:
02-SN4300
Warranty:
1 Year

Configure and learn about your Patton SN4300 VoIP Gateway below!

Or call to one of our VoIP Experts at (800)398-8647 or via email at sales@voipsupply.com.

From: $125.00

To: $5,559.97

As Configured: $0.00

Smartnode Gateways are Build to Order. Please allow 3-5 day lead time.
Solution Overview

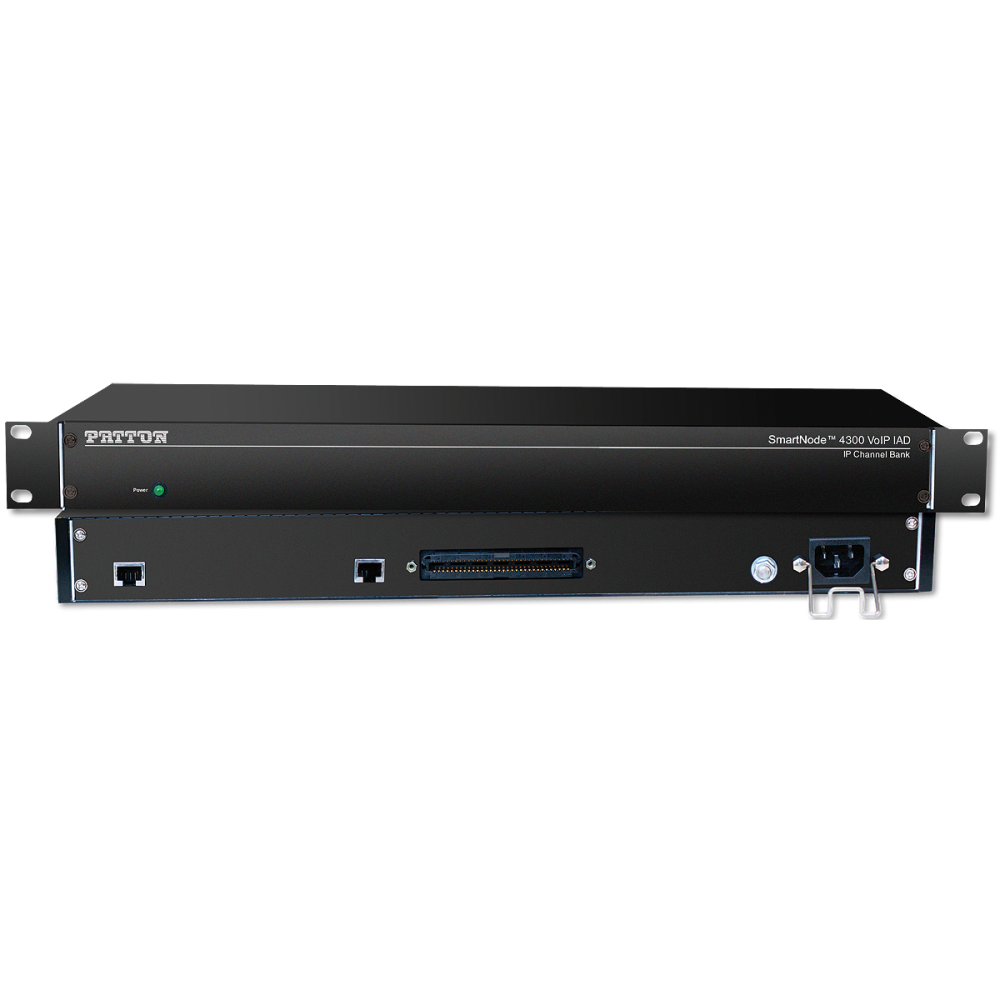

Patton SN4300 VoIP Gateway

Patton Smartnode 4300 VoIP Gateway

The Patton SN4300 series VoIP Gateway gives your system access to up to 32 FXS ports for connecting analog devices to your PBX such as analog telephones, fax machines, or modems. High density SN4300 FXO gateways allow access to the PSTN for failover, local calls, or a gradual migration to VoIP. The ports are accessed through an RJ21 Amphenol connection.

Patton SN4300 Overview:

The SmartNode 4300 Series Ip Channel Bank is the perfect business solution for applications requiring up to 32 concurrent analog voice/fax calls. The IpChannel Bank transforms any PBX system, analog call-center application, or ISP MDU service into a state-of-the-art packet-voice system without requiring costly equipment replacement or upgrades.

There are several models in the SN4300 Series—ranging from up to 32 FXS ports or 32 FXO ports. The Patton 4300 series supports key industry-standard VoIP signaling protocols such as SIP, H.323, and T.38 Fax Relay—plus fax-bypass and modem-bypass. This ensures interoperability with the leading soft switches and VoIP services.

Offering easy setup, reliable operation, and third-party interoperability on a proven platform, the SN4300 Series gateway sits at the core of cost-effective business solutions. The investment protection you need for the future is here today.

Legacy is not bad! While VoIP offers distinct advantages in almost every aspect of communications, in many cases it is appropriate to integrate legacy equipment into a VoIP system rather than replacing it. Patton gateways are the enabler to protect your investment in the analog equipment. It enables enterprises to extend multiple analog lines from a PBX to a remote location with existing cabling or phones, taking advantage of a single IP link to transport up to 32 voice calls. The remote location can be a building around the block as well as a partner in another continent.

For call centers, the SN4300 is the ideal, reliable solution to integrate legacy work desks and cabling into next-generation, VoIP-based call center software.

Click here for the Patton SN4300 Series Datasheet

Patton SN4300 Series Features:

  • --Capacity : 16, 24, 32 simultaneous VoIP calls
  • --Data Services: Now 10/100 Ethernet port • Complete IP access router • DHCP Client & server • Packet fragmentation • NAPT RFC 1631 access control lists
  • --Quality of Service: DownStreamQoS™ • IEEE 802.1p, TOS, DiffServ labeling • IEEE 802.1Q, VLAN tag insertion/deletion (4096 VLAN IDs, multiple VLAN support
  • --Management:Web/HTTP, CLI with local console and remote Telnet access • TFTP configuration & firmware loading • SNMP MIB II and product MIB • Secure autoprovisioning for both firmware and unit/subscriber configuration • Built-in diagnostic tools (trace, debug, call generator)
  • --FXS Connectivity: 2-wire Loopstart on 50 pin (12 to 24 channels) or 64 pin (32 channels) Telco connector • Short haul loop 1.1 km @3REN • EuroPOTS (ETSI EG201188) • Programmable AC impedance, feeding, ring and on-hook voltage • Caller-ID FSK and ITU V.23/Bell 202 generation
  • --FXO Connectivity: 2-wire Loopstart on 50pin (12 to 24 channels) or 64 pin (32 channels) Telco connector • Programmable impedance, ring detection, tone detection, disconnect supervision • Caller ID detection
  • --Voice Signaling: SIPv2 H.323v4 (simultaneously with B2BUA capability) • SIP call transfer, redirect • DTMF in-band & out-of-band • All tones programmable (dial, ringing, busy)
  • --Call Switching and Services: Regular expression based call routing and number manipulation • Number blocking • Short-dialing • Digit collection, distribution and hunt groups • transparent line extension
  • --Voice Processing: Codec G.711 a-law/mu-law, G.723, G.729ab • G.726, G.727. T.38 fax relay • G.711 transparent fax and bypass
  • --System: CPU Motorola MPC875 @ 133 MHz • Memory 32 MB SDRAM/8 MB Flash
  • --Dimensions: 19-in. rack-mount chassis
  • --Compliance: EMC compliance: EN 55022 and EN 55024 • Safety compliance: EN 50950 • CE compliance • FCC Part 15 Class A • RoHS
  • Smartnode 4300 UI Power

    The SN4300 series VoIP gateway can be purchased with an internal UI power supply or an internal 48V DC Power supply. Choose from the following models if you prefer an internal UI power supply.

    Smartnode 4300 48V DC Power

    Choose from the following models if you prefer a Smartnode 4300 gateway with an internal 48V DC power supply.

    Smartnode 4300 FXO Gateways

    Patton high density SN4300 FXO gateways offer PSTN connectivity for local calls, failover, or for migrating slowly from the PSTN to VoIP.

    Add an Amphenol Cable

    The Patton Smartnode 4300 series VoIP Gateway presents its ports using an RJ21 connection. For this, you will need an Amphenol cable. Choose the variation of 50 Pin TELCO cable that suits your needs. If you are purchasing a 32 port SN4300 cable, you will need a 64 pin TELCO cable.

    By clicking this button, VoIP supply will send you an email with a build list and price based on the options configurated for your phone system needs.
