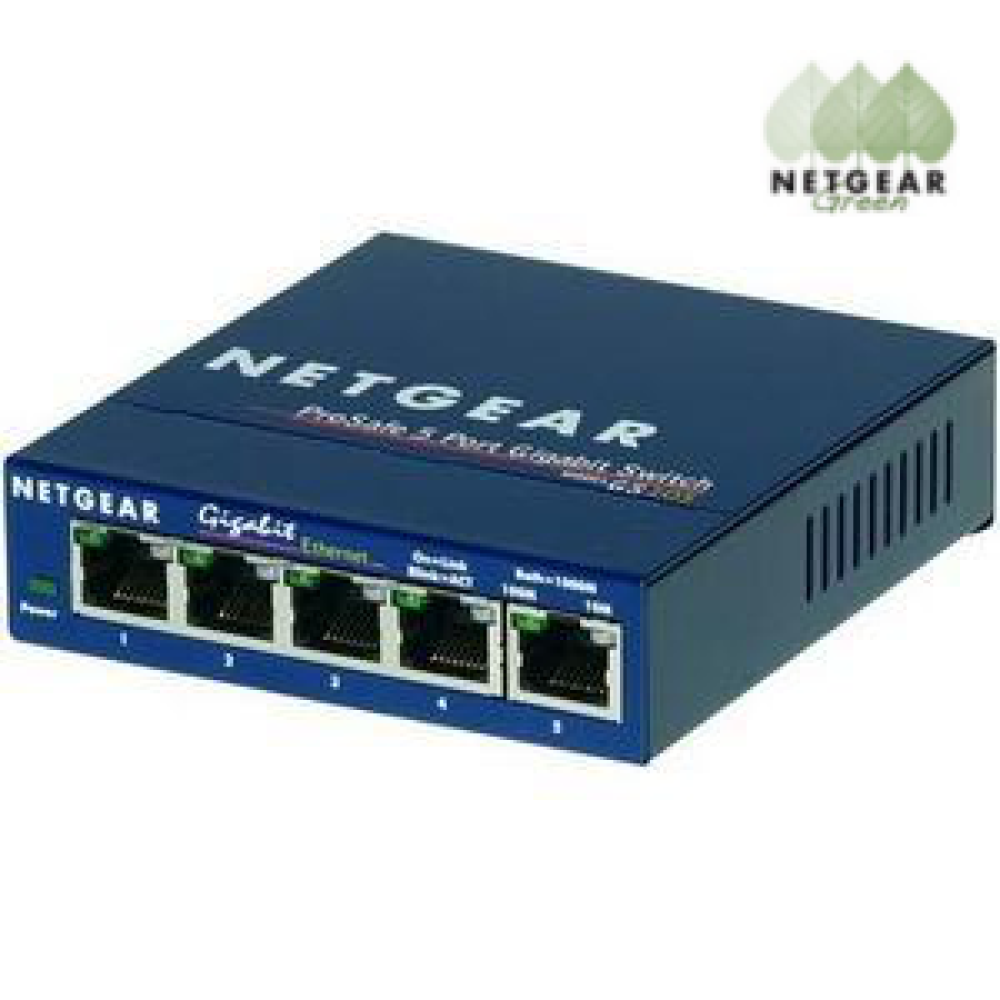

Netgear GS105 ProSafe 5 Port Gigabit Desktop Switch

For a high-speed network on a small scale, nothing delivers likes these compact powerhouses. Equipped with up to eight auto-speed-sensing 10/100/1000 Mbps UTP ports, these affordable switches give your network the capacity to handle huge workloads. If your network is configured to support Jumbo Frames, ProSafe GS100 switches will forward them, as well as honoring priority tags at both the layer 2 and layer 3 level. This means they moves very large files across your network instantly, and keep the high priority traffic moving. Packed with ease-of-use features to simplify your networking experience, its trim design makes it an easy fit for a desk or mounted on a wall. The durable metal chassis protects interior working parts and the fan-less design results in silent operation. Matched with NETGEAR's thorough testing, the ProSafe GS100 switches provide long-lasting performance you can count on.

Netgear GS105 ProSafe 5 Port Gigabit Desktop Switch

Moves huge files fast! Features up to eight high-speed, auto-switching 10/100/1000 Mbps Ethernet connections. And because Gigabit Ethernet is a full duplex standard, you get up to 2000 Mbps on each port. The GS100 Series provides Jumbo Frame support up to 9,000 byte frames. Integrates 10, 100, and 1000 Mbps devices on the same network. Every port automatically senses the right speed and full/half duplex mode, and Auto Uplink technology automatically adjusts for straight-through or crossover cables. Sized to save space, this sturdy metal unmanaged Netgear Switch is compact and fits easily on a desk or mounts on a wall, making it ideal for home and small office environments. LEDs embedded in RJ-45 jacks make for easy monitoring. Provides noiseless operation. Supports PC or Mac O/S operating system.

Netgear GS105 Specifications

Network Ports
  • 5 auto-sensing UTP ports

Forwarding Mode

  • Store-and-forward
  • 128 KB on-chip packet buffering

Performance

  • Bandwidth:
    10 Gbps (non-blocking)
  • Forward rate
    - 10 Mbps port: 14,800 packets/sec
    - 100 Mbps port: 148,000 packets/sec
    - 1000 Mbps port: 1,480,000 packets/sec
  • Latency (using 1500-byte packets):
    - 10 Mbps: 30µs (max)
    - 100 Mbps: 6µs (max)
    - 1000 Mbps: 4µs (max)
  • MAC address database: 4,000
  • Mean time between failures (MTBF): >1 million hours (~114 years)

Status LEDs

  • System power
  • Link, speed, and activity indicators per port built into each RJ-45 port

AC Power

  • Power adapter: 12W, 12V DC, 1A
  • Maximum power consumption:
    - 3.5W

Physical Specifications

  • Dimensions (w x d x h):
    94 x 104 x 28 mm (3.7 x 4.1 x 1.1 in)
  • Weight: 0.30 kg (0.66 lb)

Environmental Specifications

  • Operating temperature: 0º to 50º C (32º to 122º F)
  • Operating humidity: 10% to 90% non-condensing
  • Storage temperature: -20º to 70° C (-4º to 158º F)
  • Storage humidity: 10% to 95% relative humidity

Standards Compliance

  • IEEE 802.3i 10BASE-T Ethernet
  • IEEE 802.3u 100BASE-TX Fast Ethernet
  • IEEE 802.3ab 1000BASE-T Gigabit Ethernet
  • Honors IEEE 802.1p and DSCP priority tags
  • Jumbo frame: up to 9,720 bytes

Safety Agency Approvals

  • C-Tick, CE Mark

Electromagnetic Compliance

  • FCC Class B, VCCI Class B

Warranty

  • Switch: NETGEAR Lifetime Warranty††
  • Power adapter: NETGEAR 2-year warranty

ProSupport Service Packs Available

OnCall 24x7, Category 1

  • PMB0331-100 (US)
  • PMB0331 (non-US)

XPressHW, Category 1

  • PRR0331

Package Contents

  • ProSafe 5-port or 8-port Gigabit Desktop Switch 10/100/1000 Mbps (GS105v3 or GS108v3)
  • Wall-mount kit
  • AC adapter
  • Installation guide
  • Warranty/support information card
  • Didn't find the Networking Equipment you were looking for?

Manufacturer
Netgear
# of Ethernet Ports
5
Ethernet Port Speeds
10/100/1000 Gigabit
Mounting Option
Wallmount, Desktop
POE 802.3af Support
No
Power
Power Supply Included
