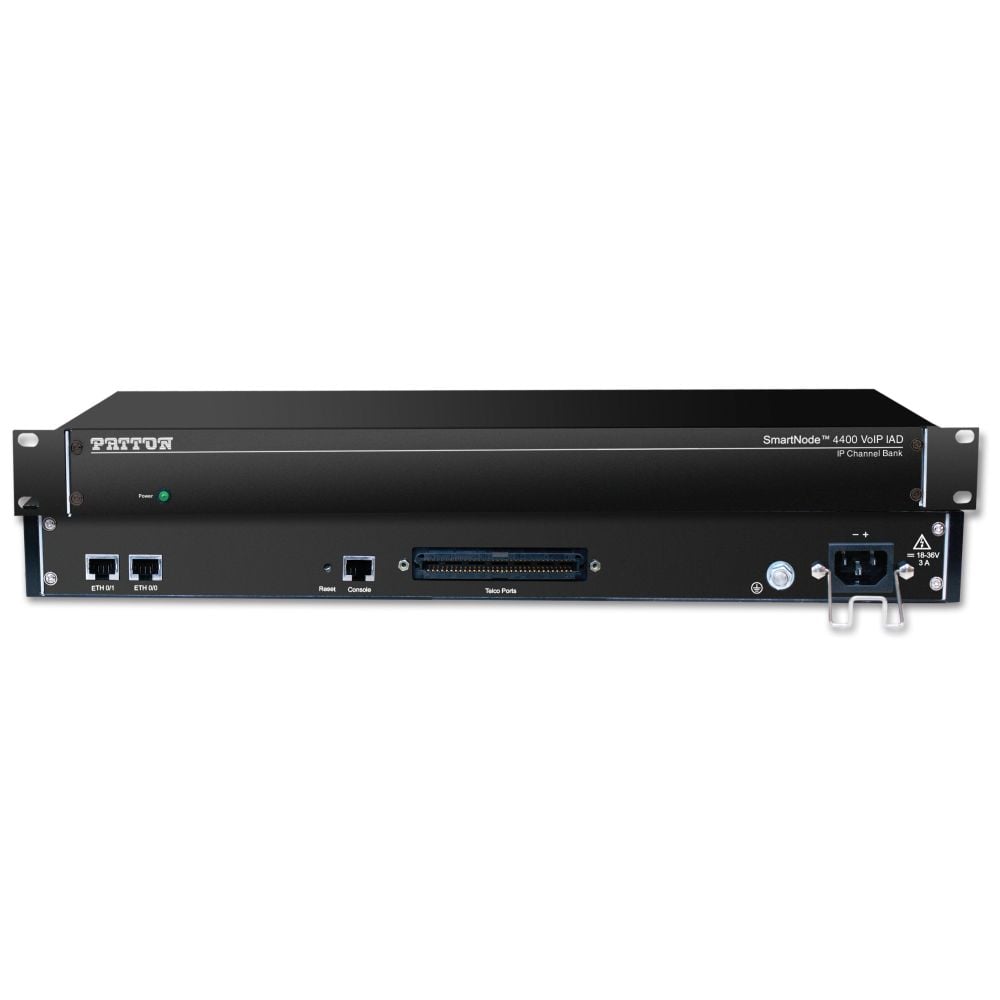

Patton SN4400 VoIP Gateway Router

  • Patton SN4400 Patton SN4400
Smartnode Gateways are Build to Order. Please allow 3-5 day lead time.
Product Details
1 Year

Configure and learn about your Patton SN4400 VoIP Gateway Router below!

Or call one of our VoIP Experts at (800) 398-8647 or via email at

Configure Now

From: $125.00

To: $7,285.00

As Configured: $0.00

As Configured: $0.00

Solution Overview

Patton SN4400 VoIP Gateway Router

Patton Smartnode 4400 VoIP Gateway-Router

The Patton SN4400 series VoIP gateway router gives your system access to up to 32 FXS ports for connecting analog devices to your PBX such as analog telephones, fax machines, or modems. The Smartnode 4400 FXO gateway routers allow you to connect your VoIP phone system to up to 32 PSTN lines for local calling, failover, or a gradual migration to VoIP. The chassis features 2 10/100 Ethernet ports, a single internal power supply (UI or 48V DC) and a Telco connector.

Patton SN4400 Overview:

The SmartNode 4400 Series IpChannel Bank is the perfect business solution for applications requiring 12 to 32 concurrent analog voice/fax calls. Patton gateways transforms any PBX system, analog call-center appication, or ISP MDU service into a state-of-the-art packet-voice system without requiring costly equipment replacement or upgrades.

There are several models in the SN4400 Series—ranging from 12 to 32 FXS or FXO ports. The Patton 4400 series supports key industry-standard VoIP signaling protocols such as SIP, H.323, and T.38 Fax Relay—plus fax-bypass and modem-bypass. This ensures interoperability with the leading soft switches and VoIP services.

Built-in Quality of Service (QoS) features include voice prioritization and traffic management via configurable service-policy profiles. Patton’s advanced DownStreamQoS ensures clear, uninterrupted voice—even over best-effort networks such as the Internet. Packet classification using 802.1p, TOS, and DiffServ makes integration with existing managed QoS networks easy.

Create custom security profiles for a comprehensive security environment. IPsec (optional license) in the SN4400 Series delivers data integrity, authentication, anti-replay and data confidentiality. Firewall capabilities include Access Control Lists (ACLs), IP-address and port filtering, protection against Denial of Service (DoS) attacks, and use of second Ethernet port as DMZ.

Offering easy setup, reliable operation, and third-party interoperability on a proven platform, the SN4400 Series gateway sits at the core of cost-effective business solutions. The investment protection you need for the future is here today.

Click here for the Smartnode 4400 Series Datasheet

Patton SN4400 Series Features:

  • --Capacity : 12,16, 24, 32 simultaneous VoIP calls
  • --Data Services: Two 10/100 Ethernet port • Complete IP access router • DHCP Client & server • Packet fragmentation • Static firewall, NAT, NAPT RFC 1631 access control lists
  • --Quality of Service: • Voice Priority • DownStreamQoS™ • Traffic management, shaping and policing • IEEE 802.1p, TOS, DiffServ labeling • IEEE 802.1Q, VLAN tag insertion/deletion (4096 VLAN IDs, multiple VLAN support)
  • --Management:Web/HTTP, CLI with local console and remote Telnet access • TFTP configuration & firmware loading • SNMP MIB II and product MIB • Secure autoprovisioning for both firmware and unit/subscriber configuration • Built-in diagnostic tools (trace, debug, call generator)
  • --FXS Connectivity: 2-wire Loopstart on 50 pin (12 to 24 channels) or 64 pin (32 channels) Telco connector • Short haul loop 1.1 km @3REN • EuroPOTS (ETSI EG201188) • Programmable AC impedance, feeding, ring and on-hook voltage • Caller-ID FSK and ITU V.23/Bell 202 generation
  • --FXO Connectivity: 2-wire Loopstart on 50pin (12 to 24 channels) or 64 pin (32 channels) Telco connector • Programmable impedance, ring detection, tone detection, disconnect supervision • Caller ID detection
  • --Complete Access Routing: Two 10/100 Ethernet ports with auto MDI-X. Access router with NAT, Firewall, PPPoE, DHCP, DynDNS, multiple VLANs & VPN with IPsec (optional license)
  • --Voice Signaling: SIPv2 H.323v4 (simultaneously with B2BUA capability) • SIP call transfer, redirect • DTMF in-band & out-of-band • All tones programmable (dial, ringing, busy)
  • --Call Switching and Services: Regular expression based call routing and number manipulation • Number blocking • Short-dialing • Digit collection, distribution and hunt groups • transparent line extension
  • --Voice Processing: Codec G.711 a-law/mu-law, G.723, G.729ab • G.726, G.727. T.38 fax relay • G.711 transparent fax and bypass
  • --System: CPU Motorola MPC875 @ 133 MHz • Memory 32 MB SDRAM/8 MB Flash
  • --Dimensions: 19-in. rack-mount chassis
  • --Compliance: EMC compliance: EN 55022 and EN 55024 • Safety compliance: EN 50950 • CE compliance • FCC Part 15 Class A • RoHS
  • Smartnode 4400 FXS UI Power

    The SN4400 series VoIP gateway can be purchased with an internal UI power supply or an internal 48V DC Power supply. Choose from the following models if you prefer an internal UI power supply.

    Smartnode 4400 FXS 48V DC Power

    Choose from the following models if you prefer a Smartnode 4400 gateway with an internal 48V DC power supply.

    SN4400 FXO Gateway-Routers

    Patton high density SN4400 FXO gateway offer PSTN connectivity for local calls, failover, or for migrating slowly from the PSTN to VoIP gateway-routers

    Add IPSec License

    The Smartnode 4400 gateway router offers IPSec as an optional add on.


    The Smartnode 4400 gateway router presents its ports on a 50 PIN RJ21 port (64 pin on 32 port models). If you don't already have one, you will need an Amphenol cable to connect.
