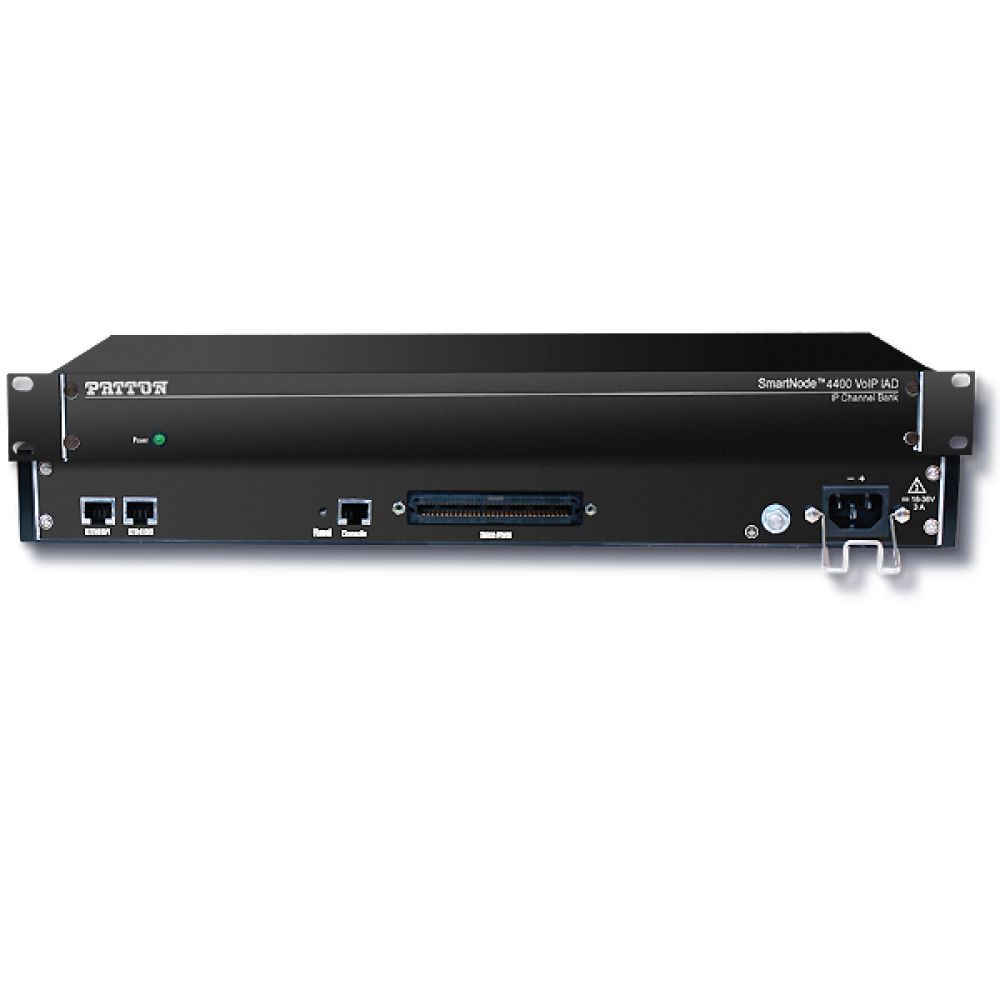

Patton SN4424/JS/UI Gateway

Be the first to review this product

Please allow 7-10 days for delivery

Availability: In stock

Your Price: $1,726.00
Add To Cart For A Better Price!
Your Price: $1,726.00
Add To Cart For A Better Price!
The Patton SmartNode 4424 IPChannel Bank is the perfect VoIP gateway for applications requiring 24 concurrent analog/fax calls within a single redundant solution. Read More
Product Details
1 Year
MSRP Price:

Patton Smartnode 4424 24 FXS Gateway

The Patton SN4400 SN4424/JS/UI VoIP Gateway supports key industry-standard VoIP signaling protocols such as SIP, H.323, and T.38 Fax Relay—plus fax-bypass and modem-bypass. This ensures interoperability with the leading soft switches and VoIP services.

PATTON SN4424/JS/UI 24FXS Gateway Overview:

Built-in Quality of Service (QoS) features include voice prioritization and traffic management via configurable service-policy profiles. Patton's advanced DownStreamQoS ensures clear, uninterrupted voice—even over best-effort networks such as the Internet. Packet classification using 802.1p, TOS, and DiffServ makes integration with existing managed QoS networks easy. Create custom security profiles for a comprehensive security environment. IPsec in the SN4400 Series delivers data integrity, authentication, anti-replay and data confidentiality. Firewall capabilities include Access Control Lists (ACLs), IP-address and port filtering, protection against Denial of Service (DoS) attacks, and use of second Ethernet port as DMZ.

Offering easy setup, reliable operation, and third-party interoperability on a proven platform, the SN4400 Series Patton gateway sits at the core of cost-effective business solutions. The investment protection you need for the future is here today.

PATTON SN4424/JS/UI 24FXS Gateway Features & Functions:

  • Two 10/100 Ethernet ports
  • Complete IP access router
  • DHCP Client & server
  • Packet fragmentation
  • Static firewall, NAT, NAPT RFC 1631 access control lists
  • DMZ port
  • Voice priority, DownStreamQoS, Traffic management, shaping and policing
  • IEEE 802.1p, TOS, DiffServ labeling
  • IEEE 802.1Q, VLAN tag insertion/deletion (4096 VLAN IDs, multiple VLAN support
  • Web/HTTP, CLI with local console and remote Telnet access
  • TFTP configuration & firmware loading • SNMP MIB II and product MIB
  • Secure auto-provisioning for both firmware and unit/subscriber configuration
  • Built-in diagnostic tools (trace, debug, call generator)
  • 2-wire Loopstart on 50pin (12 to 24 channels) or 64pin (32 channels) Telco connector
  • Short haul loop 1.1km @3REN • EuroPOTS (ETSI EG201188)
  • Programmable AC impedance, feeding, ring and on-hook voltage
  • Caller-ID FSK and ITU V.23/Bell 202 generation
  • SIPv2 H.323v4 (simultaneously with B2BUA capability)
  • SIP call transfer, redirect
  • DTMF in-band & out-of-band
  • All tones programmable (dial, ringing, busy)
  • CODEC G.711 a-law/mu-law, G.723, G.729ab
  • G.726, G.727. T.38 fax relay
  • G.711 transparent fax and bypass
  • 9-in. rack-mount chassis
Smartnode 4424
# of FXS Ports
Connection Types
RJ-21 50 Pin Amphenol, **Amphenol Cable Required**
Amphenol Cable Included
# of Ethernet Ports
Protocols Supported
SIP, H.323
Voice Codec Support
G.711 u/a law, G.723, G.726, G.729 a/b
Echo Cancellation
Fax Support
T.38, G.711 pass thru
Provisioning Options
Auto Provisioning, Console CLI, HTTP, TFTP, Web GUI
Mounting Option
Power Supply Included
Modular Slots
MWI Support
Peripheral Port
PSTN Fallback / Failover
PSTN Signalling Support
FXS loop start
Patton SN4424/JS/UI Gateway

Joe Shanahan

Direct: 866-583-0920

Why Pay $1,726.00 for the Patton SN4424/JS/UI Gateway?

  • 24 simultaneous voice or fax calls on all ports. Advanced local call switching.

  • 24 FXS Ports, Full SIP and T.38 support

  • 12 FXS Ports, Full SIP and T.38 support
