Sangoma Express for Lync

  • Sangoma Lync Express Sangoma Lync Express
Product Details
Manufacturer:
Sangoma
Model:
LYNC-TDM
SKU:
02-113794

Configure and learn about your Sangoma Express for Lync below!

Or call one of our VoIP Experts at (800) 398-8647 or via email at sales@voipsupply.com.

Configure Now

From: $7,051.00

To: $43,314.00

As Configured: $0.00

As Configured: $0.00

Solution Overview

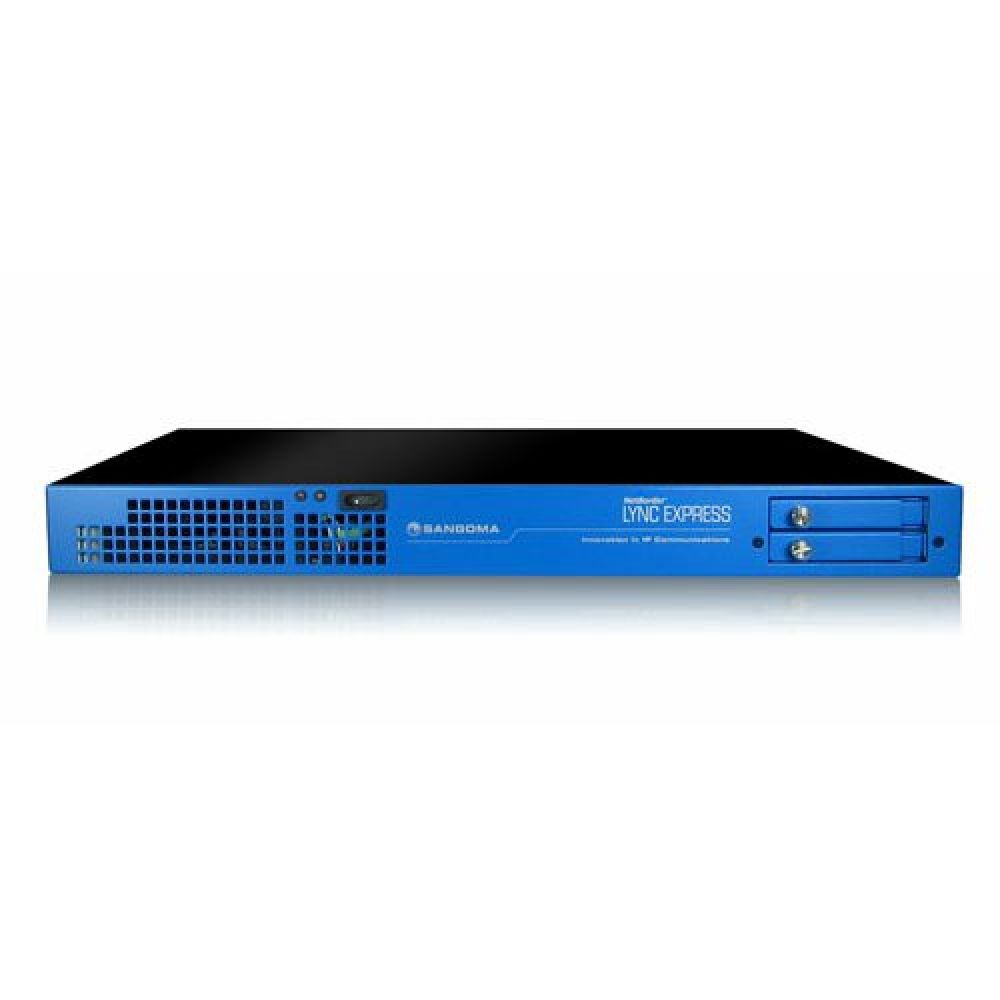

Sangoma Express for Lync

The Sangoma Express for Lync is an all-in-one turnkey Microsoft Lync solution that can support up to 1,000 users . With the Express for Lync employees can take advantage of all the benefits of a Microsoft Lync Unified Communications solution including integration with Microsoft office products, presence and instant messaging and audio, video conferencing and collaboration.

Sangoma Express for Lync All-in-One Lync Server Overview

The Sangoma Express for Lync appliance unifies a full feature standalone Lync Server with its Lync Certified VoIP gateway configurations in a simple and elegant appliance. Express for Lync is the all-in-one quick and easy solution to get you up and running in the post PBX era that is Unified Communications.

The Express for Lync offers a full Microsoft Lync solution with a variety of built-in PSTN, T1/E1 and BRI connectivity options. All the software is pre-installed; all that is needed to do is configure Microsoft Lync.

The Sangoma Express for Lync TDM is available in the following configurations:

    1U Appliances
  • Sangoma LYNC-TDM-D0104-SA1 1 E1T1 + 4 FXS Single AC PSU 100 users
  • Sangoma LYNC-TDM-D0204-SA1 2 E1T1 + 4 FXS Single AC PSU 200 users
  • Sangoma LYNC-TDM-A0602-SA1 6 FXO + 2 FXS Single AC PSU 25 users
  • Sangoma LYNC-TDM-A2202-SA1 22 FXO + 2 FXS Single AC PSU 100 users
  • Sangoma LYNC-TDM-B0402-SA1 4 BRI + 2 FXS Single AC PSU 25 users
  • Sangoma LYNC-TDM-D0404-SA1 4 E1T1 + 4 FXS Single AC PSU 400 users
2U Appliances
  • Sangoma LYNC-TDM-D0804-DA2 8 E1T1 + 4 FXS Dual AC PSU 1,000 users

The Sangoma Express for Lync TDM is available in the following configurations:

    1U Appliances
  • Sangoma LYNC-SBC-025-SA1 25 Calls SBC Single AC PSU 100 users
  • Sangoma LYNC-SBC-025-SA1 50 Calls SBC Single AC PSU 200 users
  • Sangoma LYNC-SBC-025-SA1 100 Calls SBC Single AC PSU 400 users
2U Appliances
  • Sangoma LYNC-SBC-025-SA1 25 Calls SBC Single AC PSU 1000 users

With the Express for Lync Sangoma brings its considerable knowledge of VoIP Gateway and Telecom expertise to the Microsoft Lync channel. The tight integration of NetBorder Express and Lync greatly facilitates the installation of an Enterprise Voice deployment. The cost-effectiveness of our single box solution makes this product stand out in a category of its own in the current Lync market.

Sangoma Express for Lync Features and Functions:

Pre-installed Software
  • Microsoft Windows Server 2012
  • Microsoft Lync Server 2013
  • ---Mediation Server
  • ---Mediation Server
  • ---Edge Server
  • ---Reverse Proxy
  • ---Active Directory
  • Sangoma VoIP Gateway
  • Microsoft Licensing is not included, can be purchased separately
VoIP Protocol Termination
  • TCP or UDP
  • SIP Control Protocol per RFC 3261
  • RTP/RTCP per RFC 3550/3551
Media Processing
  • G.168-2002 Echo Cancellation with hardware option
  • DTMF over RTP per RFC 2833. International and custom tone detection and generation
  • Voice Activity Detection and Comfort Noise Generation (VAD/CNG)
  • T.38 Fax relay
Management and Configuration
  • Web Server
  • Web Services API
  • Configuration files for easy integration into OEM applications
  • SNMP DS0, DS1 and Call Stats MIBS
  • Contextual Help Menus
  • Extensive Logging
  • Automatic Board Discovery
  • Open Protocol Translation and XML based routing rules
  • Configurable ISDN PRI to SIP Mapping per RFC 3398

Sangoma Express for Lync TDM Configuration Options

The Sangoma Express for Lync TDM is available in the following configurations:

SangomaExpress for Lync SBC Configuration Options

The Sangoma Express for Lync SBC is available in the following configurations:

Sangoma Express for Lync SBC and TDM Configuration Options

The Sangoma Express for Lync SBC and TDM is available in the following configurations:
