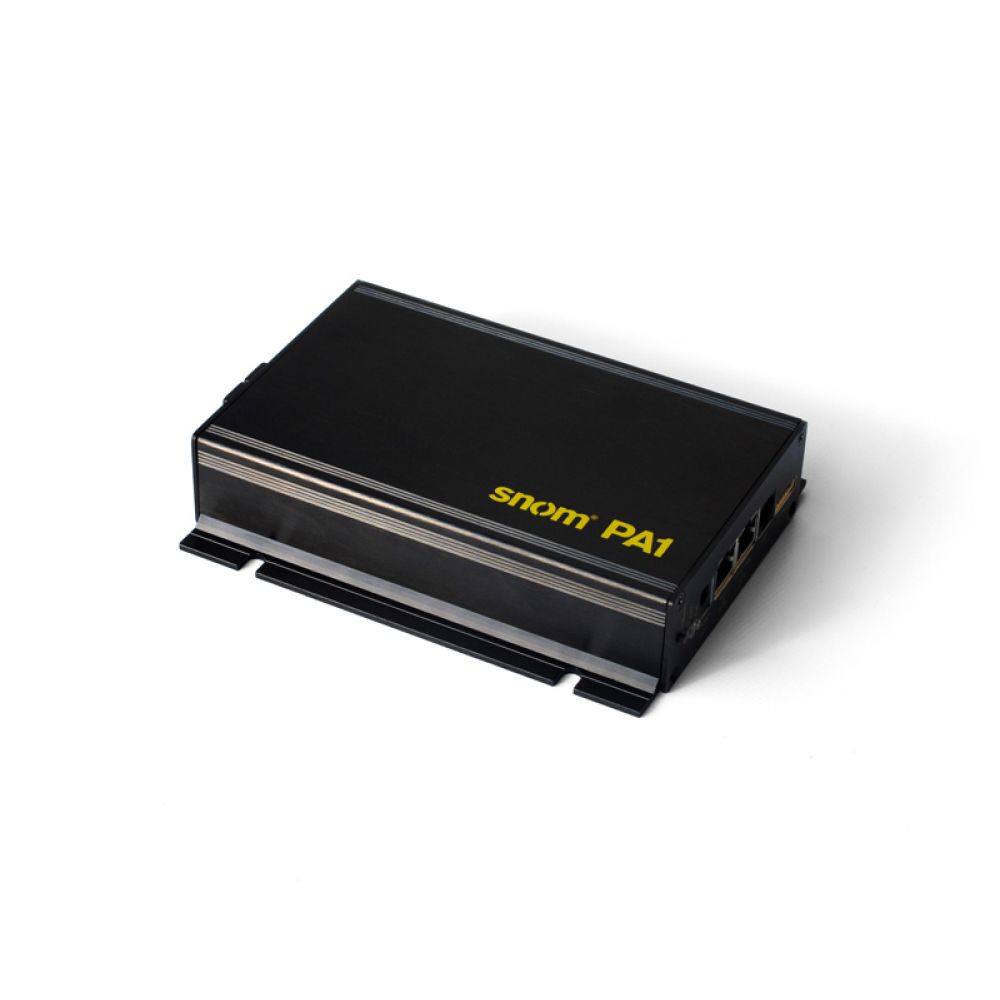

Snom PA-1 Public Announcement System Digital Amplifier for broadcasting announcements over 8 ohm speakers. The audio control system snom PA1 augments your existing SIP PBX with another component of modern communication.
Voltage feed via network (PoE): IEEE 802.3af, class 3
Ethernet: 2 x IEEE 802.3, 10/100 Mbps switch
THIS PRODUCT DOES NOT SHIP WITH A POWER SUPPLY. IF YOU ARE NOT USING A PoE ENABLED NETWORK, YOU MUST PURCHASE A PoE INJECTOR OR USE A STANDARD SNOM POWER SUPPLY.
SIP communication + Multicast
Central configuration and maintenance
Web interface menu
Remote volume configuration
4 Watt power amplifier, class D (loudspeaker not included)
Key for announcement of IP address and for resetting
2 LED status indicators
For maintenance purposes: two 3.5 mm jacks for headphone connection
4 freely programmable output pins, configuration via web interface
Robust housing for wall-mount
We're sorry, there are no downloads available at this time.
For advice, reviews and industry insight... be sure to follow us online.
Questions on Snom PA-1
From DELAXA at 5/31/2014 8:00 PM
Q: Dear Sir
I’m going to buy SNOM AP1 to use it as a public announcement.
I have an IP PBX D-link DVX-2004F
and I wanna make sure that your device is Compatible with Dlink IP PBX
A: SNOM Support RFC 3261 SIP platform that means it is compatible with D Link DVX-2004F PBX.
Q: We recently switched to a cloud-based VOIP phone system provided by ideacom. We have Yealink T42G phones. Can we use the SNOM-PA1 to ring an external bell when a specific extension is called in our shipping dept?
A: Hi Steve,
I don't think you'll be able to ring an external bell, but you could play a ringing sound over a speaker:
great product You need to know a little bit about sip pbx to use these. However if you can setup a phone you can set this up. Multiple options for audio out, customizable from the Web interface and easy paging by setting up a feature code to the snoms extension. We use this to play live calls overhead which takes a little more engineering and I'll let you figure that out...:)
Works exactly as described.
(Submitted on ) | by SnomUser1
Poor Support I have just purchased a SNOM PA1 device. I have been trying to get support from SNOM to no avail. When you call SNOM, you can never reach anyone in Tech Support. Their menu indicates that you have to create a ticket prior to calling support. When you go through their maze of questions online, you are never given the opportunity to create a ticket. Very, very poor support and even worse customer service.
If their phone system is any indication of the quality of their devices, I think I am in big trouble in ever getting this device to work.
