Algo 1203 Call Switch

Algo 1203 Call Switch

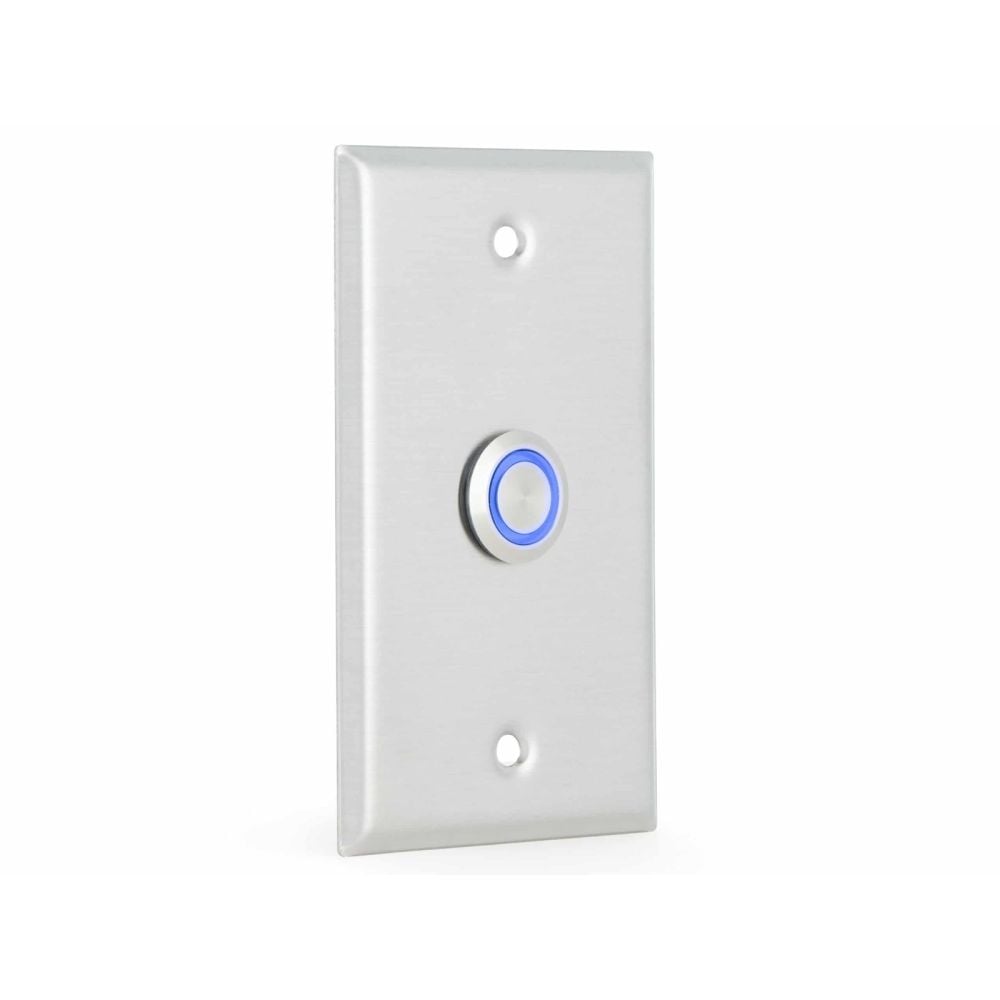

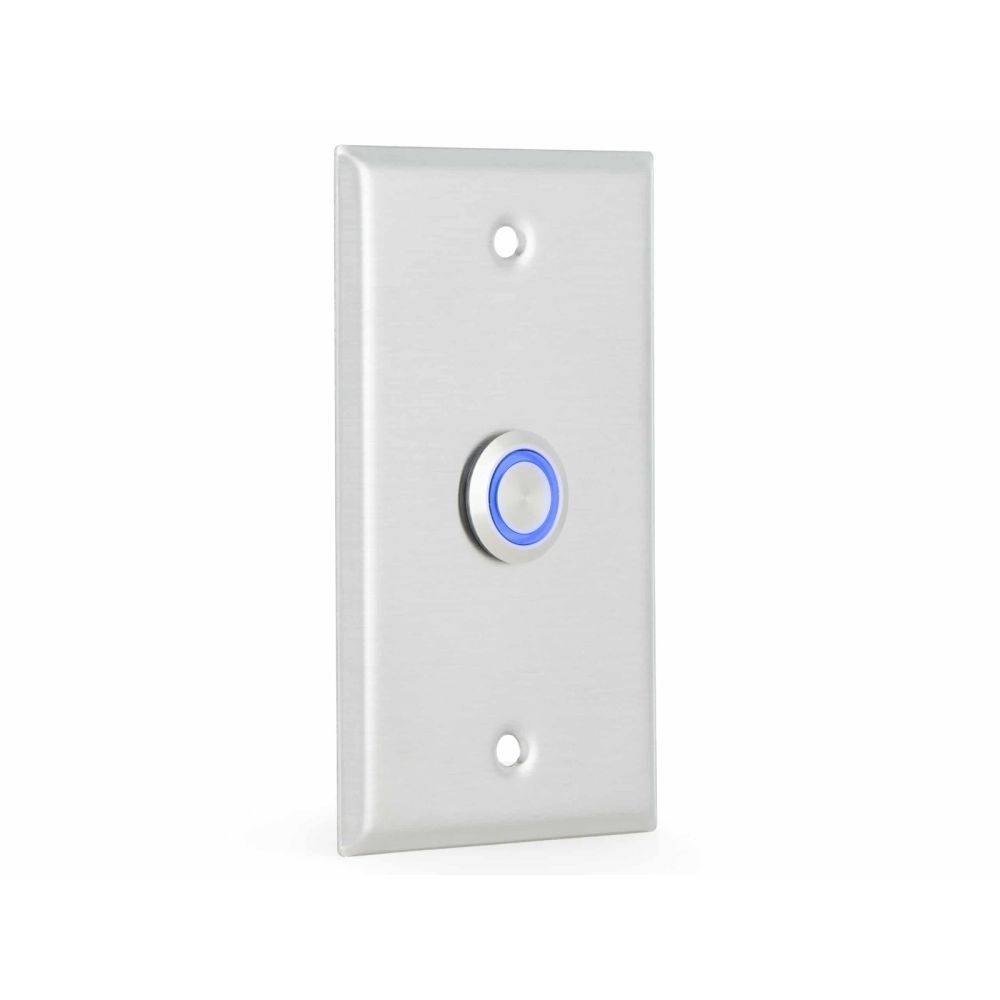

The Algo 1203 Call Switch is the perfect integrated solution for application that requires one-touch programmable page announcement or alert notification. The 1203 is a single gang call switch with an illuminated LED button. The 1203 Call Switch is designed as an intuitive interface for improving customer service or for emergency and non-emergency notification. The Algo 1203 is NOT rated for outdoor environments.

Required: The 1203 requires one of the following Algo products as a SIP interface for operation (connecting via 24 gauge single twisted pair):

• 8189 SIP Surface Mount Speaker
• 8188 SIP Ceiling Speaker
• 8186 SIP Horn Speaker
• 8180 SIP Audio Alerter (G2)
• 8301 Paging Adapter

Configuration options for the Algo 1203 upon a button include: initiate a multicast alert or announcement, make a SIP call to a configured extension and play a discrete notification, or make a SIP call and permit hands-free communication (e.g. via the Algo speaker microphone).

Powered via Algo SIP endpoints including 8180 (G2), 8186, 8188, 8189 and 8301 for simple installation and web configuration

Please notice important ESD Notice in the Getting Started Document

Algo 1203 Call Switch Features and Functions:

• LED button for visibility with flash confirmation when activated
• Single twisted pair extended distance wiring for location almost anywhere
• Fully integrates Algo audible and visual accessories for notification and alerting over any size workplace, campus, or enterprise
• Made in Canada
