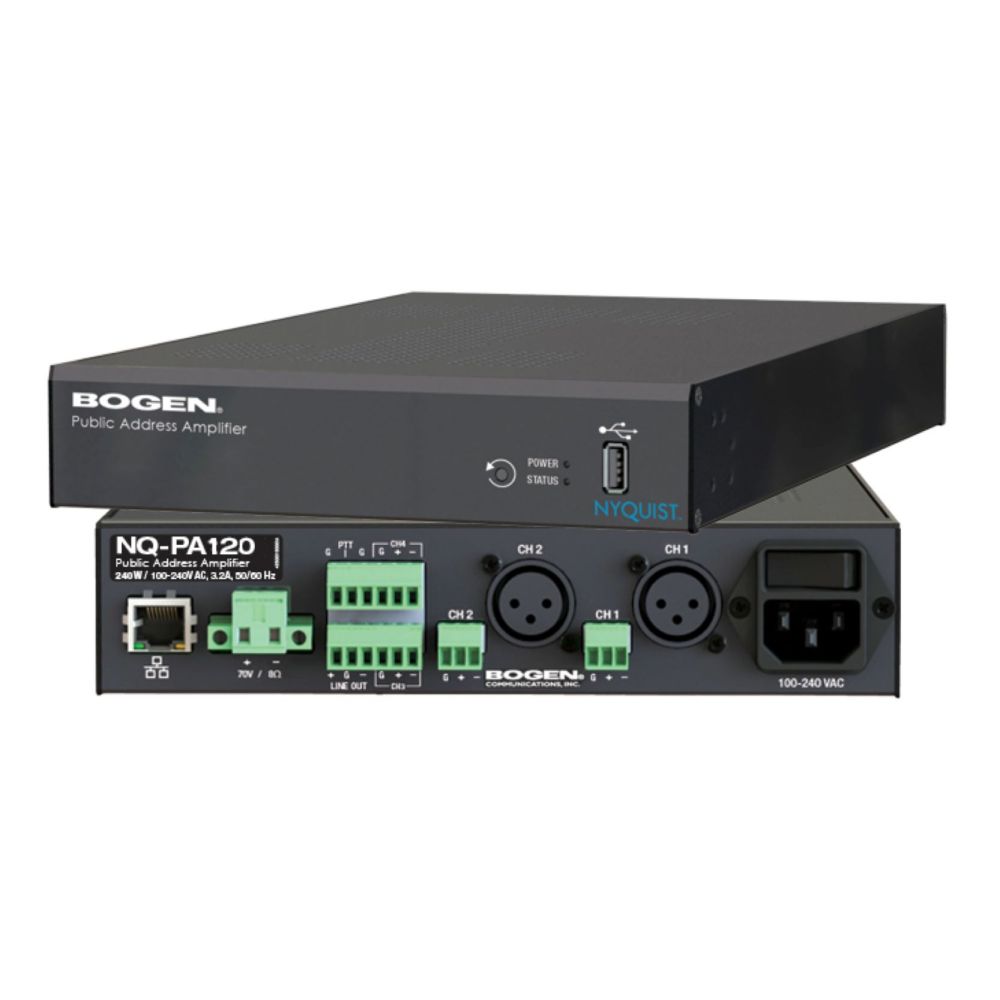

Bogen Communications Nyquist NQ-PA120 1-Channel Public Address Mixer Amplifiers

Bogen’s Nyquist PAMA series networked Public Address Mixer/Amplifiers deliver cost-effective, high-performance audio solutions for commercial installations. Designed for multi-zone paging and background music, these amplifiers feature built-in pro-audio DSP, flexible audio routing, and Class D amplification for exceptional sound quality and efficiency. Available in 120-, 240-, and 600-watt models, the PAMA series supports a wide range of applications from retail to industrial facilities—all without the need for add-on modules.

Bogen Communications Nyquist NQ-PA120 1-Channel Public Address Mixer Amplifiers Features & Specifications:

• 4 MIC/Line Inputs
  • CH1-CH4 configurable balanced/unbalanced inputs via 2 XLR and 4 screw-terminal connections
  • CH4 can be configured to support Push-to-Talk Mic applications
  • Mic inputs can be configured to supply Phantom Power when needed
• Web-based DSP control
  • 16-Band Graphic Equalizer
  • Signal Present and Clip Monitor
  • Adjustable High Pass, Low Pass, and Bandpass Filters
  • Noise Gate
  • Compressor/Limiter
  • 7-band Parametric Equalizer
  • Delay / Peak Limiter
  • Speaker Presets / RMS Limiter / Status
