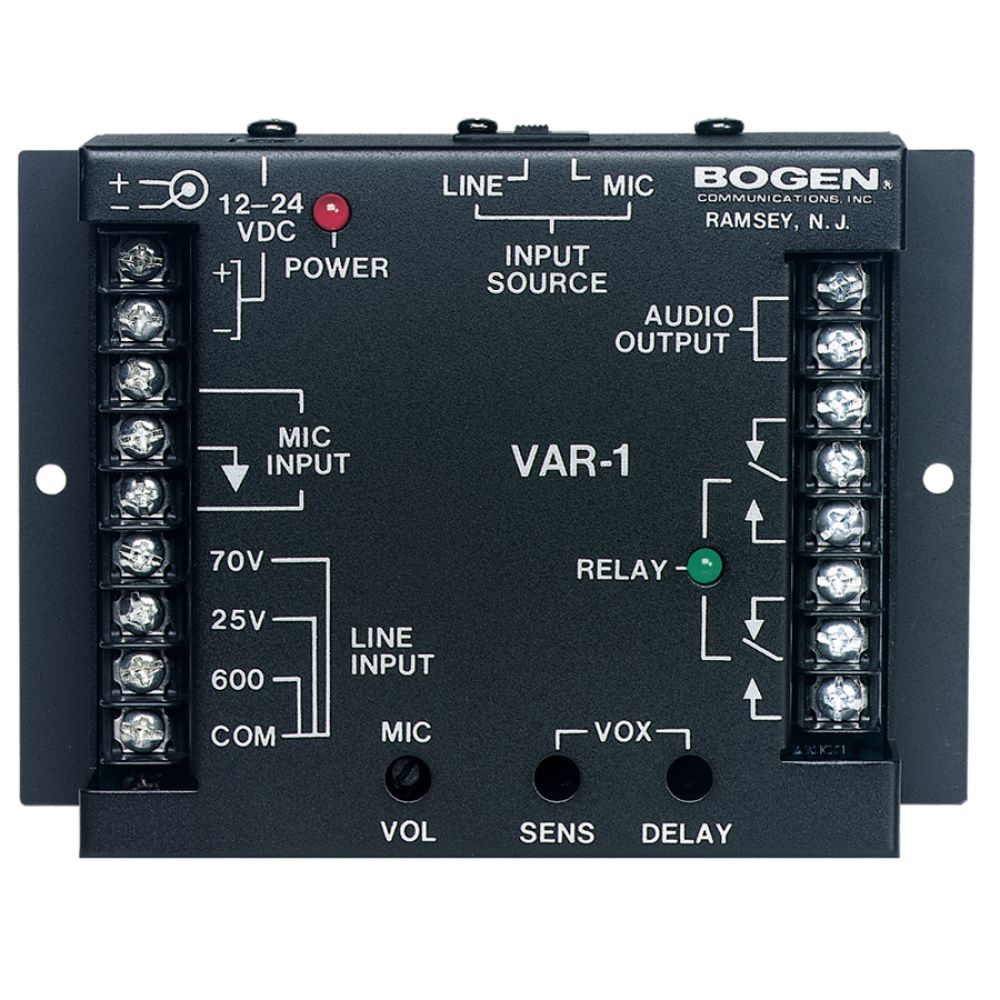

Bogen Communications VAR1 Voice Activated Relay

The VAR1 is an audio-activated relay device that detects sound across a wide input voltage range and triggers two sets of C-Form relay contacts when activity is sensed. It supports input from low-level microphone signals to high-voltage 70V speaker systems and provides a transformer-isolated audio output for integration with other equipment. Additionally, it functions as a balanced, low-impedance microphone preamp and includes an adjustable release delay (up to 25 seconds) to prevent paging interruptions—ideal for phone systems lacking AUX contacts.

Bogen Communications VAR1 Voice Activated Relay Features & Specifications:

• 2 sets of C-Form (N.O. & N.C.) relay contacts respond to audio activity
• 4 levels of input signals: microphone, 600-ohm line, 25V, & 70V speaker systems
• Built-in balanced, low noise, high gain microphone pre-amp
• A transformer-isolated, 600-ohm small signal level output of detected audio available
• Trigger threshold adjustment
