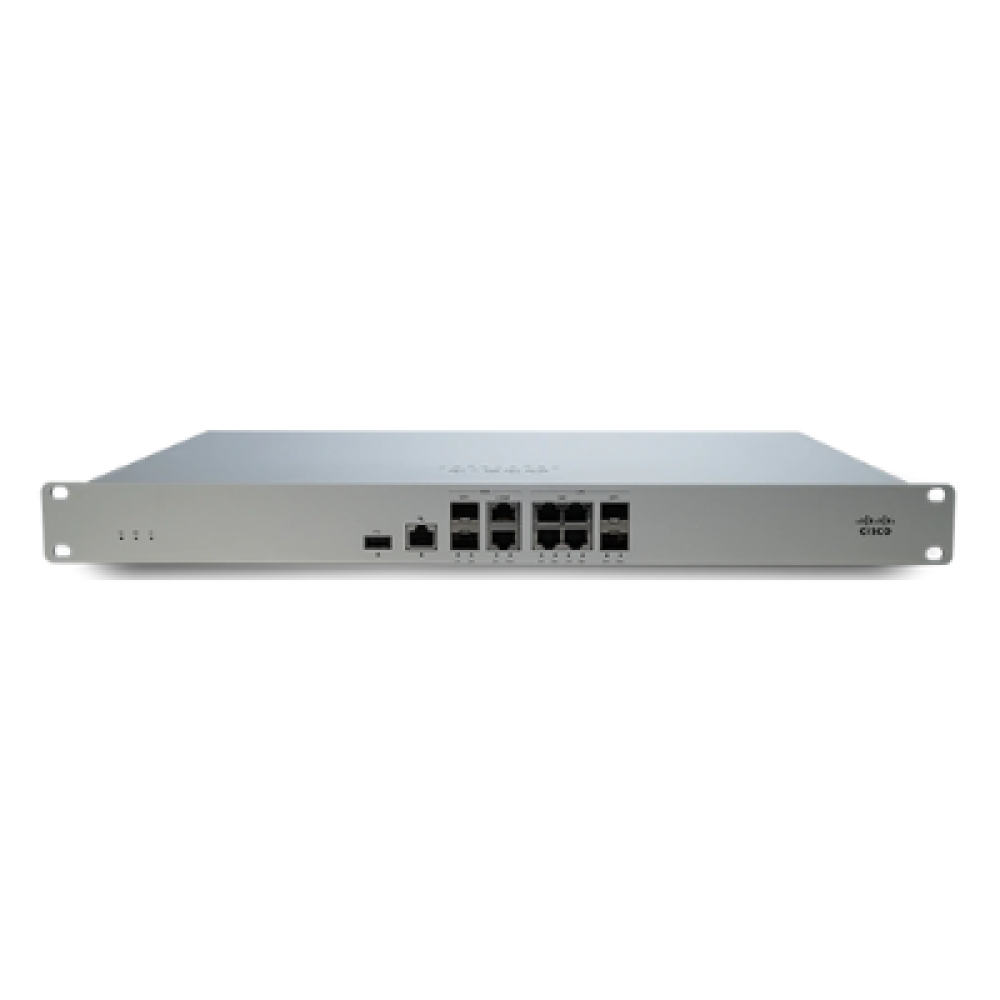

Cisco Meraki Router Security Appliance MX105-HW

Cisco Meraki Router Security Appliance MX105-HW Overview

The Cisco Meraki MX105-HW Router Security Appliance is a part of the Cisco Meraki MX Family of multifunctional security and SD-WAN enterprise appliances. The Cisco Meraki MX Series is 100% cloud-managed with zero-touch provisioning and remote management making it perfect for large branches, campuses, and data center locations. The MX avoids the need for several appliances by being natively integrated with a full set of secure network and assurance features. Application-based firewalling, content filtering, web search filtering, SNORT®-based intrusion detection and prevention, Cisco Advanced Malware Protection (AMP), site-to-site Auto VPN, client VPN, WAN and cellular failover, dynamic path selection, web application health, VoIP health, and more are just a few of the capabilities available. Amazon Web Services (AWS), Microsoft Azure, Google Cloud Platform, and Alibaba Cloud are among the public clouds supported by vMX, while Cisco NFVIS provides private cloud compatibility.

What's Included in the Box:

• 150W power supply (2)
• system fan (2)

Cisco Meraki Router Security Appliance MX105-HW Features

• Up to 750 Users
• Stateful firewall throughput: 3 Gbps
• Advanced security throughput: 1.5 Gbps
• Maximum site-to-site VPN throughput: 1 Gbps
• Maximum site-to-site VPN tunnels^3: 1,000
• WAN interface (dedicated): 2x 10GbE SFP+, 2x 2.5GbE RJ45 (1x PoE+), 1x USB (cellular failover^1)
• LAN interfaces (fixed): 4x GbE RJ45, 2x 10GbE SFP+
• Mounting: 1U rack
• Power supply: Modular 100-127VAC 200-240VAC (50/60Hz) 2 x 150WAC PSU
• Power load (idle/max): 53W/123W
• Operating temperature: 32°F to 104°F (0°C to 40°C)
• Humidity: 5% to 95%
