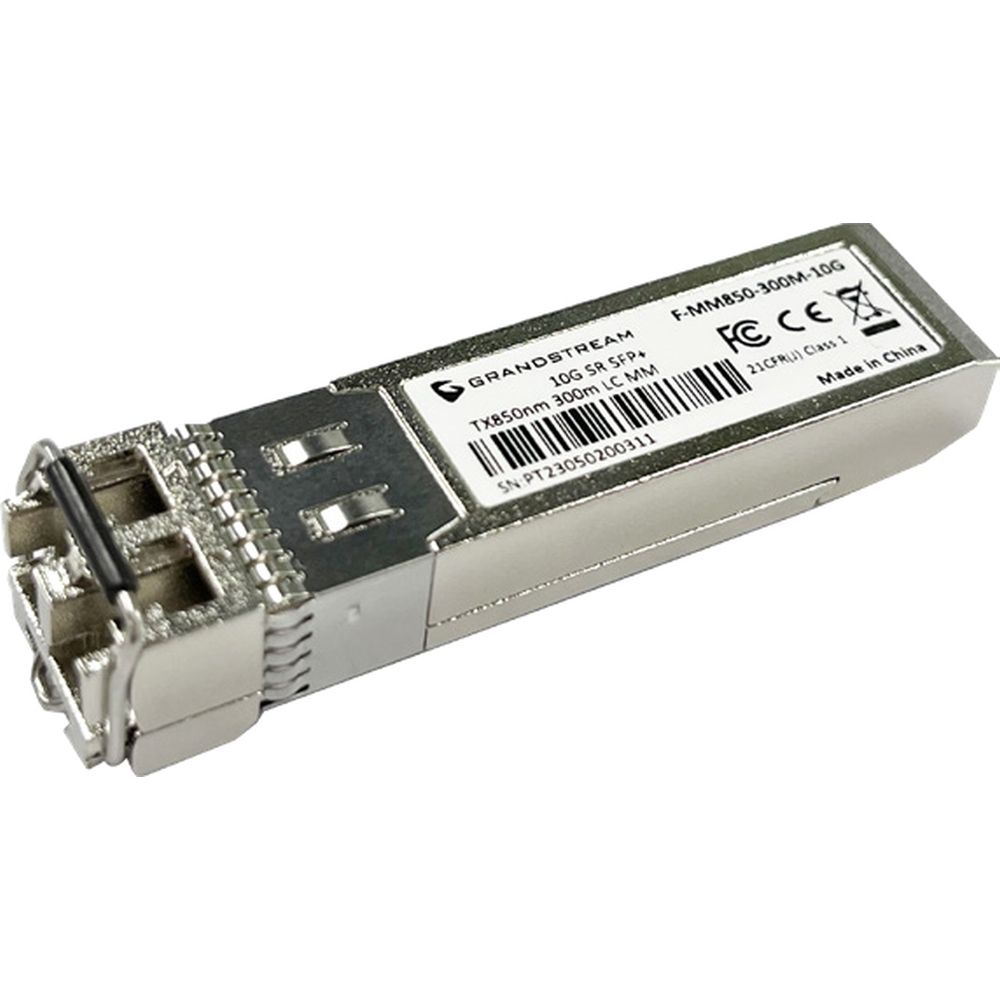

Grandstream F-MM850-300M-10G SFP+ Fiber Module

Offering a broad selection of fiber modules, Grandstream delivers hot-pluggable, small-form-factor transceivers built for 1.25 and 10 Gigabit Ethernet performance. Each module includes a high-sensitivity PIN receiver and signal conditioning capabilities. With minimal EMI, strong ESD protection, and low power consumption, these modules suit enterprise-level LANs and various optical network environments.

Grandstream F-MM850-300M-10G SFP+ Fiber Module Features & Specifications:

• Hot-pluggable small-form factor transceiver modules integrated with the high-sensitivity PIN receiver and signal conditioner for 1.25/10 Gigabit Ethernet applications. SFP modules support very low EMI and excellent ESD protection
• Fiber Mode: Multi-Mode Fiber
• Connector Type: Duplex LC
• DDM: 10Gbps SFP+
• Nominal Wavelength: 850nm
• Data Rate: 10Gbps SFP+
• Max Power Consumption: 1W
• Transfer Distance: 0.3km
• TX Power: -6 to -1dBm, ±3dB
• RX Power: -11.1 to 0.5dBm, ±3dB
• Operation Voltage: 3.3V±0.3V
• Standards: SFF-8472, SFP+ MSA, IEEE 802.3ae, RoHS-6
