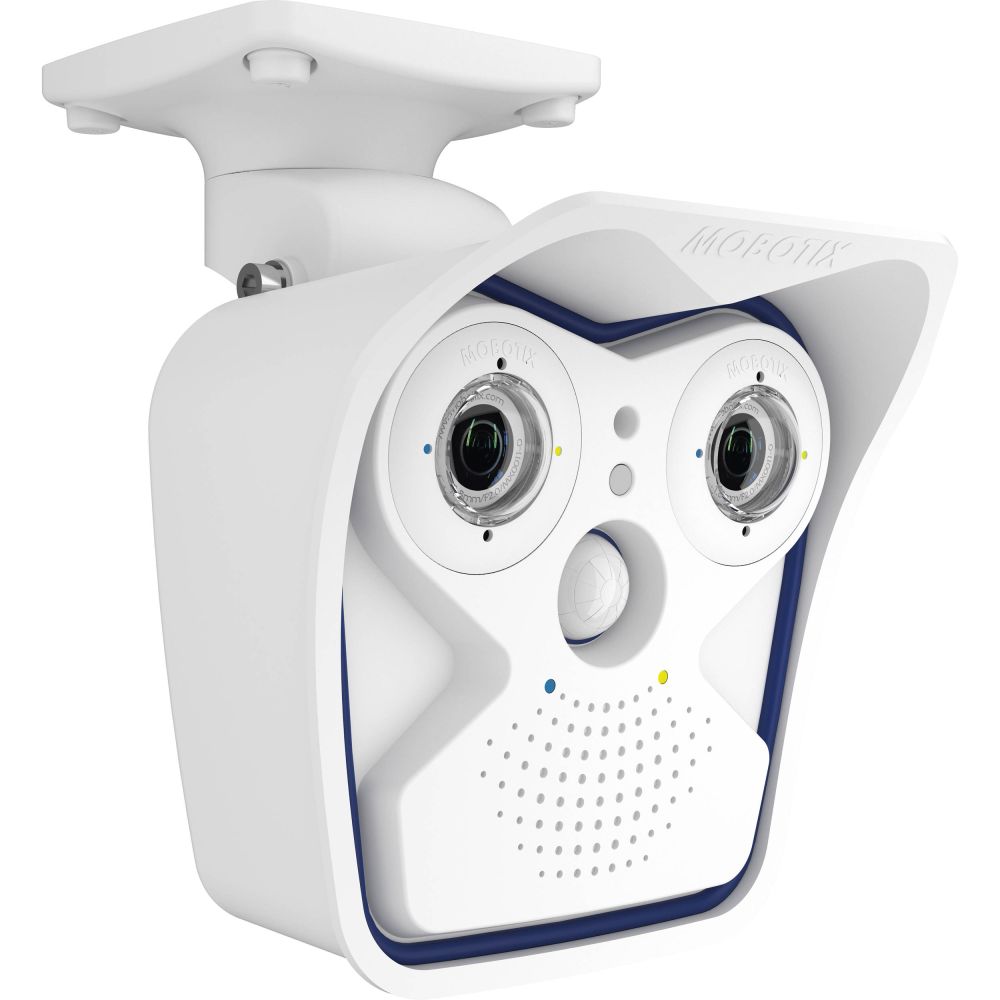

Mobotix M15 Allround Dual Weatherproof Camera (Discontinued)

The Mobotix M15 Allround Dual Camera has been discontinued by the manufacturer and replaced by the Mobotix M16 Allround Dual Camera. For more information or if you have questions, please call 800-398-8647.
Product Details
Manufacturer:
Mobotix
Model:
MX-M15-KIT
SKU:
02-M15-CAM
Tech Specs
Manufacturer:
Mobotix
Model:
MX-M15-KIT-DIS
Camera Type:
Pan/Tilt/Zoom
Wireless:
No
Audio Support:
2-Way
Protocols Supported:
SIP
Guides & Datasheets

We're sorry, there are no downloads available at this time.

Solution Overview

Mobotix M15 Allround Dual Weatherproof Camera (Discontinued)

The M15 AllroundDual is a weatherproof day and night camera suitable for ranging temperatures from below freezing to 140° Fahrenheit. With the interchangeable 5MP image sensor modules (not included) you can choose a varying degrees of field of view or for day or night visibility.

Mobotix M15 Allround Dual Weatherproof Camera Overview

The MX-M15D-Sec is a robust dual camera with (2) image sensor modules (not included) that provide sharp color videos and high-contrast black and white videos. The camera automatically distinguishes day and night and electronically adjusts to use the correct lens for the time of day. The M15 AllroundDual has the right sensor for every application, letting you use your MX-M15D-SEC day or night, indoor or outdoor, and in temperatures ranging from -30 to 140° Fahrenheit. The MX-M15D-Sec also features continuous 8x digital pan, tilt and zoom. It automatically connects to MOBOTIX's free MXEasy software and being PoE, it's low in power consumption.

The M15 comes with a Wall Mount attached and a Ceiling Mount in the box for your convinience. However, the sensor modules for this camera need to be purchased separately. Please NOTE that the M15 requires (2) sensor modules in order for users to enjoy full functionality. Configure your Mobotix M15 Allround Dual Weatherproof Camera below.

MOBOTIX MX-M15D-SEC Features:

  • Housing without sensor module(s)

  • Features one or two sensor modules

  • Suitable for mounting behind a wall or ceiling

  • Robust and maintenance-free, without moving parts

  • In/Outdoor, weatherproof (IP66), -30...+60 °C

  • Sensor modules: L12 - L160, horizontal angle 180° to 13°

  • Max. image size with 2 sensor modules: 4096 x 1536 (6.2 MEGA)

  • Zoom/Pan: Continuous up to 8x Zoom + Pan/Tilt (digital)

  • Max. frame rate: 30 fps (MEGA)

  • Min. light sensitivity: Color: 0.25 lux (t=1/60s) 0.013 lux (t=1/1s) | B/W: 0.05 lux (t=1/60s) 0.0025 lux (t=1/1s)

  • Interfaces: Ethernet 10/100 Mbit, MiniUSB, MxBus, In/Out and RS232 with accessories

  • Internal DVR:[MB] Up to 64GB with MicroSD card

  • Audio functions: Microphone and speaker integrated, lip-synchronous audio, two-way speaker, audio recording

  • Power supply: PoE (IEEE 802.3af/t) 5.0 W

  • Alarm: VideoMotion, MxActivitySensor, external signals, temperature sensor, PIR, microphone, shock detector, notification via eMail, FTP, telephony (VoIP, SIP), visual/acoustic alarm, pre- and post-alarm images

  • Flexible event logic: yes

  • External storage: Up to 4 TB on PC/Server/NAS

No Mount Needed For This Model

Please Select (1) Daytime Sensor Module (Lens) *

Please remember that the M15 camera always requires (2) lenses. You can choose (1) Daytime lens with (1) Night time lens (next option below) If you require two of the same type of lenses e.g two daytime and two night time lenses please call in to place your order.

Please Select (1) Night Time Sensor Module (Lens) *

Please remember that the M15 camera always requires (2) lenses.
