Mobotix S74 High End IP Camera

Configure and learn about your Mobotix S74 High End IP Camera below!

Or call one of our VoIP Experts at (800) 398-8647 or via email at [email protected].

From: $1,000.00

To: $82,725.00

As Configured: $0.00

Configure Now
keyboard_arrow_down
Product Details
Manufacturer:
Mobotix
Model:
S74
SKU:
02-130243
Tech Specs
Manufacturer:
Mobotix
Model:
S74
Camera Type:
No
Solution Overview

Mobotix S74 High End IP Camera

Mobotix S74 High End IP Camera

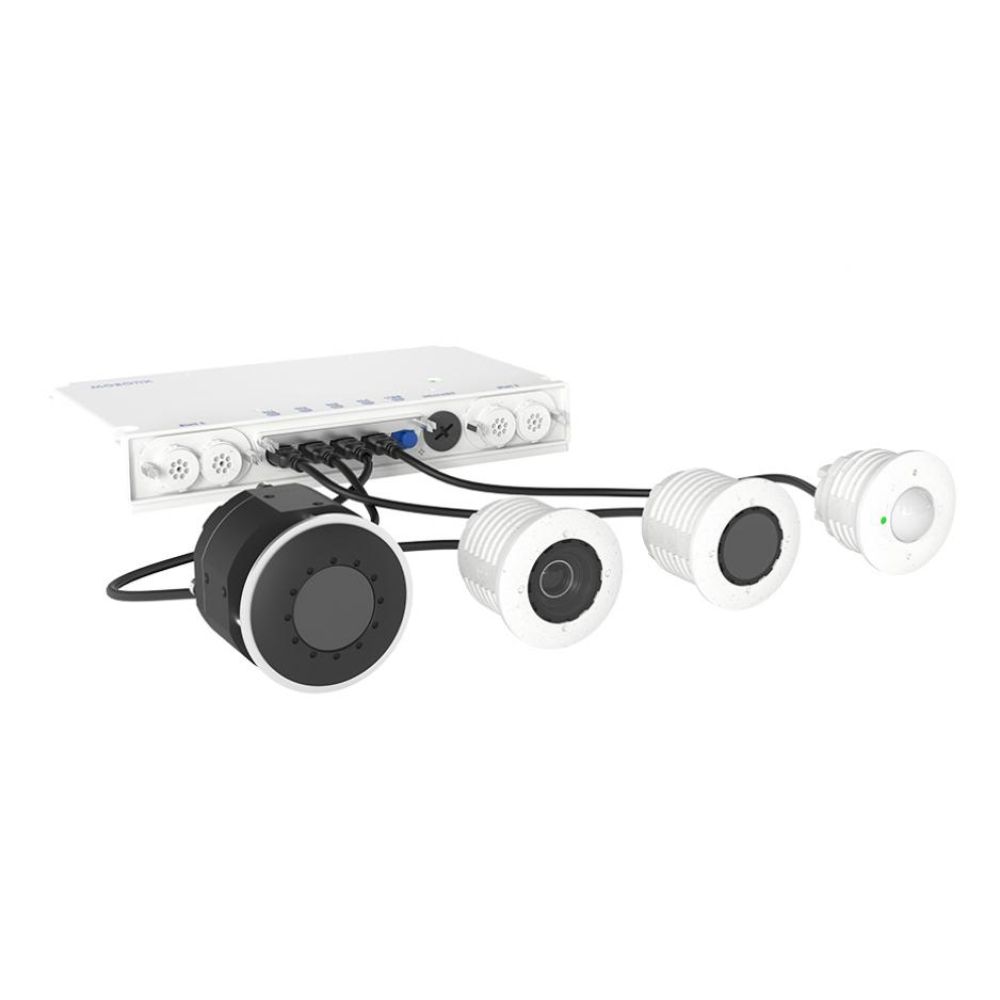

The Mobotix S74 Camera can support up to four sensor modules and function modules that are easy to assemble. Users can choose two optical modules and two function modules simultaneously. In addition if audio is needed, an additional audio board can be used (sold separately).

This is a robust, weatherproof device with the ability to withstand extreme temperatures as well as the option to use 50-mK thermal sensor modules that are easy to retrofit. The S74 can also be used indoors.

The S74 can be installed behind a wall, equipment or ceiling covering where only the sensors are visible. Mounts are available for the S74 in dome-style mounts (mono ount) or two sensors together (dual mount). There is also a manual 3 axes pan and tilt (PT) mount for wall or ceiling installation. All mounts come in the color white.

Mobotix S74 High End IP Camera Features and Specifications:

  • Up to 4K UHD resolution
  • Unsurpassed image quality with minimal light: new ultra-low-light 4MP day and night sensor modules with up to four times greater light sensitivity than the 4K ultra-HD sensor modules
  • Max. image size 3840x2160 pixels, 16:9
  • Enhanced WDR for all image sensor modules (UHD and ultra-low light)
  • Max.frame rate (H.264): 30fp@4K
  • Max.frame rate (Mxpeg+): 20fps@4K
  • Ambient temperature -40 to 65 degrees celcius )-40 to 149 degrees Farenheit)
  • Protection classes IP66 and IK10
  • MTBF (Mean Time Between Failure) >9 years
  • Three-year to eight year warranty (subject to terms)
  • ONVIF profile S and T
  • H.264 triple streaming and H.265
  • MxPEG + (for license-free use of the S74 in MxMC from version 2.2)
  • MJPEG
  • Max. power consumption: 25W
  • Power supply via PoE Class 4 network cable (IEEE 802.3.at)
  • Expandable Internal DVR:8-GB microSD
  • Made in Germany

Mobotix Mx-S74A  *
This is the Body or Housing for 4 Sensors and Functional Modules

1 x Mobotix Body for 4 Sensors and Functional Modules Mx-S74A   +$877.00

Mobotix Mx-F-S7A-RJ45 *
S74 Network slide in board with RJ45 socket

1 x Mobotix S74 Network slide in board with RJ45 socket Mx-F-S7A-RJ45   +$123.00

Mobotix Mx-F-S7A-INT01

S74 Audio IO Slide in Board ***Only select if you want Audio.

Mobotix Thermal Sensor Modules
Add as many thermal modules as needed WITH or WITHOUT (up to four modules TOTAL can be connected to the base.
