Netgear 16x1G/10G Fiber SFP+ Audio Video Switch XSM4216F-100NAS

$1,199.99
Availability: In stock
SKU
02-131162
MPN
XSM4216F-100NAS

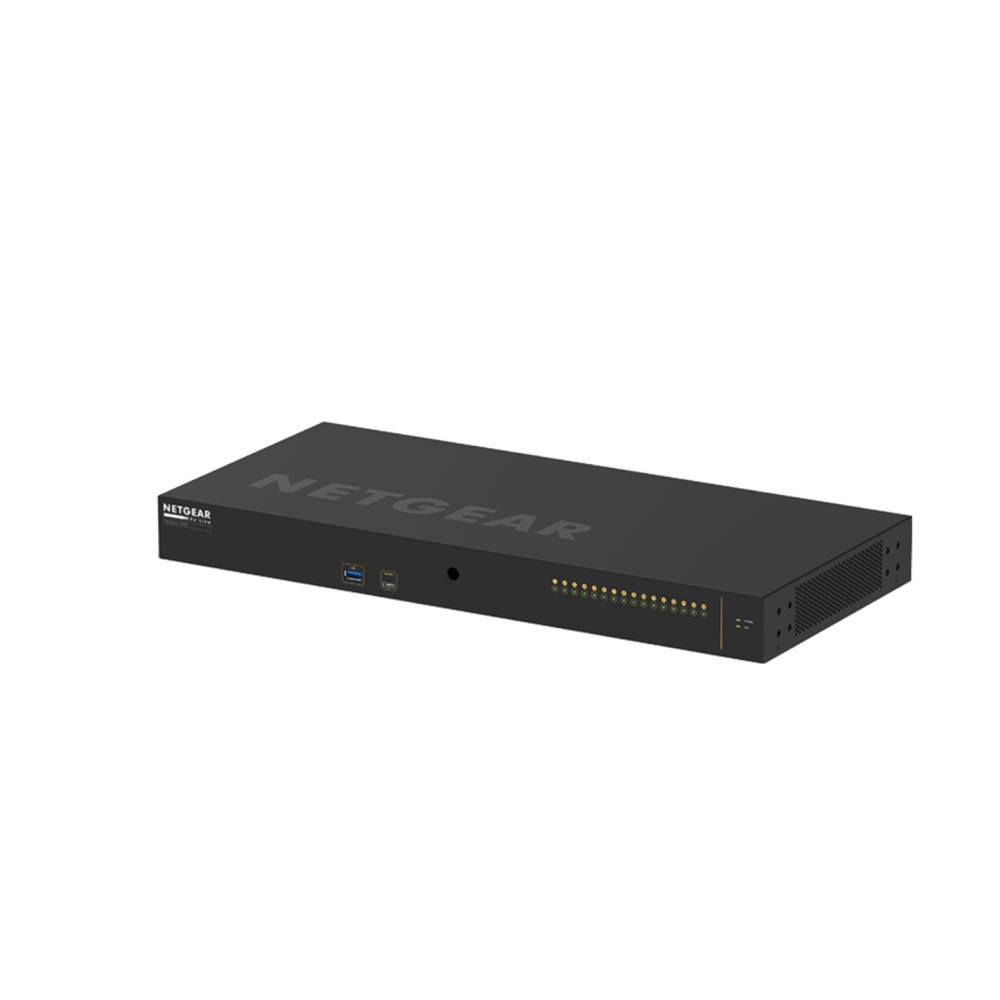

The Netgear XSM4216F-100NAS is a 16 port 1Gig fiber managed switch.

Netgear 16x1G/10G Fiber SFP+ Audio Video Switch XSM4216F-100NAS

The Netgear XSM4216F is part of Netgear's M4250 Audio and Video Series of managed switches. This series has been specially designed and engineered for audio/video professionals. The M450 switches come pre-configured out of the box with audio and video signals but can be customized to specific needs through an AV interface.

Netgear XSM4216F-100NAS Features and Specifications:

  • 16-port 1000/10GBASE-X (SFP+)
  • 320 Gbps non-blocking fabric across 16 ports
  • Out-of-band 1G Ethernet management port
  • USB-C and RJ45 RS232 console ports and USB-A storage port
  • Front black display panel and all ports in the back
  • Possible reversed mounting with ports in the front
  • Rack-mounting standard brackets
  • Longer brackets for recessed mounting (2 inches / 5 cm)
  • Threaded hole in front (1xM10) for clamps
  • Threaded holes on the bottom (4xM5) for 50x100mm VESA plates
  • Selectable fan modes for fanless, quiet, or cool operation
  • Dimensions (WxDxH): 440 x 200 x 43.2 mm
  • Weight: 1.74Kg (3.85lb)

NETGEAR M4250 series key features:

  • Ranges from 8 to 16 ports with a variety of PoE+ and Ultra90 PoE++ options for 15.4W, 30W, 60W, 75W and 90W AVoIP endpoints
  • Uplink options include 1G for audio installations or standalone video installations as well as 10G uplinks for larger-scale video deployments
  • Also includes 12-port multi-gigabit Ethernet and 16-port 1G/10G fiber models for plug and play aggregation in a star topology
  • Designed for clean integration with traditional rack-mounted, AV equipment
  • The M4250 switches come with a sleek, black display panel with status in front and all cabling plus additional status in the back
  • Reversed mounting is possible when ports are desired on the front of the rack
  • A second pair of rackmount ears allows the switches to be mounted recessed by 2-inches to allow for the cabling
  • Software-controlled fan adjustments enable the fans to be turned off when ambient temperature and PoE loads are appropriate for a totally fanless operation
  • Threaded holes on the bottom (4xM5 for 50x100mm VESA) and in front (1xM10 for clamps) allow for universal mounting options outside the rack as well

NETGEAR M4250 series AV software features:

  • Pre-configured for audio and video over IP out of the box, the M4250 switches enable encoders and decoders to be connected with zero configuration
  • When more configuration is required, an AV web-based GUI is available at the switch IP address:8080
  • This interface has been specially designed for AV installers with specific AV-related controls made more accessible and with port-based profiles
  • For audio, profiles for Dante, Q-SYS and AES67 are built-in, as well as an AVB profile (AVB license sold separately
  • For video, the M4250 offers profiles for NVX, SVSI, Q-SYS, NDI, Kramer KDS, Aurora Multimedia, ZeeVee, Atlona, Dante and SDVoE
  • Other AV CODECs and manufactures are supported as well as audio/video/ control mixed profiles
  • To further simplify star deployments, NETGEAR IGMP Plus™ brings multicast automation between all M4250 switches, and with M4300/M4500
  • Simply connect the switches together and you are done!

NETGEAR M4250 series other software features:

  • All M4250 switches share the same high-end NETGEAR Layer 2 / Layer 3 switching engine for a consistent experience
  • All switches in the M4250 series have another main, IT web-based GUI for midsize Enterprise campus networks, IoT and IPTV
  • Additional features include static, RIP and PIM-SM, DM and SSM multicast routing, DHCP Server and PTPv2 Transparent Clock (1-step E2E)
  • AVB is the only feature requiring a license, all other advanced features are available license-free
  • Advanced classifier-based, time-based hardware implementation for L2 (MAC), L3 (IP) and L4 (UDP/TCP transport ports)
  • Selectable Port-Channel / LAG (802.3ad - 802.1AX) L2/L3/L4 hashing for fault tolerance and load sharing with any type of Ethernet channeling
  • Voice VLAN with SIP, H323 and SCCP protocols detection and LLDP-MED IP phones automatic QoS and VLAN configuration
  • Efficient authentication tiering with successive DOT1X, MAB and Captive Portal methods for streamlined BYOD
More Information
SKU 02-131162
Shop By Brand Netgear
UPC 606449149692
Model XSM4216F-100NAS
MPN XSM4216F-100NAS
MSRP $1,871.91
