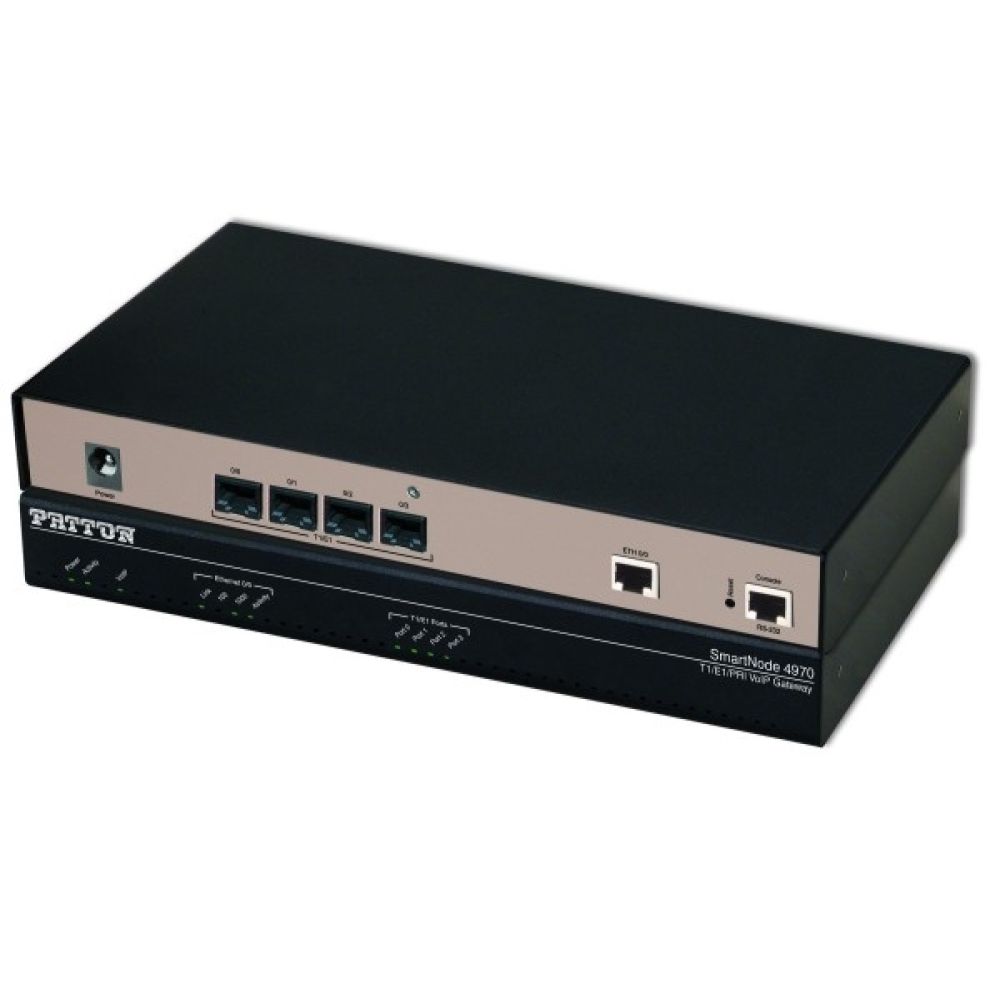

Patton SN4970A/4E30V60RHP/EUI VoIP Gateway

$3,633.84
Availability: In stock
SKU
02-126080
MPN
SN4970A/4E30V60RHP/EUI
The SN4970A VoIP Gateway offers Enterprises a cost-effective solution to IP-enable legacy PBX systems.

Patton SN4970A/4E30V60RHP/EUI

The Patton SN4970A VoIP Gateway offers enterprises a cost-effective solution when transitioning to IP-enabled legacy PBX systems. The 4070A series comes equipped with Trinity software containing a variety of features.

The Sn4970A supprts every industry-standard CODEC to deliver toll-quality voice on every call. The Unified Communications Agent™ (UCA) provides any-to-any multi-path switching (simultaneous SIP, ISDN, and POTS calls with routing and conversion between TDM/PSTN and IP/Ethernet networks—plus T.38 and SuperG3 FAX). VoIP-over-VPN with voice encryption provides secure voice and data via IPsec with AES/DES strong encryption and automated keying via Internet Key Exchange (IKE). In addition, advanced call-router functionality includes least-cost call routing with flexible dialed-number plan support. The Sn4970A/4E30V60RHP/EUI contains 1 E1/T1 PRI, 40 VoIP Calls that are upgradeable to 60, or 15 SIP to SIP Calls (SIP b2b Ua) that is upgradable (max. 80)

Patton Cloud Logo*Compatible with Patton Cloud

Patton SN4970A/4E30V60RHP/EUI Features

  • Trinity OS - Advanced feature set including SIP TLS/SRTP, IPv6 ready, and Cloud capable Software Comparison
  • 15 to 120 VoIP calls—with up to four T1/E1/PRI ports and a single Gigabit Ethernet port.
  • Proven Interoperability—SIP interop with major IP PBX, Softswitch and VoIP Service Providers. Over 100,000 SmartNode deployments worldwide. ISDN/PSTN compliance in nearly every country.
  • Transparent Telephony Features—Complex number manipulation and mapping for seamless integration with existing infrastructures, CLIP, CLIR, hold, transfer and much more.
  • High Precision Clock—Delivers DECT PBX interoperability with reliable fax performance.
  • Flexible Mounting Options—The device can be placed on a desktop or installed in a 19-inch rack using the optional rack ear kit (INS-KIT-RACKEARS-11/19)


More Information
SKU 02-126080
Shop By Brand Patton
UPC 847840013292
Model SN4970A/4E30V60RHP/EUI
MPN SN4970A/4E30V60RHP/EUI
Digital Signaling Type T1, E1
Ethernet Port Speeds 10/100/1000 Gigabit
# of Simultaneous Calls Up to 30
