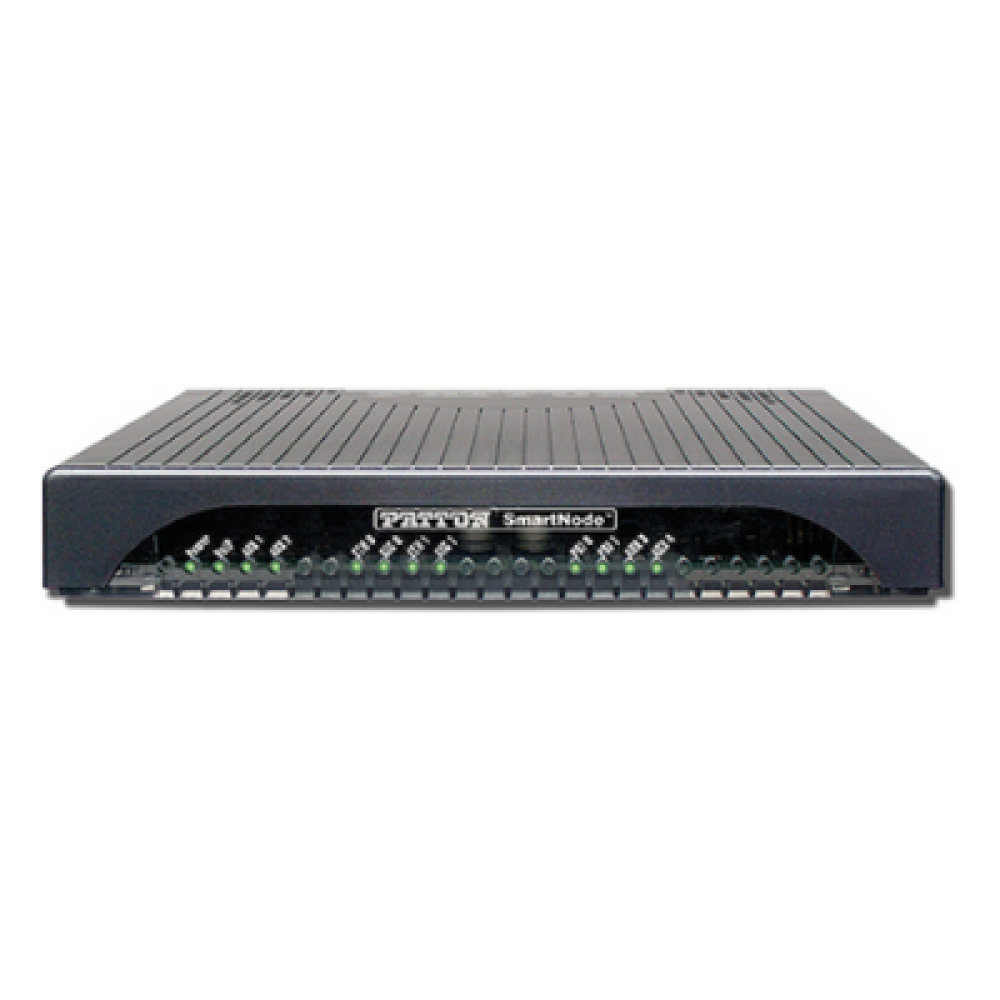

Patton SN5540 SN5541/2JS2JO4V/EUI Session Border Controller

Patton SmartNode 5540 SN5541/2JS2JO4V/EUI Session Border Controller Overview

The SN5540 is ideal for All-IP applications requiring the integration of legacy, non-replaceable analog equipment into a UCC environment. The SmartNode serves as a connection termination point toward the enterprise for pure All-IP networks, with an optimized Broadband connectivity termination for G.SHDSL, VDSL, ADSL, or Fiber SFP. All-in-one unit, the SN5540 serves as a VoIP Gateway, eSBC, Access Router, and QoS CPE. It may also perform network evaluation and analysis at the customer's location, using Patton Cloud network monitoring to avoid, minimize, and fix network and voice quality issues.

Patton SmartNode 5540 SN5541/2JS2JO4V/EUI Session Border Controller Features

• 2 FXS and 2 FXO
• 4 VoIP or 2 SIP-SIP Calls (SIP b2b UA) upgradeable (max. 200)
• 4 Transcoded SIP Calls
• SIP-TLS, SRTP
• 2x Gig Ethernet
• 1x USB port
• External UI power (100–240 VAC)
• Patton Cloud Orchestrated
• Made in the USA
