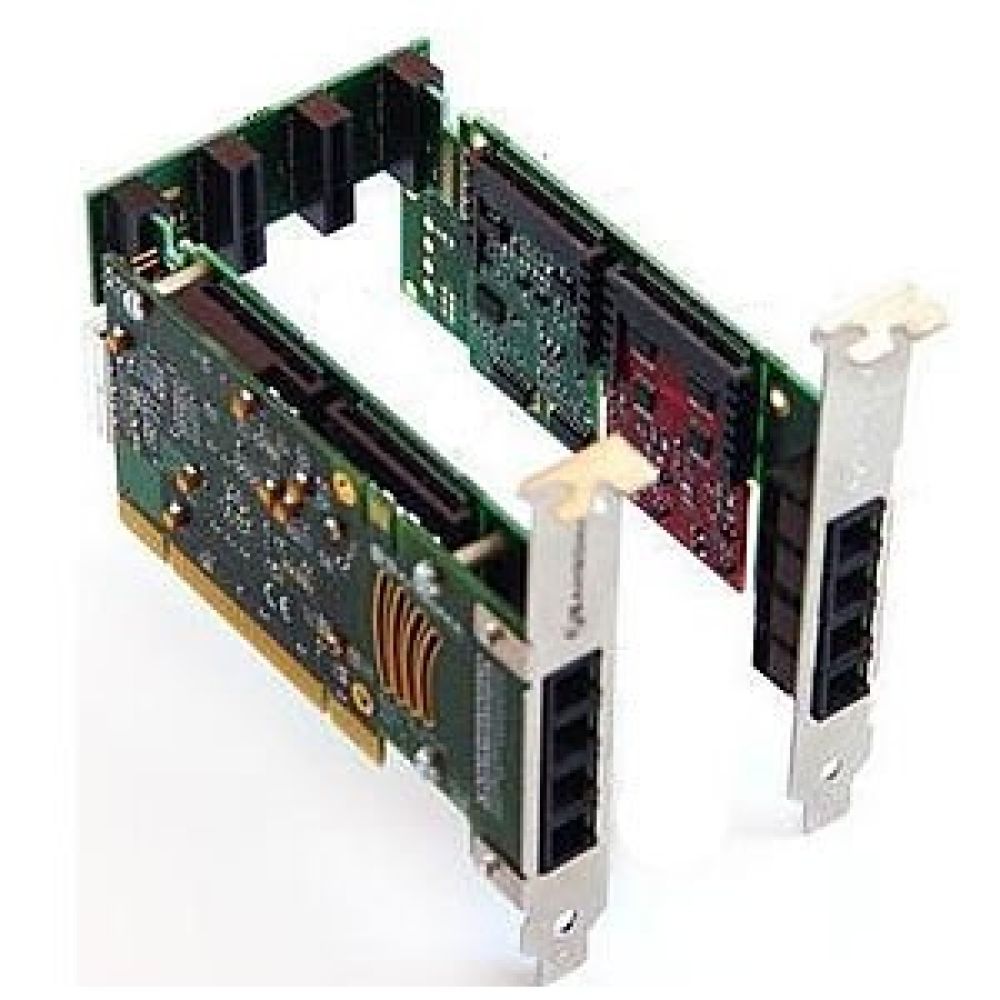

Sangoma Remora A20004E 8FXO PCI Express Card

The A200 AFT architecture is shared with Sangoma's A101, A102, A104 and A108 cards ensuring common 3.3 V or 5 V, high performance and universal PCI or PCI Express compatibility.

Sangoma Remora A200 PCI Express Analog FXS FXO Card

Like all the Sangoma AFT Series, the A200 and Remora(tm) system has field upgradeable firmware to take advantage of enhancements as they become available.

Sangoma A200 Remora PCI Express Card Features:

• From 2 to 24 ports supported, mixing FXO and FXS interfaces, as required.
• Single synchronous PCI interface for all 24 FXO/FXS ports.
• Four RJ11 ports per Remora(tm) card.
• Dimensions: 2U Form factor: 120mm x 55 mm for use in restricted chassis.
• 32 bit bus master DMA data exchanges across PCI interface at 132 Mbytes/sec for minimum host processor intervention.
• Optional DSP Echo Canceller Daughterboard on the A200D
• G.168-2002 echo cancellation in hardware.
• 1024 taps/128ms tail per channel on all channel densities.
