Sangoma D100-240e

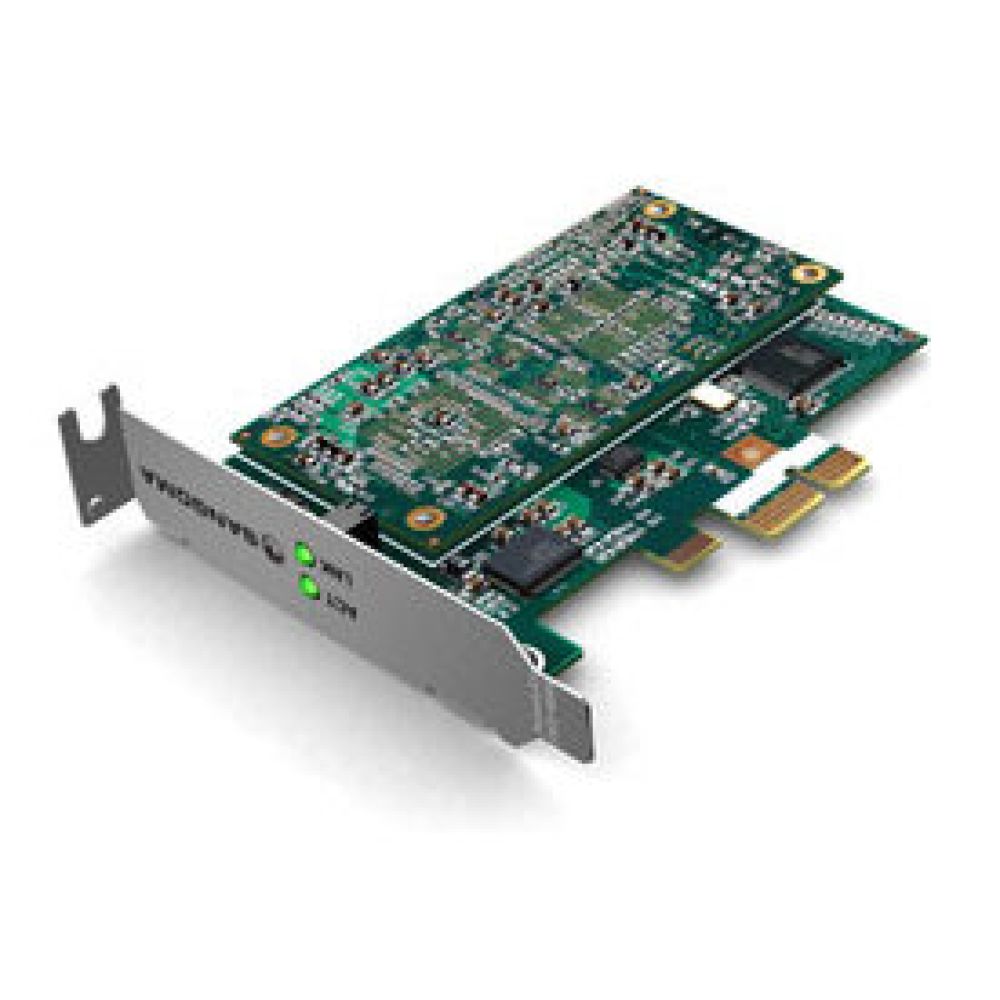

Sangoma D100-240E PCIe Transcoder Card - 240 Sessions

Sangoma D100-240e. The industry's first affordable PCI Express voice transcoding card – designed for optimum voice quality for low to high density system, offering 30 transcoding sessions in one compact 2U form factor!

Sangoma D100-240e Product Overview

IP telephony applications commonly require the use of multiple voice codecs, used to digitally compress voice signals and save on bandwidth. Voice signals from the Public Switched Telephone Network (PSTN) come in the form of the G.711 codec, but the VoIP terminal equipment and networks can support a variety of different voice codecs, such as G.729, G.726, AMR, G.722, iLBC, etc. The VoIP infrastructure needs the capability to mediate between endpoints supporting different codecs, but this functionality requires digital signal processing tasks that are often costly and resource-intensive, and can affect the quality of the voice signals, if it introduces too much latency and delay.

The D100 card, available in PCI and PCI Express form factors, converts simultaneous channels of transcoding from one type of codec (e.g. G.711) to another (e.g. G.729), without affecting latency or using up precious host CPU resources. The card allows up to 240 channels of anytime-any voice codec conversion, with unmatched quality. All codecs are fully indemnified; no additional licensing is required for their use.

The D100 works with both Asterisk® and FreeSWITCH™. With compatible drivers, these applications can use the D100 cards as seamless voice transcoding resources.

Sangoma D100-240e Features

Codec Support

• G.711
• GSM-FR
• G.722
• GMS-EFR
• G.722.1
• AMR
• G.723.1
• AMR-WB (G.722.2)
• G.726
• L8 (Linear 8K)
• G.729AB
• L16 (Linear 16K)
• iLBC
