Valcom Volt Expander
The Valcom V-1095 is made to expand existing 8 Ohm/25/70/100V paging systems without replacing the main amplifier. A V-1094A preamp expander may also be required depending on the number of speakers added.
Valcom Volt Expander Overview:
The Valcom V-1095 70V Paging Expander is used to expand 8 Ohm, 25V, 70V or 100V systems into amplified speaker assemblies. The unit comes with its own surface mount box which provides 1/2" conduit access. The unit will accept input signal from a 8 Ohm, 25V, 70V or 100V paging system and reduce it to a low impedance reduced level output. The V-1095 provides master volume control convenience to all a portion of a paging zone.
Valcom Volt Expander Features:
- Frequency Response: 50 Hz to 20 kHz + 3 dB
- 100 V: 20 k Ohm / 70 V: 10 k Ohm / 25V: 1.25 k Ohm
- Output Impedance : 8 ohms

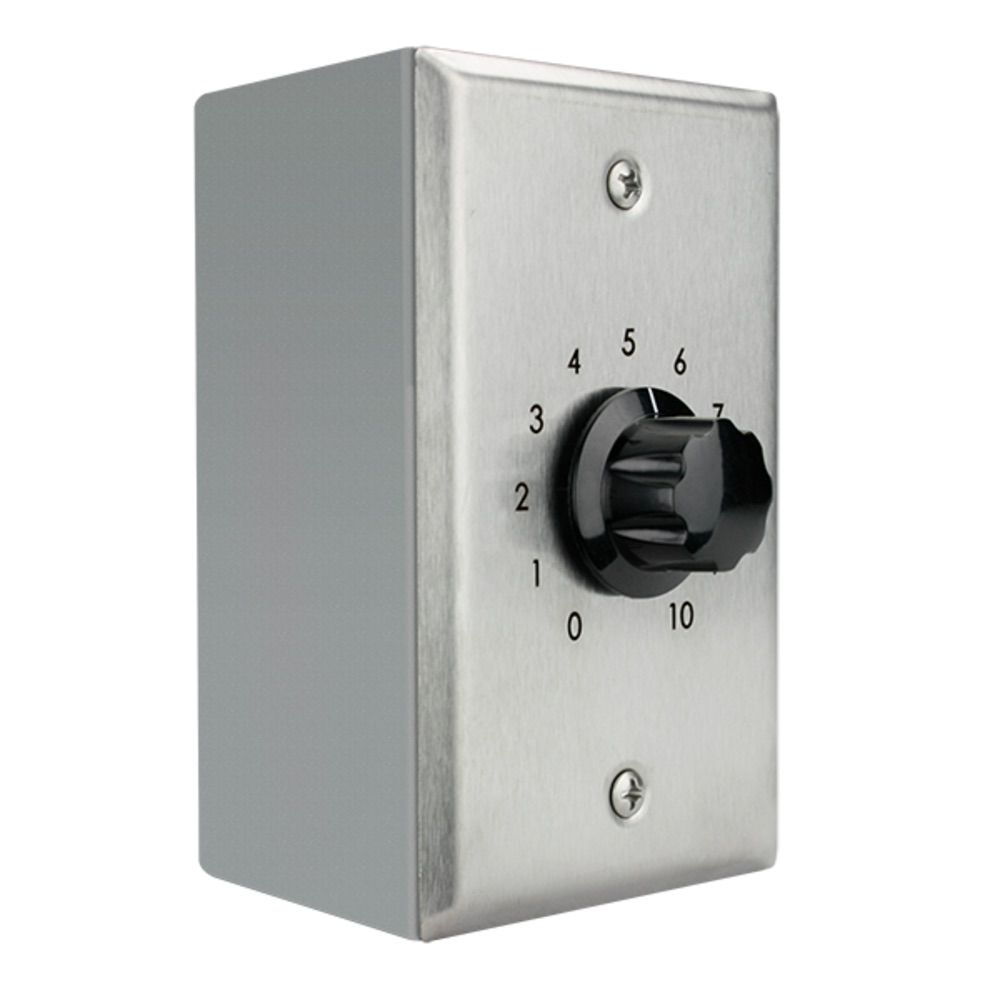

- Brushed stainless steel single gang plate with raised number dial scale; skirted black knob and position indicator.
