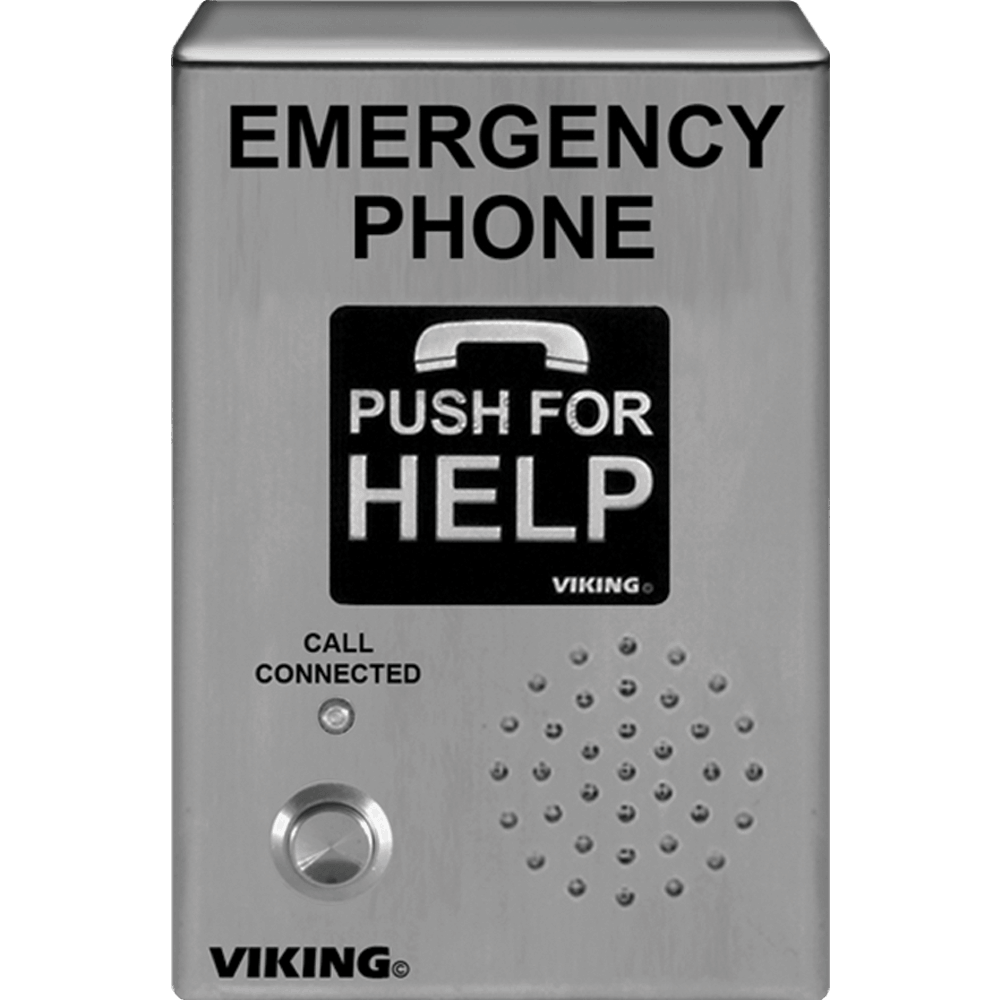

Viking Electronics Heavy Duty Surface Mount VoIP Emergency Phone E-1600-03-IP

The E-1600-03-IP is an ADA and CE-compliant VoIP emergency phone designed for fast, handsfree communication over SIP VoIP systems with PoE. Ideal for use in elevators and other emergency applications, it supports up to five programmable phone numbers and can be configured via any touch-tone phone, a PC on the same LAN, or remotely using a static IP address. The unit can automatically deliver a digital voice announcement or a DTMF code to identify the emergency call's location. A “Call Connected” LED activates manually or automatically to confirm connection. All settings are stored in non-volatile memory, eliminating the need for batteries. The E-1600-03-IP is powered via PoE for easy installation and reliable operation.

Viking Electronics Heavy Duty Surface Mount VoIP Emergency Phone E-1600-03-IP Features & Specifications:

• Automatic polling and programming software included
• 2 Amp relay contacts to control an SL-2 Strobe Light (DOD 242) or LV-1K Line Verification Panel (DOD 246)
• Red “Call Connected” LED indicator
• SIP compliant (see Product Manual for list of compatible IP-PBX phone systems)
• PoE powered (class 1, <4 Watts)
• Automatic Noise Canceling (ANC) feature for proper operation in noisy environments
• VoIP audio detection eliminates the need for “Push to Talk” mode
• Network downloadable firmware
• Handsfree operation
• Meets ADA requirements for Emergency Phones:
  • Automatically lights the “Call Connected” LED
  • Transmits a unique location ID code or voice announcement
  • Grade 2 Braille label for the visually impaired
• Non-volatile digital voice announcer with 28 seconds of voice memory
• Programmable to dial up to 5 numbers
• Cycles through backup phone numbers on busy or ring-no-answer
• Hangs up on busy signal, time-out or touch tone command
• Remotely programmable
• Diagnostics for testing mic, speaker, relay
• Extended temperature range: -40°F to 140°F (-40°C to 60°C)
