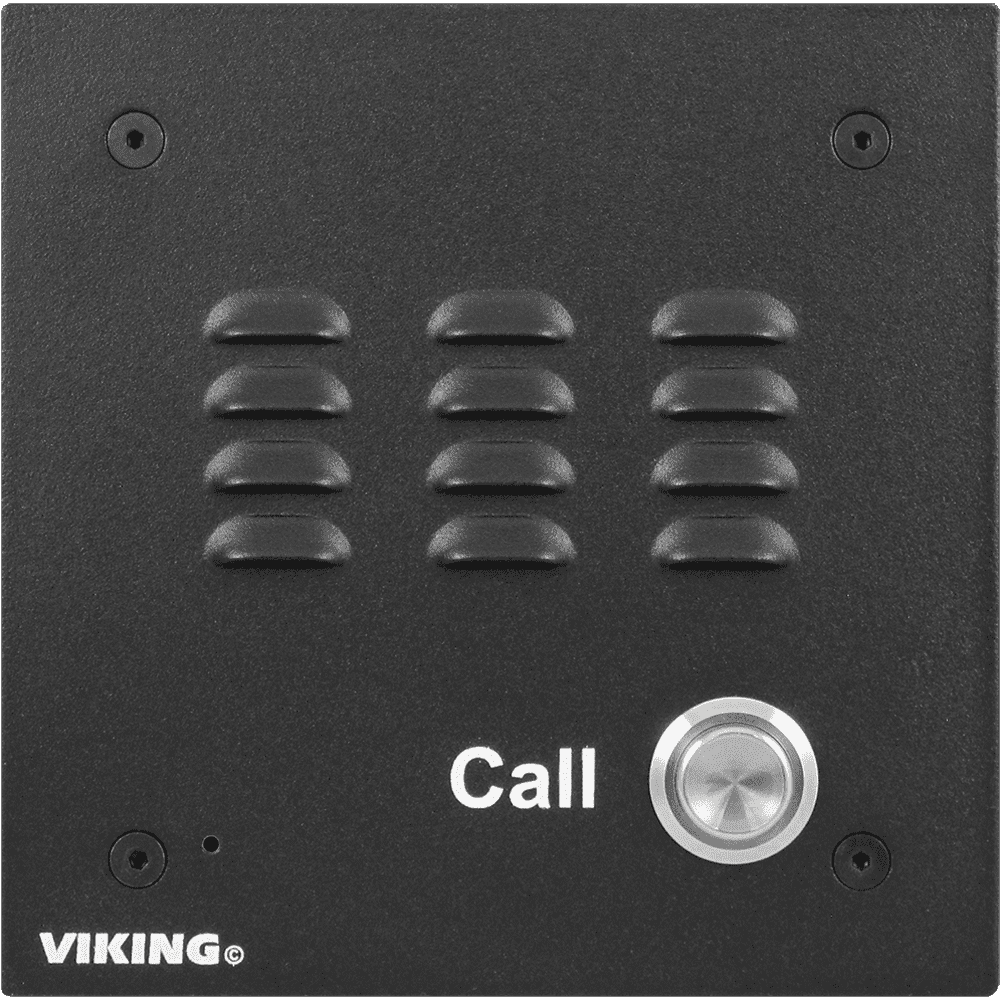

Viking Entry Phone, Black Finish E-10A

When the “Call” button is pressed, the speaker phone will come off-hook and will remain off-hook until one of the following happens: a CPC signal is detected, the programmed timeout has elapsed, a busy signal is detected, or the call goes silent, making the unit automatically disconnect.

The speaker phone can be connected directly to a C.O. line or analog PABX/KSU station when programmed as a ringdown circuit, or used with a Viking Dialer. If a line or station is not available, Viking’s DLE-200B ring down circuit can be used. One to four speaker phones can share an existing phone line in a house or small business when used with a Viking C-200, C-250, C-500, or C-2000B Controller.

Viking Entry Phone, Black Finish E-10A Features & Specifications:

• Alternate action call button to place or cancel a call
• Intelligent call progress detection for automatic hang-up on CPC, silence, busy signal, or time out
• Telephone line powered
• Adjustable microphone and speaker volume
• Programmable maximum call length
• Selectable auto-answer feature allows remote monitoring
• Two-way handsfree communication
• Programmable VOX (mic / speaker) switching speed
• Vandal resistant black powder painted aluminum face plate with heavy duty 316 stainless steel call button and mounting gasket
• Flush mount using the included rough-in box or surface mount using a VE-5×5 Surface Mount Box (DOD 424)
