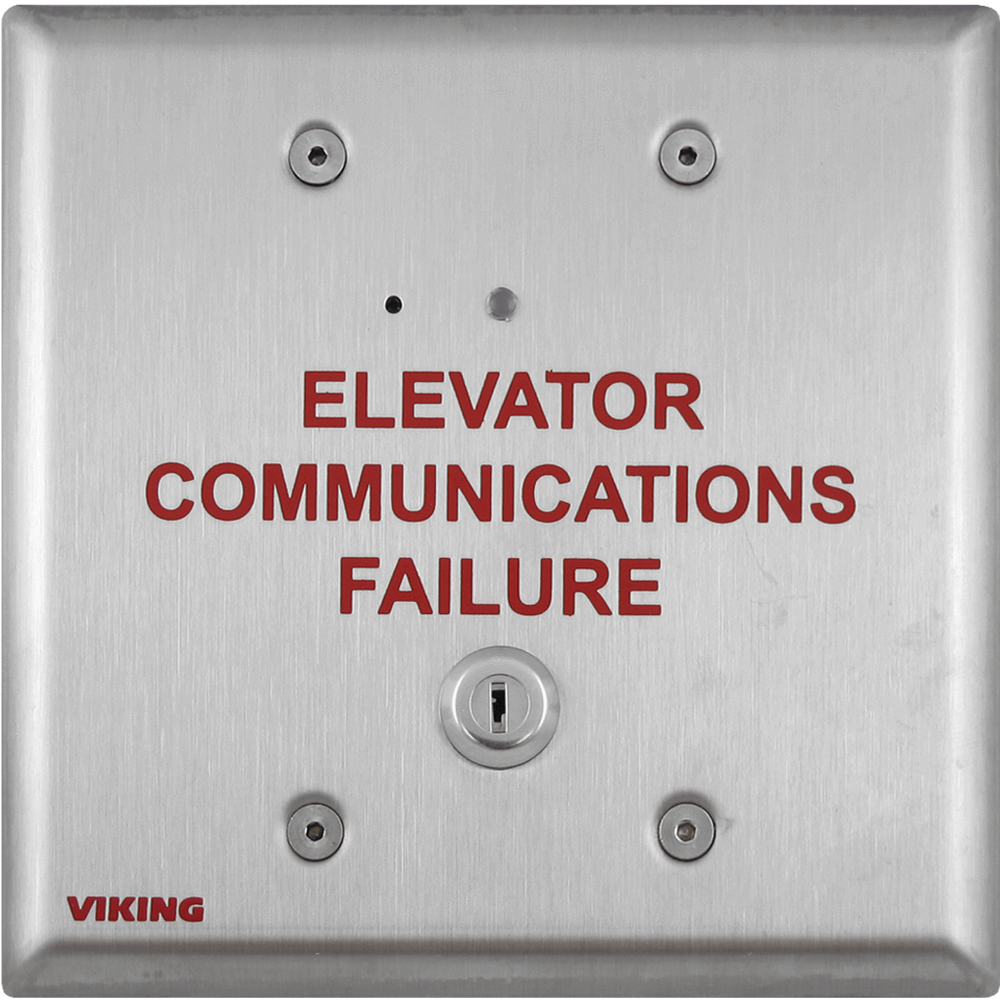

Viking LV-1K Line Verification Panel with Key Switch

The LV-1K elevator phone line verification panel is essentially ­­­­­four products in one. First, it can be added to any new or existing Viking 1600A Series elevator emergency as a single phone stand alone solution. With the LV-1K installed, the 1600A Series phone will check the elevator phone line for actual dial tone on a daily basis. The LV-1K also continuously monitors for loss of Talk Battery voltage and will immediately provide an audible and visual indication when the elevator phone line has been accidentally cut or disconnected.

Viking LV-1K Line Verification Panel with Key Switch Features & Specifications:

• Complies with ASME A17.1 Elevator Code
• Immediately detects a cut or disconnected phone line
• Allows Viking Model 1600A Series phones to daily test for dial tone
• Compatible with Viking Model LC-6 Six Port Line Concentrator
• Works with any analog device on any analog line
• Works with Viking 1600-IP phones to detect LAN connection failures
• Volume adjustable audible signaling
• Mounts in standard double gang electrical box
