  • Sangoma Vega 100G Sangoma Vega 100G
  • Sangoma VS0164 Sangoma VS0164

Availability: In stock

Your Price: $1,158.00
Your Price: $1,158.00
Options
The Sangoma Vega 100 is a 1 T1/E1 digital gateway that can be used to bridge PSTN to an IP PBX, SIP to a legacy analog PBX, or migrate from a legacy PBX to an IP PBX without installing a Sangoma T1 card into your server. Read More
Product Details
Manufacturer:
Sangoma
Model:
VS0164
UPC:
NA
SKU:
02-116662
Warranty:
1 Year
MSRP Price:
$1,395.00
% Off:
16%

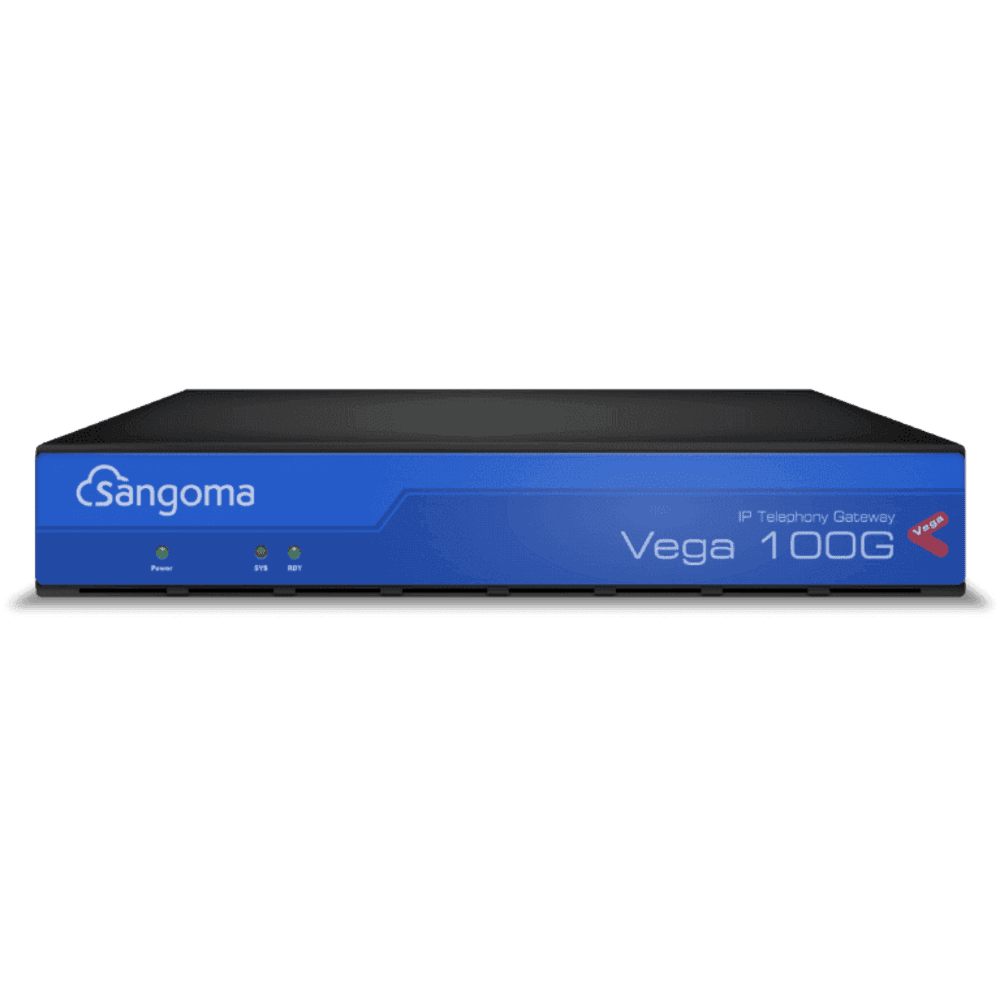

Sangoma Vega 100 T1/E1 Gateway

The Sangoma Vega 100 is a 1 T1/E1 digital gateway that can be used to bridge PSTN to an IP PBX, SIP to a legacy analog PBX, or migrate from a legacy PBX to an IP PBX without installing a Sangoma T1 card into your server.

Sangoma Vega 100 T1/E1 Gateway Overview:

A Sangoma Vega 100 E1/T1 interface can be independently configured as network side or terminal side. The Vega 100 gateway can therefore be connected to a PBX or the PSTN. With this configuration there are is disruption to the configuration of existing equipment as well as flexibility and choice for call routing.

The Vega 100G gateway incorporates additional RJ45 sockets and fails over to these during outages. This resource can be utilised to achieve hardwired connection from the PBX to the PSTN for instances when the Vega is installed between the two. Or alternatively to failover to a backup E1/T1 Vega gateway and thereby providing dual redundancy.

The Vega 100 gateway supports the following signalling schemes:

  • ETSI ISDN
  • NI1, NI2, AT&T 5ESS, DMS100
  • ISO QSIG Basic Call & QSIG feature transparency
  • Channel Associated Signalling (CAS)
  • The Vega 100 supports SIP, H.323 & T.38 FAX and has proven interoperability with a wide range of existing telecommunications & VoIP equipment.

    Sangoma Vega 100 Features and Functions:

    • Fixed Configuration of 30 VoIP Calls
    • Supports dual gigabit Ethernet connections
    • Local survivability
    • Available SRES and SNAP support
    • Voice, FAX and Modem Support
    • Flexible Call Routing for Fallback and Least Cost Routing
    • Emergency PSTN Backup
    • Interoperability with a Wide Range of Legacy and IP Equipment
    • Qualified for Lync 2013

    Manufacturer
    Sangoma
    Model
    VEGA-100-030KIT
    Digital Signaling Type
    T1, E1
    # of Digital Ports
    1
    # of Ethernet Ports
    2
    Ethernet Port Speeds
    10/100/1000 Gigabit
    Protocols Supported
    SIP, Microsoft Lync
    Fax Support
    T.38
    Echo Cancellation
    Yes
    Voice Codec Support
    G.711 u/a law, G.723, G.729
    Power
    Power Supply Included
    Provisioning Options
    FTP, HTTP, HTTPS, RADIUS, TFTP
    Mounting Option
    Rackmount
    Voice Signaling Methods
    AT&T 5ESS, DMS100, E1 CAS, ETSI/EURO ISDN, ISDN, NI1, QSIG Feature Transparency, T1 CAS, VN4, NI2
    # of VoIP Channels
    30
    Future Scalability
    No
    Modular
    No
    Sangoma Vega 100G

    Joe Shanahan

    Direct: 866-583-0920
    Blog

    Why Pay $1,158.00 for the Sangoma Vega 100?

    • Fixed configuration of 30 VoIP calls

    • Supports dual gigabit Ethernet connections

    • Flexible call routing for fallback and least cost routing

    For advice, reviews and industry insight... be sure to follow us online.


    Questions on Sangoma Vega 100

    From Steve Smith at 6/2/2014 8:00 PM

    Q: I have an install with an older T-1 circuit pack running a robbed bit non ISDN setting, will this gateway integrate with this setup
    Thanks
    Steve

    A: T1 Vega 100G fully support T1 CAS (Robbed Bit Signalling) operation. In this mode each T1 trunk supports up to 24 simultaneous calls. The specific varieties of CAS RBS supported are:

    - E&M Wink Start
    - E&M Wink Start with feature group D
    - FXS Loop Start
    - FXS Ground Start

    For more details you can review the Admin Guide that is located in the next link: ftp://ftp.sangoma.com/vega/docs/Vega_Admin_Guide_R88_v1.1.pdf

    Do you find this question helpful?  Yes   No

    From Johans aNGULO at 11/30/2015 7:00 PM

    Q: this support OpenR2?

    A: Hi Johans,

    Yes, based from installing to Asterisk.

    Thank you,

    Do you find this question helpful?  Yes   No
