Sangoma A40012D Analog Telephony Card

The Sangoma A40012D is part of the Sangoma A400 series. The Sangoma A400 series is the high density version of the popular A200 series analog cards. Identical in operation and configuration, and using the same FXO and FXS modules, the A400 system supports twelve ports per main board and Remoraâ„¢ daughtercard, as compared to four ports for the A200.The A400 and Remora System Support up to 24 FXO/FXS ports.

Sangoma A40012D Analog Telephony Card Overview

As you need them, additional Remora cards can be added to the Sangoma A40012D card. A single PCI or PCI Express slot host connection can support up to 24 FXO/FXS ports with common synchronous clocking for all channels.

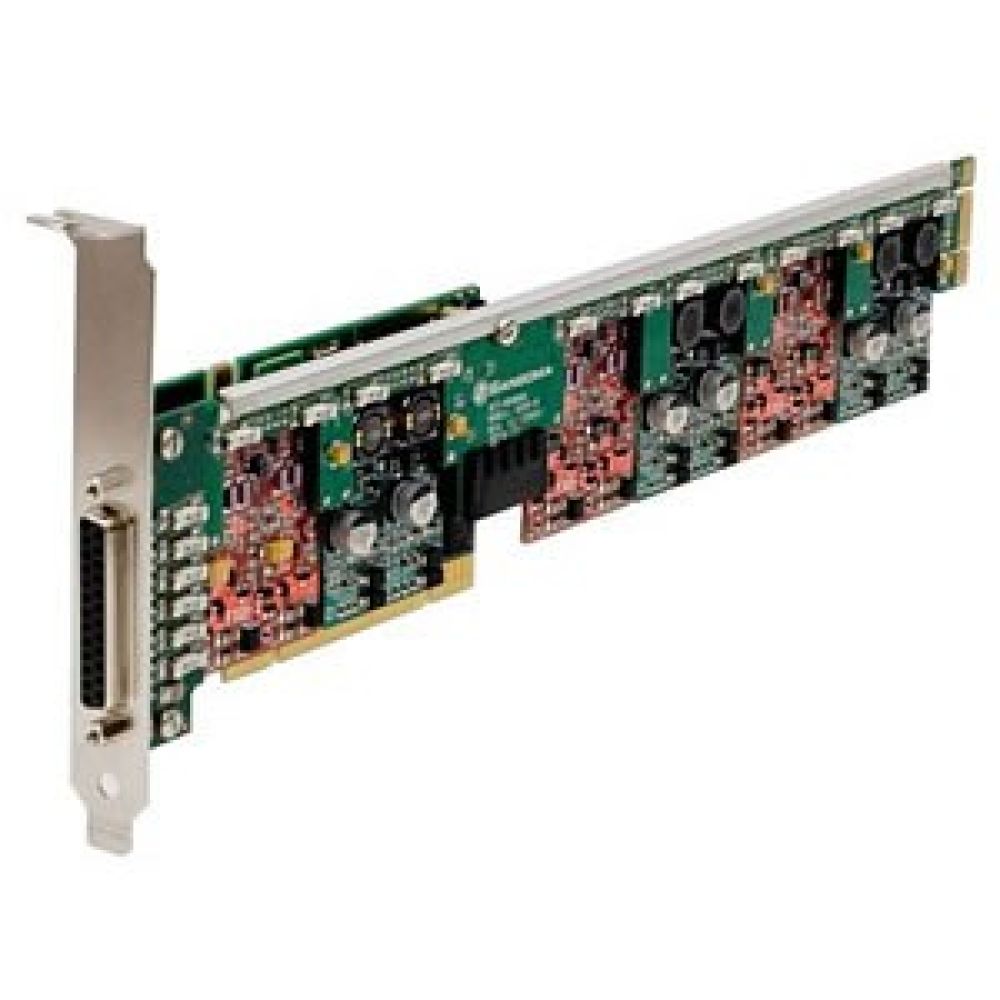

The Sangoma A400 Card consists of an A400 Remora daughterboard mounted on the Sangoma AFT Series PCI or PCI Express base card. The A400 Remora Card has six sockets each, which can accept an FXO-2 or FXS-2 module. Each FXO-2 or FXS-2 module supports two FXO or FXS lines respectively.

Up to one additional A400 Remora daughterboards can be mounted in empty slot positions beside the A400 Remora assembly. These additional Remoras are connected to the A400 by a backplane bus connector.

Each 12-port A400 Remora card has a robust DB25 connection to a standard 12-line, colour-coded telephone cable that is ready for hard wiring into a punch block at the PSTN connection. Cable is included.

Like all the Sangoma AFT Series, the A40012D and Remora system has field upgradeable firmware to take advantage of enhancements as they become available.

  • Sangoma cards guarantee error-free faxing and click-free audio on analog-digital links.*
  • *Hardware echo cancellation option required.

Marketing Text
# of FXO Ports
Bus Type
Echo Cancellation
Sangoma A40012D

Darren Hartman

Direct: 866-675-8461

Why Pay $1,874.00 for the Sangoma A40012D?

  • 0 FXS Ports, 24 FXO Ports, and onboard echo cancellation

  • PCI Form Factor

  • Proprietary DB25 connection to save space on the back of the server
