Adtran NetVanta 6355 (DISCONTINUED)

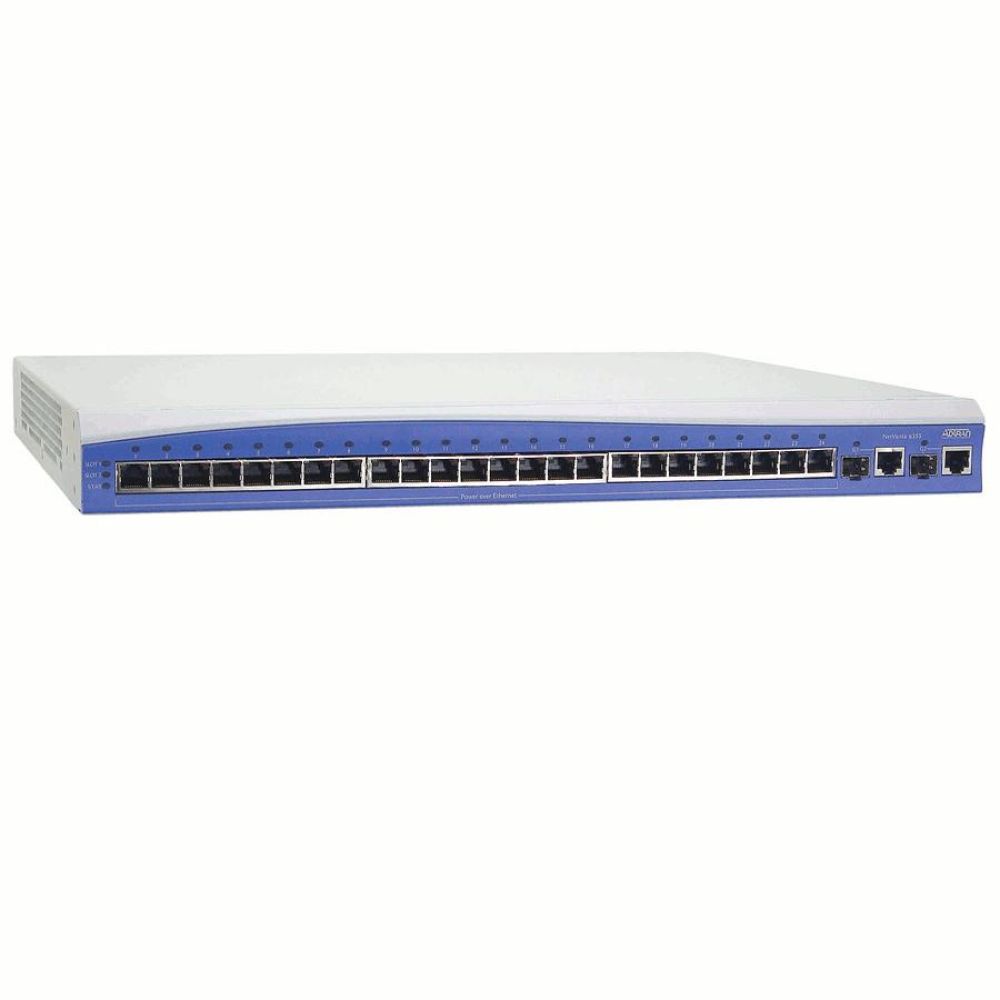

Adtran NetVanta 6355

The Adtran NetVanta 6355IP Business Gateway is a unique, all-in-one solution for Hosted VoIP PBX services, Internet access, and business connectivity. This powerful platform combines the voice functionality of Adtran's industry-leading Total Access 900e IP Business Gateway and the widely deployed NetVanta Power over Ethernet (PoE) switch into a compact 1U chassis. This all-in-one product includes a robust SIP gateway, a full-featured IP router, stateful inspection firewall, VPN, 24-port powered (802.3af ) Fast Ethernet switch with Gigabit uplinks, and two expansion slots for Network and Voice Interface Modules (NIMs/VIMs).

Adtran NetVanta 6355 Product Overview

The NetVanta® 6355 IP Business Gateway is a unique, all-in-one solution for Hosted VoIP PBX services, Internet access, and business connectivity. This powerful platform combines the voice functionality of Adtran's industry-leading Total Access® 900e IP Business Gateway and the widely deployed NetVanta Power over Ethernet (PoE) Switch-Router into a compact 1U chassis. This all-in-one product includes a robust SIP gateway, a full-featured IP router, stateful inspection firewall, VPN, 24-port powered (802.3af ) Fast Ethernet switch with Gigabit uplinks, and two expansion slots for Network and Voice Interface Modules (NIMs/VIMs).

The modular NetVanta 6355 is powered by the Adtran® Operating System (AOS) and includes data networking features such as standards based routing protocols and Layer 3 Quality of Service (QoS). The integral switch provides 24 powered (802.3af) 10/100 Ethernet ports, with 802.1q VLANs, link aggregation, and Gigabit uplinks for stacking. Voice support includes built-in dual trunk (FXO) and station (FXS) interfaces for analog connections and E911 dialing. Network and voice expansion options include analog four-port trunk (FXO), analog four-port station (FXS), analog two-trunk/two station, PRI, ADSL, SHDSL, E1 and T1/FT1 modules provide support for up to three network T1s and up to 10 analog interfaces. Wallmount or rackmount applications are supported. The NetVanta 6355 includes a robust SIP gateway, providing interoperability with industry-leading softswitches, feature servers, and media gateways. For customers implementing a Hosted PBX service, the NetVanta 6355 supports IP phones, digital telephony equipment and analog phones, fax machines, or modems. In addition, the NetVanta 6355 works in conjunction with industry-leading feature servers to support many popular calling features including caller ID, call hold, forward, transfer, and call waiting. A dual IP and TDM backplane architecture supports both IP and analog devices to smooth network migration and eliminate common performance problems associated with converting TDM analog devices to IP. For example, fax and modem devices connect directly to the NetVanta 6355 and achieve full-rate performance across the PSTN. Voice Activity Detection (VAD) and silence suppression are also supported.The NetVanta 6355 includes a SIP Back-to-Back User Agent (B2BUA) as a SIP-transparent proxy to facilitate remote survivability in the event of a service interruption on the WAN. If connection to the feature server is lost, calls may continue between IP and analog phones to an FXO POTS line to the PSTN.

Adtran NetVanta 6355 Features and Specifications:

• All-in-one Hosted IP voice and data solution

• Integral SIP gateway, router, PoE switch, and security

• Full-featured IP router supporting up to three T1s for data and Internet access

• Managed, 24-port PoE (802.3af) switch

• Stateful inspection firewall for network security

• IPSec VPN for secure corporate connectivity across the Internet

• Compatible with industry-leading softswitches and call agents

• Up to 10 analog POTS interfaces with remote survivability

• Supports IP and analog phones/phone systems; fax machines, modems, and Wireless Access Points (WAPs)

• Dynamic bandwidth allocation enables more efficient utilization

• Standardized G.729a voice compression requires less bandwidth per voice call

• Industry-leading warranty
