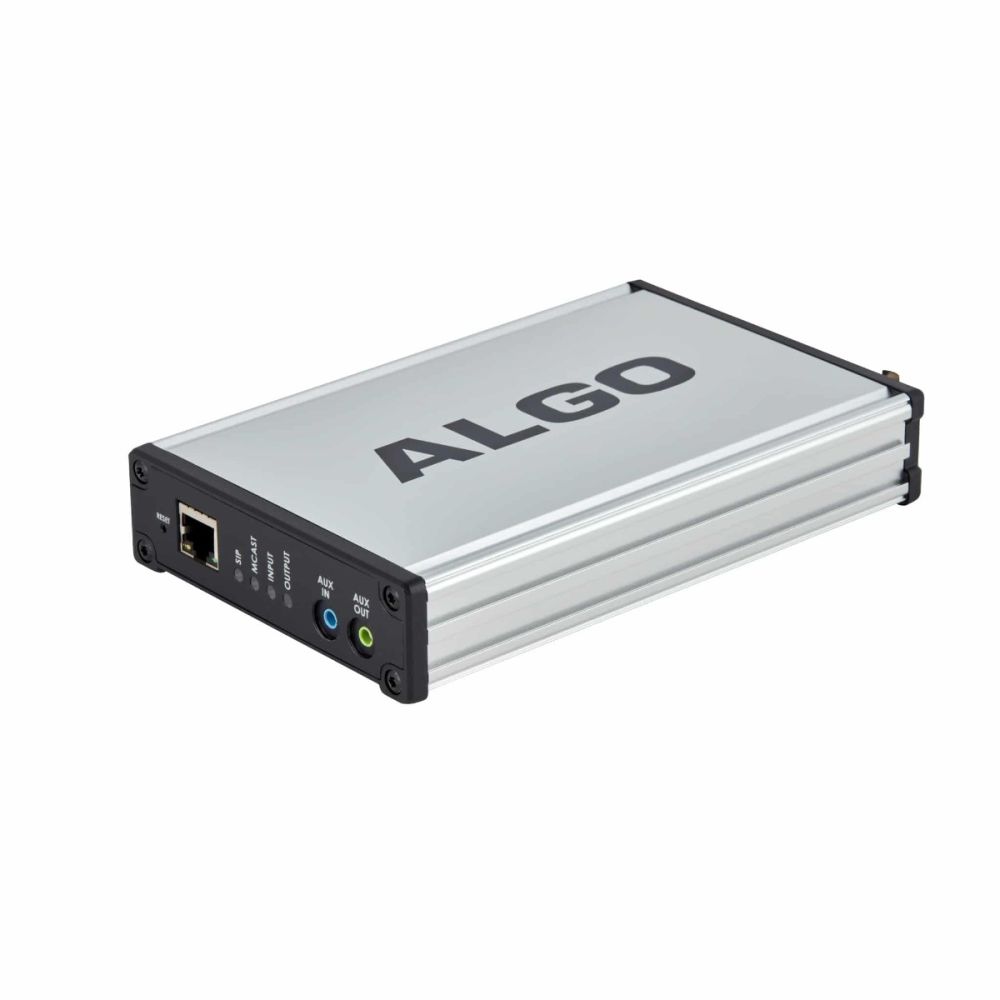

Algo 8301-IC Paging Adapter InformaCast Enabled

Algo 8301-IC InformaCast Paging Adapter

The 8301 is certified for native compatibility with Microsoft Teams via the Microsoft Teams SIP Gateway!

It is a PoE IP Paging Adapter for integrating legacy analog voice paging systems into a premise or hosted UC environment as a third party SIP endpoint. The Adapter eliminates the need for an ATA or FXS port. Features include G.722 wideband support with an isolated and balanced line output for optimum clarity and intelligibility without hum or noise.

The Algo 8301 Emergency Notification Alerting

An auxiliary input allows an optional wall button (e.g., 1202 Call Button as shown) or external switch to initiate a SIP call or play a WAV file stored in the adapter's memory for notification alerting.

A WAV file may also be played by dialing the adapter's Ring extension, configured for ring/announcement activation only. Up to 10 Ring extensions are available to register on a single adapter (or 8186, 8188) for applications requiring different types of emergency notification alerting (e.g., lockdown, evacuation, etc.). A Call To Cancel feature can be configured in the 8301 to allow emergency alerting to play continuously for the duration of the event until a designated extension registered to the speaker is called to stop the alert. Any combination and number of Algo IP endpoints can receive a multicast for such emergency alerting.

The Algo 8301 Bell Scheduler

The 8301 also features a Scheduler for automating the playing and multicasting of WAV file tones, bells, announcements, music, etc. The Scheduler uses the NTP server to synchronize with IP clocks, and is ideal for schools (i.e., class changes, recess, playing an anthem, etc.), retail and healthcare announcements (e.g., store closing, visiting hours, etc.), and workplace shift changes, breaks, etc.

Algo 8301 Features and Functions

• Informacast
• Made in Canada
• Superior audio clarity and intelligibility - no hum or noise
• PoE (802.3af) for plug and play network connectivity
• Eliminates narrowband FXS port or ATA
• Multicasting capability to include Algo IP speakers and strobes
• Synchronization of scheduler and IP clocks using NTP server
• Wideband G.722 codec support for HD voice
• Auto-provisioning (i.e.TFTP, FTP, HTTP, HTTPS,) Also supported: TLS & SRTP, SIP over TCP,DNS SRV Record, and CDP/LLDP automatic VLAN assignment
• Configurable for DTMF zone selection
