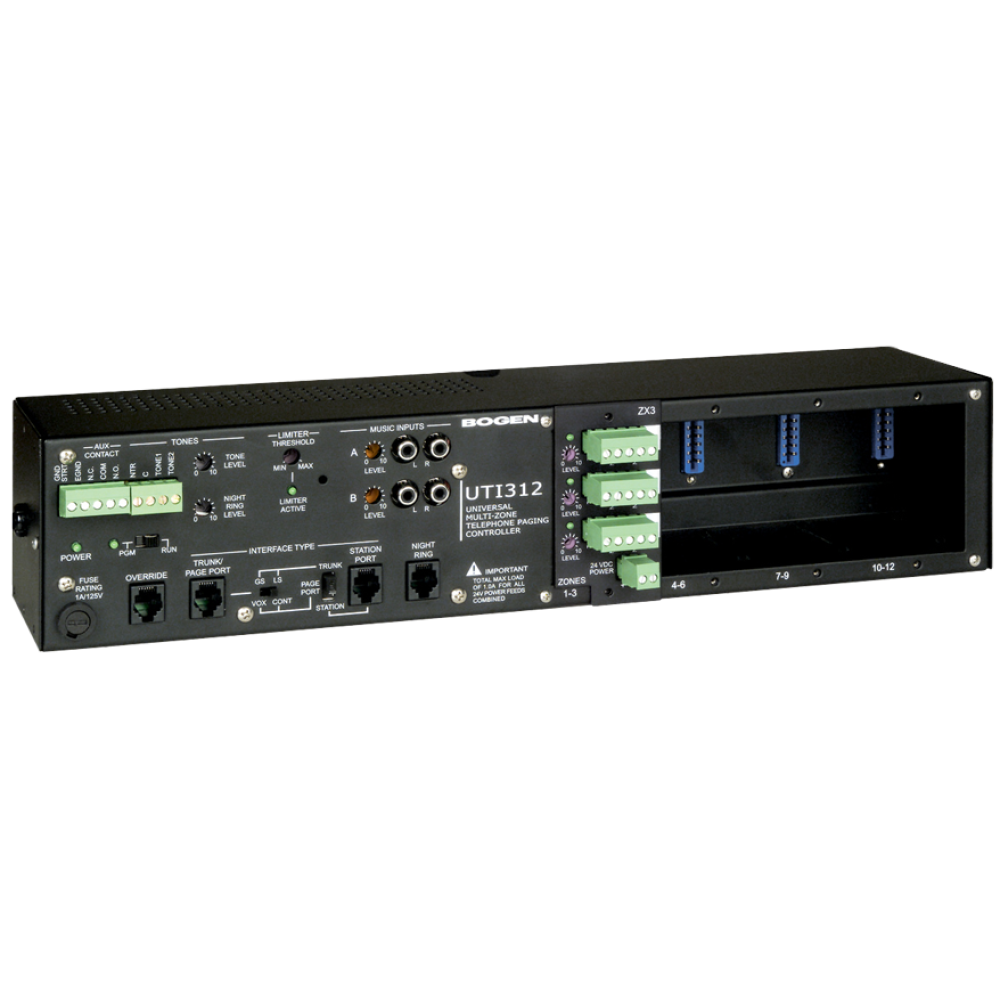

Bogen Communications UTI312 Multi-Zone Universal Telephone Interface

The UTI312 Zone Paging Controller supports up to 12 zones for one-way paging in self-amplified speaker systems, handling up to 150 speakers per output. It features 24 programmable zone groups, all-call, override, night ring, two-tone triggers, code calling, and flexible dialing, ensuring compatibility with standard analog ports.

Bogen Communications UTI312 Multi-Zone Universal Telephone Interface Features & specifications:

• Expandable from 3 to 12 zones (in 3-zone increments using ZX3 modules)
• One-way paging only
• Interfaces to Loop Start, Ground Start, Analog Station, and Page Ports
• (with or without contact closure activation)
• 2 Background music (BGM) inputs
• BGM sources assignable per zone
• Level control for each zone output
• 150 Speaker T/R drive capacity per zone
• Programmable AUX Relay
• Override input (loop start or page port)
• Separate override, all-call, tone trigger, night ring, and code call zone groups
• Contact and 90V Night Ring inputs
• 24 User-assignable zone groups
• FCC Part 68 Registered
• Listed to UL Standard 60950 for U.S. and Canada
