Cisco EHWIC-1GE-SFP-CU (DISCONTINUED)

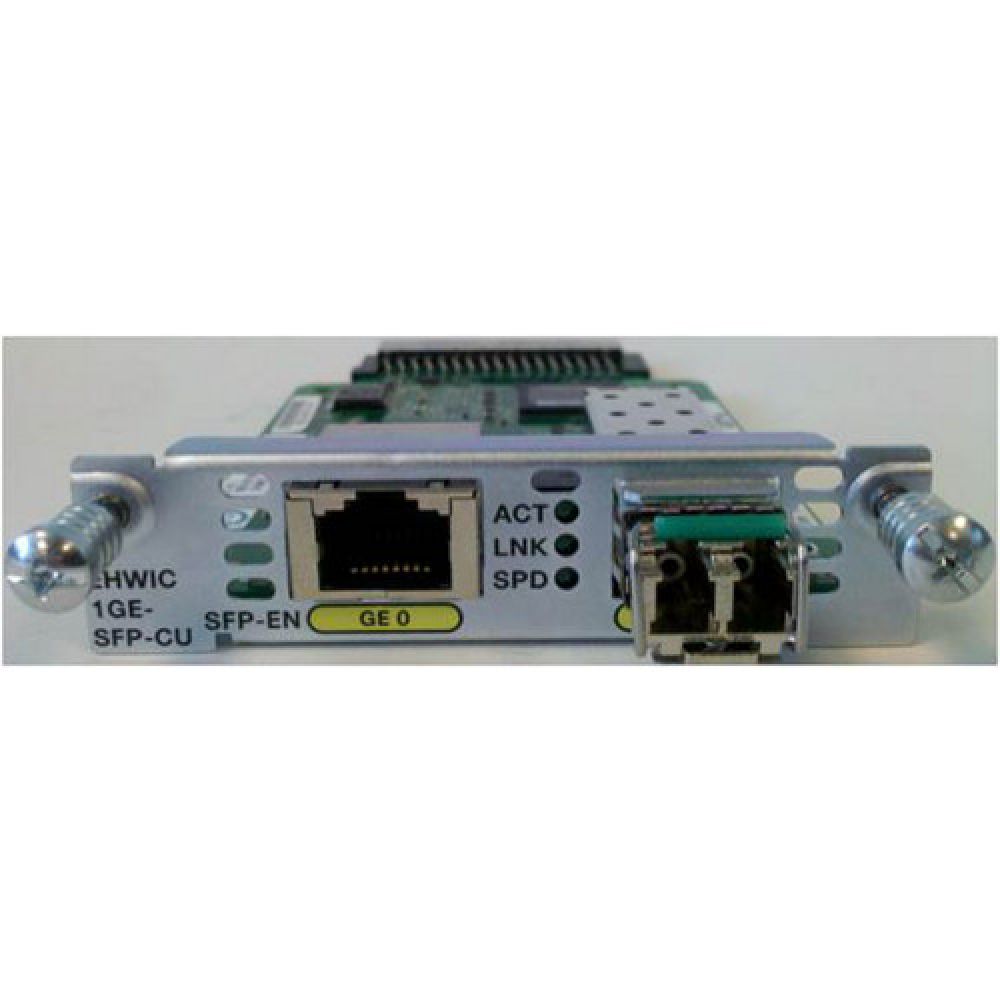

Cisco Enhanced High-Speed WAN Interface Card EHWIC-1GE-SFP-CU

The Cisco® Gigabit Ethernet Dual-Identity Enhanced High-Speed WAN Interface Card (EHWIC) brings both Small Form-Factor Pluggable (SFP) and copper (RJ-45) Gigabit Ethernet connectivity to Cisco Integrated Services Routers (ISRs) to accelerate applications such as Ethernet WAN access, inter-VLAN routing (IVR), and high-speed connectivity to LAN switches. The Gigabit Ethernet EHWIC enables branch offices to cost-effectively use high-speed uplinks in numerous environments (Figure 1). The enhanced performance of Gigabit Ethernet in Cisco ISR G2 routers enables new applications and services and provides greater capacity for existing IVR and bridging capabilities. Branch offices can now connect to Ethernet WAN (EWAN) Layer 2 and 3 services.

Cisco Enhanced High-Speed WAN Interface Card EHWIC-1GE-SFP-CU Features

● Voice and remaining QoS features, per platform and per Cisco IOS Software release

● HQoS

● Weighted Random Early Detection (WRED)

● Precedence setting and mapping (IEEE 802.1p)

● Support for the same Ethernet features as supported on the ISR G2 on-board Ethernet ports

● Gigabit Ethernet IEEE 802.3z, IEEE 802.3x, and IEEE 802.3ab

● IEEE802.3 with IEEE802.2 Service Advertising Protocol (SAP)

● IEEE802.3 with IEEE802.2 and Subnetwork Access Protocol (SNAP)

● IEEE 802.1p priority

● IEEE 802.1Q VLAN tagging

● Jumbo frame support for up to 9576 bytes

● Cisco Group Management Protocol (GMP) and Internet Group Management Protocol (IGMP) for multicasting

● High availability, supporting Hot Standby Router Protocol (HSRP), Virtual Router Redundancy Protocol (VRRP), and Gateway Load-Balancing Protocol (GLBP)

● Simple Network Management Protocol (SNMP) support

● Remote Monitoring (RMON) support
