Cisco SG500X-24

Are you a reseller? Login for better pricing
Are you a reseller? Login for better pricing
The Cisco SG500X-24 has been marked End of Life by the manufacturer. Please call 1-800-398-8647 for pricing and availability. For a comparable replacement, please check out the Cisco SG550X-24 Switch Switc

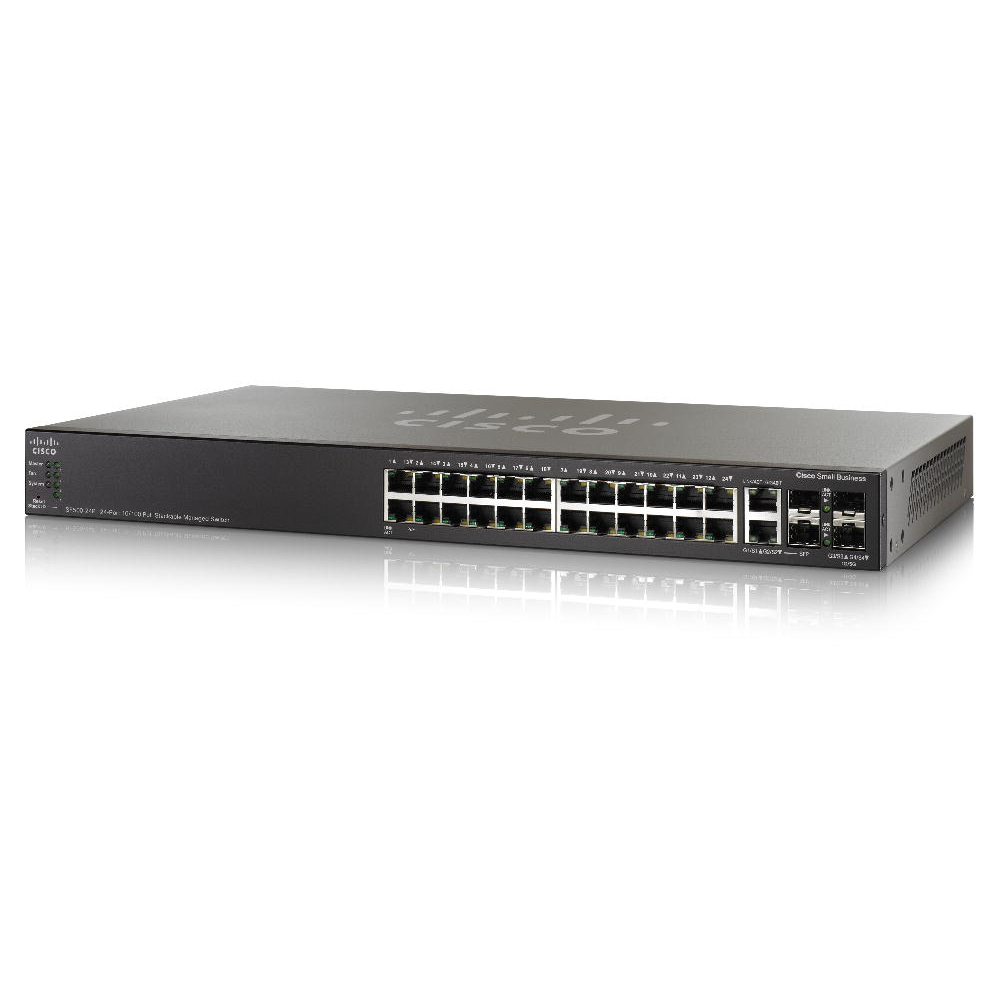

The Cisco SG500X-24 is a 24-port stackable managed Gigabit Ethernet switch, with 4 Enhanced Small Form-Factor Pluggable (SFP+) slots and optional 10 Gigabit Ethernet connectivity. It offers energy-efficient technology (EEE), true stacking, IPv6, and the advanced security and network features needed to support a growing business network. The switch is easy to manage and includes a limited lifetime warranty with next-business day advance replacement.

Cisco SG500X-24 24-Port Gigabit with 4-Port 10-Gigabit Stackable Managed Switch

The Cisco SG500X-24 is a 24 port 10/100/1000 stackable switch with 4 10-Gigabit Ethernet SFP+ modules for expansion. The SG500X-24 switch provides 24 ports of Gigabit Ethernet connectivity with 10 Gigabit uplinks, providing a solid foundation for your current business applications, as well as those you are planning for the future. At the same time, these switches are easy to deploy and manage, without a large IT staff.

Cisco SG500X-24 Overview

The Cisco SG500X-24 is a 24-port stackable managed Gigabit Ethernet switch, with 4 Enhanced Small Form-Factor Pluggable (SFP+) slots and optional 10 Gigabit Ethernet connectivity, that provides a solid foundation for your current business applications, as well as those you are planning for the future. It offers true stacking, advanced security, quality of service, energy-saving technology (EEE), IPv6, and network features that deliver the reliability and performance needed by demanding environments. The switch is easy to configure and manage with a choice of management tools and is offered with a limited lifetime warranty, including next-business-day advance replacement and one year of technical support. TCisco switches provide the ideal technology foundation at a price you can afford, and in a solution designed to grow with your business.

Cisco SG500X-24 Features:

  • -- Easy deployment and use: Intuitive graphical interfaces, remote management capabilities, Textview command-line interface, Cisco Configuration Assistant, and automated deployment tools simplify setup and configuration.
  • -- High reliability and resiliency: Stacking capabilities, dual images, and advanced redundancy protocols keep your customers' networks running, even after a major failure.
  • -- True stacking: Some switches claim to support stacking but in practice must be managed and configured individually. Cisco 500 Series switches allow you to manage and configure multiple switches in a stack as a single unit, with a single IP address. A true stack delivers a unified data and control plane, in addition to management plane, providing flexibility, scalability, and ease of use since the stack of units operate as a single entity constituting all the ports of the stack members. This capability can radically reduce complexity in a growing network environment while improving the resiliency and availability of network applications. True stacking also provides other cost savings and administrative benefits through features such as cross-stack QoS, VLANs, and port mirroring, which clustered switches can't support.
  • --Strong security: Use access control lists (ACLs), guest virtual LANs (VLANs), encrypted management data, IEEE 802.1X security, and other advanced network defense mechanisms features such as ARP Inspection and DHCP Snooping to safeguard customer networks.
  • -- Advanced IP telephony support: Cisco 500 Series switches automatically configure connected IP phones with the right VLAN and quality of service (QoS) parameters to prioritize voice traffic.
  • --Advanced traffic management: The Cisco 500 Series includes models that support static (500 models) and dynamic (500X models) Layer 3 routing capabilities, giving you more flexibility to organize and optimize your customers' networks.
  • --IPv6: Cisco 500 Series switches support your customers' transition to next generation networking and operating systems with support for IPv6. The switches have completed rigorous IPv6 testing and have received the USGv6 and IPv6 Gold certification.
  • -- Power efficiency: Low-power chipsets, fanless designs, and other "green" features reduce power consumption and enable quieter operation.
  • --Expandability: The 500 models offer 1 Gigabit Ethernet or 5 Gigabit Ethernet expansion slots, and the 500X models offer 10 Gigabit Ethernet expansion slots.
  • --Customer peace of mind: The switches have been rigorously tested to deliver the reliability customers expect from Cisco, and to easily integrate with other Cisco voice, video, security, and networking products.
  • -- Limited lifetime warranty:The switches are backed by a limited lifetime warranty with next-business-day advance replacement, software application updates for bug fixes for the warranty term, and telephone technical support at no charge for the first 12 months following the date of purchase.
  • --Investment protection: The Cisco Small Business Investment Protection program gives customers credit for the value of their 500 Series switch when they are ready to upgrade (United States and Canada only).

Package Contents:

  • ● Cisco Small Business 500/500X Series Stackable Managed Switch
  • ● Power cord
  • ● Mounting hardware
  • ● Serial cable
  • ● CD-ROM with user documentation (PDF) included
  • ● Quick Start Guide
More Information
SKU 02-113492
Shop By Brand Cisco
UPC 882658424823
Model SG500X-24
MPN SG500X-24-K9-NA
MSRP $2,065.00
Manufacturer Warranty Limited Lifetime
# of Ethernet Ports 24
Ethernet Port Speeds 10/100/1000 Gigabit
Provisioning Options HTTP, HTTPS, SNMP, Web GUI
Mounting Option Rackmount
VLAN / QOS Support Yes
