Cisco SG550X-24MP 24-Port PoE Stackable Managed Switch (DISCONTINUED)

The Cisco SG550X-24MP 24-Port PoE Stackable Managed Switch has been discontinued, the recommended replacement is Cisco Catalyst 24-Port Manageable PoE Gigabit Ethernet Switch C1300-24FP-4X .

Log in for lower price

Availability: Out of stock
SKU
02-127115
MPN
SG550X-24MP-K9-NA-DIS
The Cisco SG550X-24MP Stackable Managed Switch - 24 Ports Switch provides advanced capabilities and superior performance you need to support a more demanding network environment.

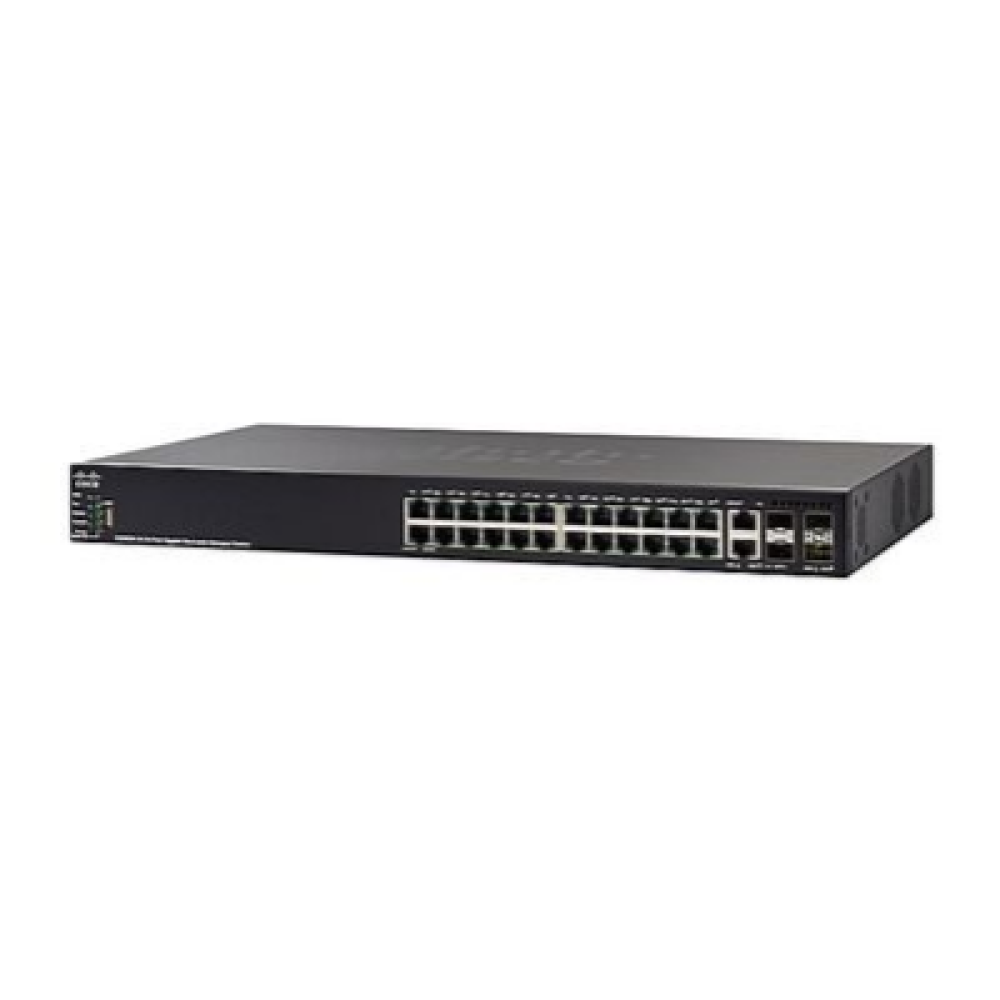

Cisco SG550X-24MP 24-Port PoE Stackable Managed Switch

The Cisco 550X Series Switches is the next-generation of stackable managed switches from Cisco that provide the advanced capabilities and superior performance you need to support a more demanding network environment. The 550X series incorporate fan and power hardware redundancy, increasing overall network capability. The SG550X-24P provides 24 ports of Gigabit Ethernet and Fast Ethernet connectivity with 10 Gigabit uplinks.

The Cisco 550X Series Switches are designed to protect your technology investment as your business grows. Unlike switches that claim to be stackable but have elements that are administered and troubleshot separately, the Cisco 550X Series provides true stacking capability, allowing you to configure, manage, and troubleshoot multiple physical switches as a single device and more easily expand your network.

The SG550X and SF550X models provide 24 or 48 ports of Gigabit Ethernet and Fast Ethernet connectivity with 10 Gigabit uplinks. The SX550X models provide 12, 16, 24, or 48 ports of 10 Gigabit Ethernet with both copper and fiber connection options, providing a solid foundation for your current business applications, as well as those you are planning for the future.

Cisco SG550X-24MP 24-Port PoE Stackable Managed Switch Overview

The Cisco SG550X-24MP is a 24-port stackable managed 10/100 switch with four Gigabit Ethernet ports-2 combination ports and 2 Small Form-Factor Pluggable (SFP) ports-that provides a solid foundation for your current business applications, as well as those you are planning for the future. It offers Power over Ethernet Plus, true stacking, advanced security, quality of service, energy-saving technology (EEE), IPv6, and network features that deliver the reliability and performance needed by demanding environments. The switch is easy to configure and manage with a choice of management tools and is offered with a limited lifetime warranty, including next-business-day advance replacement and one year of technical support. The Cisco SF550X-24MP provides the ideal technology foundation at a price you can afford, and in a solution designed to grow with your business.

Cisco SG550X-24MP 24-Port PoE Stackable Managed Switch Features

  • 24 x 10/100/1000 PoE+ ports with 382W power budget
  • 4 x 10 Gigabit Ethernet (2 x 10GBase-T/SFP+ combo + 2 x SFP+)
  • Capacity in mpps (64-byte packets): 95.23
  • Switching capacity (Gbps): 128
  • Power dedicated to PoE: 382W
  • Number of ports that support PoE: 24 (8 support 60W PoE)
  • Green power (mode): EEE, Energy Detect, Short Reach
  • System power consumption; 110V=53.8W 220V=54.8W
  • Power consumption (with PoE): 110V=471.2W 220V=460.4W
  • Heat dissipation (BTU/hr): 1,607.80
  • Total system ports: 24x GE + 4x 10 GE
  • Network ports: 24x GE
  • Uplink ports: 2x 10 GE copper/SFP+ combo + 2x SFP+
  • Fan (number): 3 + 1 (redundant)
  • Acoustic noise: 0°C - 30°C: 43.9dB 50°C: 52.3dB
  • MTBF at  50°C: 178,798










More Information
SKU 02-127115
Shop By Brand Cisco
Model SG550X-24MP-K9-NA-DIS
MPN SG550X-24MP-K9-NA-DIS
MSRP $5,515.82
Ethernet Port Speeds 10/100
Provisioning Options HTTP, HTTPS
Mounting Option Rackmount
VLAN / QOS Support Yes
