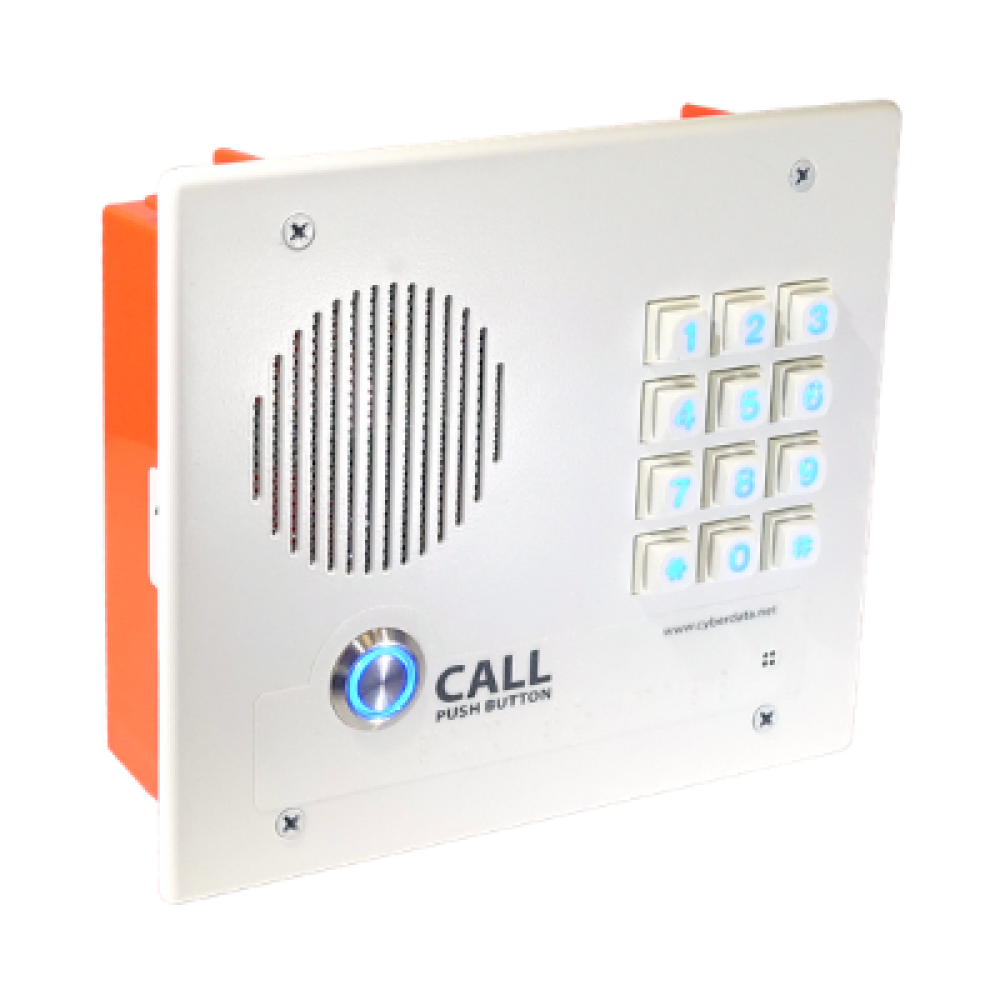

CyberData 011123 Indoor Flush Mounted Keypad Intercom (RAL 9003 Signal White)
The CyberData 011123 indoor SIP-enabled VoIP Intercom with Keypad is a Power-over-Ethernet (PoE 802.3af) and Voice-over-IP two-way communications device that easily connects into existing local area networks (LANs) with a single cable connection.
CyberData 011123 Product Overview
The Cyberdata SIP-enabled VoIP Intercom with Keypad (Flush-Mounted version) is a Power-over-Ethernet (PoE 802.3af) and Voice-over-IP (VoIP) door entry device that easily connects into existing local area networks (LANs) with a single cable connection. The intercom is compatible with most SIP-based IP PBX servers that comply with the SIP RFC.
The 12-key keypad intercom also has programmable speed dial and works well for any private or public sector entity requiring mass notification such as medical offices and hospitals, railway stations and ports, manufacturing warehouses and more.
The VoIP Intercom with Keypad can be configured as a Night Ringer with two SIP extensions as a part of your IP paging network. One extension can be assigned to a page group for auto answer paging. The second extension can be assigned to a "First-to-Answer" Night Ring group with IP phones. An audio ring file is activated when the second SIP extension of the Intercom is dialed. If any of the IP phones in the ring group is answered (or if the caller hangs up), the Intercom stops ringing.
Standard night ringer function can be utilized as detailed in the Operation Guide.
CyberData 011123 Features:
SIP or multicast compatible
Night Ringer function
Dual speed 10/100 Mbps
Network firmware upgradeable
Network volume adjustable
Network microphone sensitivity adjust
Dry contact relay
Protocol: SIP RFC 3261 Compatible
Ethernet I/F 10/100 Mbps
Power Input PoE 802.3af or +12 to +24VDC at 1000mA (500mA minimum)
Operating Temperature -30 to 55C (-22 to 131F)
Payload Types G711 A-Law and u-Law
Regulatory Compliance FCC Class A, UL 60950
Dimension 5" x 5" x 2.5" (H x W x D)
Warranty 2 Year Limited
