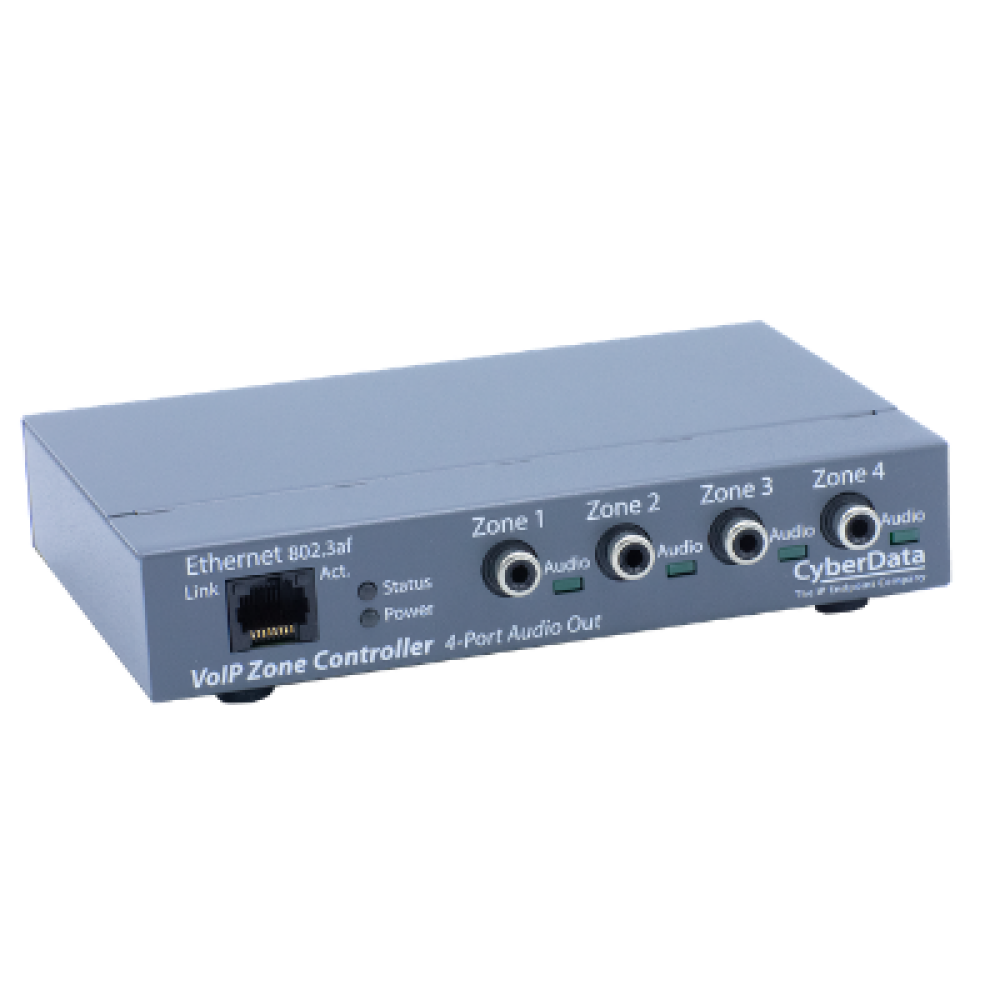

CyberData 011171 SIP Paging Zone Controller Overview
The CyberData 011171 SIP Paging Zone Controller with 4-Port Audio Out enables access to existing paging speakers through a VoIP phone system. The Cyberdata 011171 SIP Paging Zone Controller's interface is constructed to use a standard paging amplifier with audio inputs and supports IP speakers up to 15 zone groups from a VoIP phone.
*Power Supply not included
When powering the CyberData 011171 please use a PoE switch. If you want to power this device by using an auxiliary power connection, the power connection would be a +48v 380mA (min) power brick. The connector is 2.5mm with a positive center.
CyberData 011171 SIP Paging Zone Controller Features
- SIP RFC 3261 compatible
- PoE 802.3af enabled Power-over-ethernet
- Dual-speed ethernet 10/100 Mbps
- 4 Paging zones
- 15 Paging zone groups
- Page all
- Web-based configuration
- Web-based firmware upgradeable
- Connector for external power supply
- Small footprint
- IGMP
