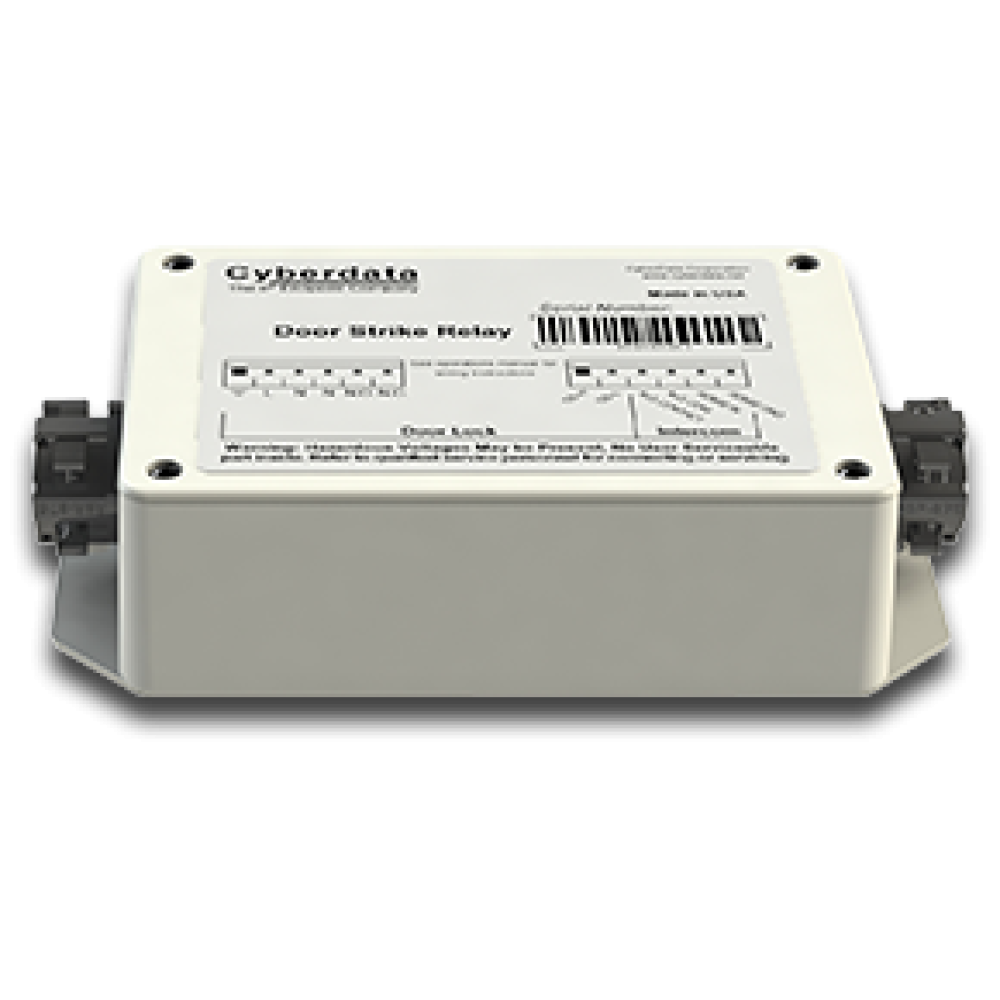

CyberData 011269 Door strike relay module

CyberData 011269 Door Strike Intermediate Relay Module

The CyberData 011269 is a Door Strike Intermediate Relay Module for CyberData Intercom products. The 011269 has a 4 wire interface, a 12 amp relay, and has opto-isolated sense input.

CyberData 011269 Overview

The CyberData 011269 connects CyberData Intercoms to an electronic door lock. Because of the high current side of the door strike, it requires a separately-wired relay and protection diode, which the 011269 provides.

The CyberData Door Strike Relay Module eliminates the need to source a separate relay and makes wiring an electronic door strike easier. Power is provided from the relay voltage.

CyberData 011269 Features and Functions:

• Direct connection to CyberData Intercom products
• 4 wire interface
• 12 Amp relay
• NO/NC contacts
• Opto-isolated sense input
• Power is provided from relay voltage
• Wall mounting
• Cable strain relief
• Lock status LED
