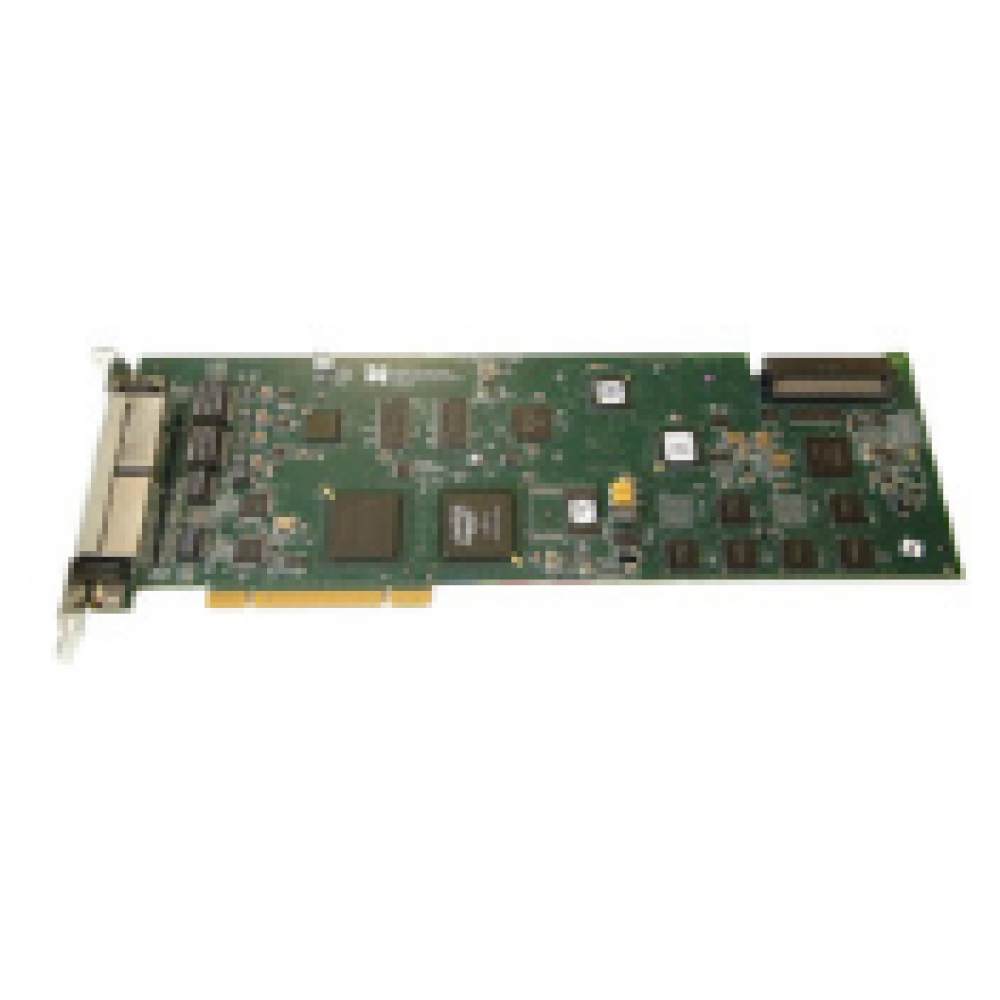

Dialogic CG 6060/11-2L/1TE Media Board by Sangoma (DISCONTINUED)

Dialogic CG 6060/11-2L/1TE Media Board by Sangoma

The Dialogic® CG Series Media Boards contains a universal port that supports both IP and TDM networks on a single platform that creates strong communications solutions for public telephone network, IP-only, and converged IP/circuit-switched environments.

Dialogic CG 6060/11-2L/1TE Media Board by Sangoma Overview

The Dialogic® CG Series Media Boards give developers the ability to select the most cost-effective board with the correct amount of processing power. The CG 6060/11-2L/1TE OCI contains a memory mapped interface for efficient block data transfers. It can also address and interrupts automatically configured by PCI BIOS (no jumpers or switches). The Dialogic® CG Series Media Boards provide full-duplex universal port capabilities, which can support a combination of voice play/record, tone detection/generation, echo cancellation, and voice compression, as well as trunking, fax, conferencing, and VoIP functions in a single PCI, CompactPCI, or PCI Express slot. The universal port feature eliminates the need to use multiple specialized boards. Using these boards with  Dialogic® NaturalAccess™ Software allows developers to build a broad range of telephony application on a single platform.

Dialogic CG 6060/11-2L/1TE Media Board by Sangoma Features

• Contains 128 MB of Control processor memory
• Bus compatibility: PCI Local Bus R2.2
• Bus speed: DC to 66 MHz
• Compatible with both 5.0 V and 3.3 V signaling environments
• NaturalAccess Software
• From 1,064 to 12,768 MIPS for media processing (model dependent)
• Supports interoperability with other boards in high-capacity systems
• 64 ms echo cancellation tail
