Digium G800 Octal T1/E1/PRI Gateway (Discontinued)

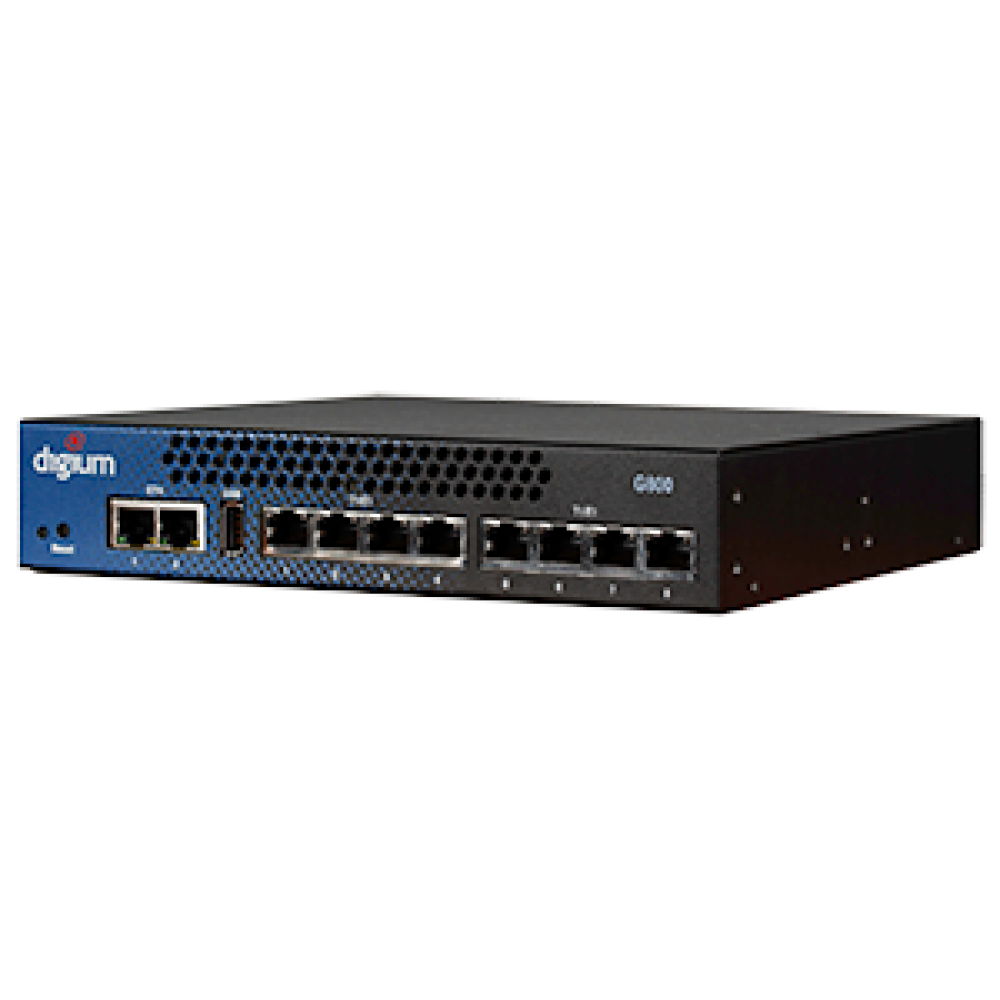

main product photo
The Digium G800 Octal T1/E1/PRI Gateway has been discontinued by the manufacturer. There are no comparable replacements at this time. Please call 1-800-398-8647 or chat with an expert for a recommendation.
Availability: Out of stock
SKU
02-115521
MPN
1G800F
The Digium G800 Octal T1 gateway allows you to bridge the PSTN to an IP PBX, SIP to a legacy analog PBX, or migrate from a legacy PBX to an IP PBX without installing a Digium TDM Card into your server. (1G800F )
Add to Wish List

Digium G800 T1/E1/PRI Gateway

The Digium G800 octal T1 gateway allows you to bridge the PSTN to an IP PBX, SIP to a legacy analog PBX, or migrate from a legacy PBX to an IP PBX without installing a Digium TDM Card into your server.

Digium G800 T1/E1/PRI Gateway Overview

Preserve precious server resources by taking the transcoding off the server and putting it into a standalone appliance. The Digium G800 gateway is easy to use and configure and can be much easier to deploy in your network than integrating a Digium card into your server. In addition, The Digium Gateway can be used with multiple servers simultaneously.

Digium G800 T1/E1/PRI Gateway Features:

  • Call Management Features:
  • -Automatic Call Type Detection: Voice/Modem/Fax
  • -Answer and Disconnect Supervision
  • -Trunk Group Support
  • -Dial Plan Support
  • -Call Routing Rules
  • -Call Routing Groups
  • -Pass Through Support for calls to toll free, local and emergency services numbers
  • -Automatic appending and stripping of digits to dialed numbers
  • -Caller ID name and number support
  • -Fax and Modem support
  • Technical Specifications:
  • -Eight 10/100/1000Base-T Ethernet connections
  • -Internal universal power supply for 100 – 240 VAC
  • -Dual RJ45 connector for Ethernet
  • -8 x T1/E1 Ports
  • -Echo cancellation
  • -Auto codec negotiation via SIP
  • IP Telephony:
  • -SIP (Support for multiple SIP endpoints)
  • -Audio Codecs
  • --G.729
  • --G.726
  • --G.711 (Coding Support for A-law and u-law)
  • --GSM-FR
  • --G.722
  • -Auto Codec Negotiation
  • -Fax and Modem Support (T.38 and G.711)
  • T1 Signaling:
  • -PRI Signaling protocols:
  • --National ISDN-1
  • --National ISDN-2
  • --4ESS (AT&T)
  • --5ESS (Lucent)
  • --DMS100 (Nortel)
  • --Q.SIG
  • T1 CAS :
  • --E&M
  • --E&M Wink
  • --Feature-Group-D (DTMF, MF)
  • --FXS Loop Start with Forward Battery Disconnect
  • --FXS Loop Start
  • --FXS Ground Start
  • --FXO Loop Start with Battery Disconnect Supervision
  • --FXO Loop Start
  • --FXO Ground Start
  • E1:
  • -PRI (EuroISDN or Q.SIG)
  • DTMF Signaling via RFC 2833
More Information
SKU 02-115521
Shop By Brand Digium
UPC 797734602043
Model G800-DIS
MPN 1G800F
MSRP $3,995.00
Manufacturer Warranty 1 Year
Digital Signaling Type T1, E1, PRI
# of Digital Ports 8
# of Ethernet Ports 8
Ethernet Port Speeds 10/100/1000 Gigabit
Protocols Supported SIP
Echo Cancellation Yes
Provisioning Options Auto Provisioning
Mounting Option Rackmount
Voice Signaling Methods AT&T 5ESS, DMS100, ETSI/EURO ISDN, FXO/FXS Loop Start, FXS Ground Start, ISO QSIG, QSIG Feature Transparency, T1 CAS, PRI
