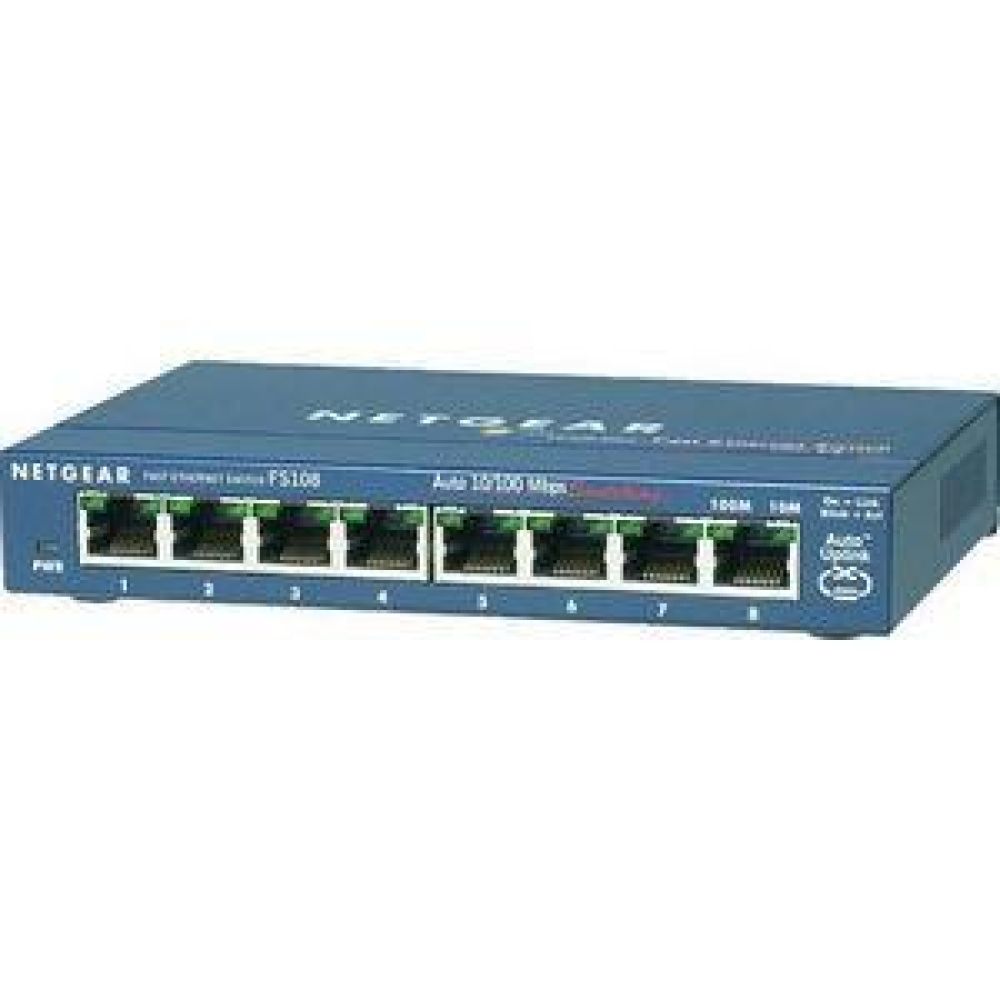

Netgear FS108NA ProSafe 8-Port 10/100 Desktop Switch
Netgear FS108NA is an 8-port switch with high-speed 10/100 auto sensing technology and 200 Mbps of dedicated bandwidth in each port. This switch has an easy installation design that does not require software configuration.
Netgear FS108NA ProSafe 8-Port 10/100 Desktop Switch
The FS108NA is the perfect solution for users looking for an affordable and reliable switch with the added benefit of quiet operation with its fanless design. This compact and simple to use switch employs auto negotiation that takes care of the speed and duplex, as well as Auto Uplink, which handles the MDI/MDI-X connection. Traffic is forwarded automatically with flow control. This switch is ideal for conference rooms, study groups or small offices. It can either be placed on a flat surface or wall mounted out of the way.
Netgear FS108 Features and Specifications
Network Ports
- FS108: Eight (8) 10/100 Mbps auto speed-sensing UTP ports
Standards Compliance:
- IEEE 802.3 10BASE-T Ethernet
- IEEE 802.3u 100BASE-TX Fast Ethernet
- IEEE 802.3x Full-duplex Flow Control
Performance Specifications
- Forwarding modes: Store-and-forward
- Bandwidth:
- FS108: 1.6 Gbps
- Network latency: Less than 20 µs for 64-byte frames in store-and-forward mode for 100 Mbps to 100 Mbps transmission
- Buffer memory:
- FS108: 96 B
- Address database size:
- FS108: 1,000
- Addressing: 48-bit MAC address
- Mean time between failures (MTBF):
- FS108: 168,000 hours (~19 years)
- Acoustic Noise: 0 dB
Status LEDs
- Power
- Link, speed, and activity indicators built into each
- RJ-45 port
AC Power
- FS108: 7.5 W (7.5V DC, 1A)
Warranty
- Switch: NETGEAR Lifetime Warranty †
- Power adapter: NETGEAR 2-year Warranty
Package Contents
- 10/100 Desktop Switch
- Wall-mount kit
- AC adapter
- Quick Installation Guide
- Warranty/support information card
